Understanding how gases interact with catalyst surfaces is key to improving catalytic performance in industrial and research applications. Chemisorption analysis enables precise measurement of active sites and adsorption strength, directly influencing reaction efficiency and selectivity.

What Is Chemisorption in Heterogeneous Catalysis?

Chemisorption—the formation of chemical bonds between gas-phase molecules and surface  atoms—is the foundational step in heterogeneous catalysis. On supported metal catalysts, this  process occurs on small metal crystallites, nanoparticles, and single atoms anchored to high  surface area oxide materials. These chemisorbed species react with adjacent adsorbed  molecules or gas-phase reactants to generate catalytic products.

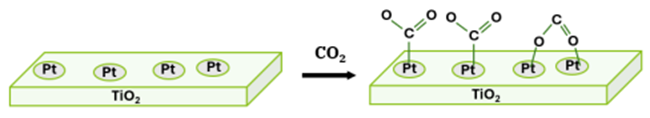

Figure 1 shows a schematic diagram of the chemisorption step in a typical CO₂ hydrogenation  reaction with Pt/TiO₂ catalyst.⁽¹˒²⁾ Pt surface sites act as anchors for CO₂ chemisorption until  the species react with H₂ and desorb.

Figure 1: Scheme depicting gas-phase CO₂ chemisorption onto solid Pt/TiO₂ surface

The chemisorption behavior of a catalyst directly impacts both the reaction rate and selectivity toward desired products. Understanding and quantifying chemisorption is thus essential for both catalyst design and performance optimization. Optimal catalytic performance requires a balance between the strength and quantity of chemisorbed species:

✓ Binding Strength:

o Too strong — hinders product  formation as molecules adhere too tightly.

Figure 2: Representative volcano curve showing the relationship between catalytic activity and reactant adsorption strength

o Too weak — reactants desorb before reacting.
o Moderate — yields the highest catalytic activity, illustrated by the classic volcano  curve in Figure 2 for reactions like ammonia synthesis.

✓ Quantity of Sites:

o The number of chemisorbed species correlates to the number of surface sites  available, which can be used to quantify surface chemical properties of the catalyst

Chemisorption analyzers for catalyst characterization

Chemisorption Measurement Methods (Static, Pulse, TPD, TPR, TPO)

Quantitative assessment of chemisorption requires techniques that can evaluate both the quantity and strength of adsorption sites, while also describing qualitative chemical properties. The broad range of chemisorption methods is shown in Table 1.

Method	Measurement Focus
Static/Volumetric Chemisorption	Equilibrium uptake of gas molecules (closed system)
Pulse Chemisorption	Uptake of calibrated gas pulses
Temperature programmed desorption (TPD)	Desorption behavior upon heating – provides both site count and adsorption strength
Temperature programmed reduction (TPR)	Hydrogen consumption under H₂/inert gas flow – provides metal dispersion, metal-support interactions, metal oxidation states
Temperature programmed oxidation (TPO)	Desorption behavior of oxidized surface species upon heating – quantifies carbon deposits, oxidation states
Temperature programmed surface reaction (TPSR)	Probe molecules react on surface, product desorption detected upon heating – describes active sites, reaction mechanisms, and kinetics
Steady-state isotopic transient kinetic analysis (SSITKA)	Steady-state conditions achieved with unlabeled reactant gas, then switched to isotopically labeled gas. Desorbed isotopically labeled products detected by mass spectrometry – describes kinetics and reaction intermediates

Explore chemisorption systems for TPR, TPD, and TPO

How Chemisorption Experiments Work (Step-by-Step Procedure)

A standard chemisorption experiment involves:

✓  Sample Preparation:

o Catalyst treated to yield clean surface sites.
o Introduction of the chemisorbing gas (typically at ambient temperature).

✓ Gas Switching & Flushing:

o Replace chemisorbing gas with inert gas.

✓ Controlled Heating:

o Linear temperature ramp.
o Desorption of chemisorbed species occurs at characteristic temperatures.

✓ Detection:

o Quantify desorbed species using calibrated detectors.
o Calculate site quantity and evaluate adsorption strength.

Example:

H₂ chemisorption was used by Li et al. on Ni/SiO₂ catalysts for ammonia decomposition. TPR  and TPD experiments revealed both the number of available Ni sites and the oxidation state of  surface Ni species.⁽³⁾

Chemisorption Analyzers by AMI (AMI-300 & AMI-400 Platforms)

AMI Chemisorption Analyzers automate the entire process:

✓ Precise flow control and gas switching.

✓ Programmable temperature ramps.

✓ Quantitative detection and data analysis.

✓ Fully customizable experiment parameters via user-friendly software.

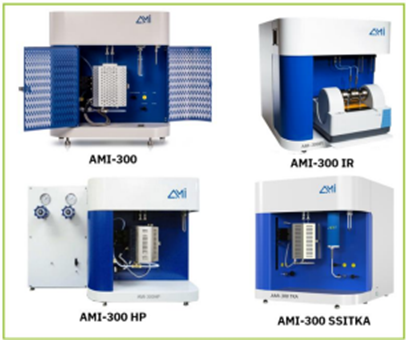

The flagship AMI-300 platform delivers reproducible, operator-independent measurements,  and specialized models are available for advanced chemisorption experiments, empowering  researchers to optimize catalysts  and advance reaction  engineering. The AMI-300 IR enables real-time catalyst  analysis with Fourier transform  infrared spectroscopy (FTIR). The  AMI-300 HP is engineered for  industrially relevant high pressure conditions up to 100  bar, and the AMI-300 SSITKA is  integrated with steady-state  isotopic transient kinetic analysis  capabilities, as well as traditional  chemisorption experiments (TPD,  TPO/R, TPSR).

AMI-300 Series
Unique features	Fully automated, highly customizable
Functions	Pulse chemisorption, temperature-programmed reduction (TPR), temperature-programmed oxidation (TPO), temperature programmed desorption (TPD), temperature-programmed surface reaction (TPSR), flow BET surface area analysis, steady state isotopic transient kinetic analysis (SSITKA)
Sample loading	0.1–5g
Temperature range	RT – 1200 °C with rapid cooling
Ramp rate	0.1–50 °C/min
Operating pressure	Ambient – 100 bar (AMI-300 HP)
Thermocouples	Bed thermocouple, furnace thermocouple
Gas flow rates	2–100 sccm
Reactor types	Quartz U-tubes (6mm, 8mm, 10mm)
Detector	TCD (sensitive tungsten-rhenium filament)
Mass flow controllers	3 (4 optional)
Optional add-ons	FTIR (AMI-300 IR), vapor generator, mass spectrometer, FID, methanator reactor, harsh chemistry, SSITKA (AMI-300 SSITKA), custom sample holders

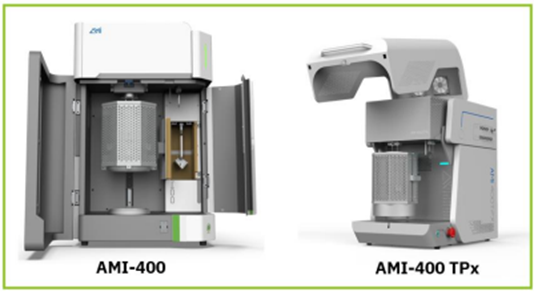

The AMI-400 platform expands on the previous model with improved precision and industry leading safety features. In addition, the compact AMI-400 TPx offers the same automation  capabilities with outstanding economic efficiency and space-saving design.

AMI-400 Series
Unique features	Fully automated smart gas interface; integrated safety features including exhaust fan, alarm system, and self-locking door; high precision thermocouples and MFCs
Experiments	Pulse chemisorption, temperature-programmed reduction (TPR), temperature-programmed oxidation (TPO), temperature-programmed desorption (TPD), temperature-programmed surface reaction (TPSR), flow BET surface area analysis
Sample loading	0.1–5g
Temperature range	RT – 1200 °C, -130 °C – 1100 °C (optional)
Ramp rate	0.1–50 °C/min
Operating pressure	Ambient
Thermocouples	Bed thermocouple, furnace thermocouple, overtemperature protection thermocouple
Gas flow rates	0–100 sccm (+/- 1% accuracy)
Reactor types	Quartz U-tubes (6mm, 8mm, 10mm)
Detector	TCD (sensitive tungsten-rhenium filament)
Mass flow controllers	1 (2–4 optional)
Optional add-ons	Vapor generator, mass spectrometer, FID

Conclusion: Why Chemisorption Data Improves Catalyst Performance

Chemisorption is an integral reaction step in heterogeneous catalysis, and it can be employed  as a powerful tool for detailed catalyst analysis. Through advanced, automated tools like the  AMI Chemisorption Series, scientists can describe the elemental, surface-level interactions driving catalyst performance and use that understanding to implement efficient catalyst  design.

If you’re selecting a system for catalyst characterization, explore AMI’s chemisorption analyzers or request guidance from our team via the Contact Us page.

References

(1) Hu, X.; Xu, D.; Jiang, J. Strong metal-support interaction… Angew. Chem. Int. Ed. 2025, 64, e202419103.

(2) Su, G.-X.; Wu, M.-Y.; Wang, W.-W.; Jia, C.-J. Pt nanoparticles… ACS Appl. Nano Mater. 2025, 8, 9164–6176.

(3) Li, S.; Liu, X.; Guo, Y.; Wang, Y. Highly active and stable Ni@SiO2… Fuel 2024, 368, 131543.

Send Us A Message

Frequently Asked Questions

1. What is chemisorption and why is it important in catalysis?

Chemisorption occurs when gas molecules form chemical bonds with catalyst surface atoms, creating the active sites necessary for catalytic reactions to proceed efficiently.

2. What information can chemisorption experiments provide about a catalyst?

They reveal the number of active surface sites, adsorption strength, metal dispersion, oxidation states, and surface reaction behavior, all critical for catalyst optimization.

3. What is the difference between TPD, TPR, and TPO experiments?

TPD measures how adsorbed species desorb with temperature, TPR studies catalyst reduction behavior under hydrogen flow, and TPO evaluates oxidation and carbon deposit removal during heating.

4. How does automation improve chemisorption measurements?

Automated systems ensure precise gas control, accurate temperature programming, reproducible results, and operator-independent experiments, improving data reliability.

5. Which AMI system should I choose for catalyst characterization?

The choice depends on research needs—AMI-300 systems support advanced and high-pressure applications, while AMI-400 platforms offer enhanced safety, precision, and compact solutions for routine laboratory work.
