AMI-Sync Series

Synchronous, High-Throughput BET & Mesoporous Analysis

● Synchronous multi-port design enables simultaneous BET and porosity measurements across 1, 2, 4, 8, or 12 analysis stations.

● Perform 4 BET measurements in approximately 20-30 minutes under fully optimized conditions.

● BET repeatability of ≤ +1.0% ensures high accuracy and reproducibility.

● Flexible configuration with optional degassers, multi-channel gas inlets, and thermostatic water baths for full system integration.

Show Product
Matrix 1000 Series

Modular Multi-Station Surface Area & Pore Analysis System

● Configure mesopore, micropore, or mixed-mode stations in a single unit to match experimental needs

● Surface area can be measured down to 0.05 m²/g (mesopore) and 0.0005 m²/g (micropore), Pore size ranges from 0.35 to 500 nm

● Run simultaneous, independent analyses without cross-interference

● Expand modularly to a total of up to 3 connected units (12 stations) for maximum throughput and flexibility

● Harsh Chemistry Option: Equipped with a passivation coating and seals upgraded to FFKM for aggressive or corrosive chemistries.

● Built-in, high-temperature degassing furnace with programmable ramp/soak control and real-time pressure feedback

Show Product
BTSorb 100 Series

Breakthrough Curve and Mass Transfer Analyzer

● Performs breakthrough curve testing and multi-component competitive adsorption.

● Optional analysis of mass transfer performance, including diffusion coefficients via chromatography and ZLC methods.

● Supports PSA, TSA, and liquid-phase sorption experiments.

● Stable, constant-temperature system for reproducible results.

● Operates up to 100 bar for high-pressure gas separations.

● Optional configurations include vapor handling, integrated mass spectrometry, and sulfur-resistant corrosion protection.

Show Product

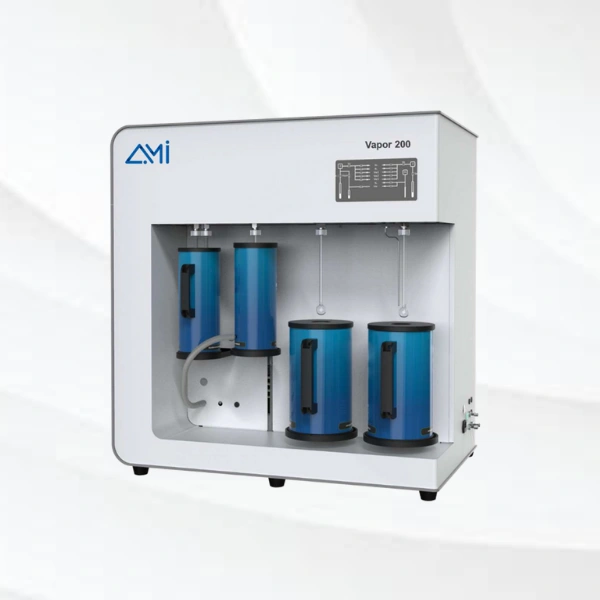

Vapor Series

Volumetric Vapor Adsorption Analyzer

● Simultaneously perform vapor adsorption, specific surface area, and pore size distribution measurements.

● Independent high-vacuum analysis pathways for vapor, BET surface area, and micropore characterization.

● Analyze up to 2 samples at once (1 vapor, 1 micropore) with fully independent stations.

● Configurable with 1 or 2 analysis stations to meet varying lab needs.

● Includes cold trap, integrated constant-temperature valve box, and illuminated valve status indicators.

Show Product

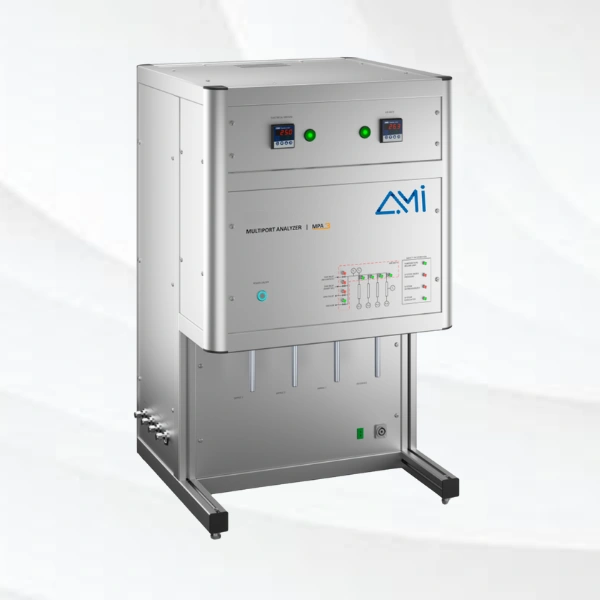

RuboSORP MPA Series

Automated High-Pressure Gas Sorption Analysis – Precise, Flexible, Scalable

● Fully automated system for characterizing gas sorption under high-pressure conditions.

● Wide pressure range: vacuum to 200 bar.

● Broad temperature control: –196°C (optional LN₂ cooling) to 500°C; custom configurations available.

● Configurable with 1, 2, or 3 independent analysis stations.

● Optional BET surface area analysis capability for added versatility.

● Up to 2 additional volume-configurable chambers for optimized kinetic measurements.

● Supports multiple test modes: PCT (Pressure–Composition–Temperature), dynamic adsorption, and both PCT/dynamic cycling tests.

Show Product
Meso 112/222

Optimized for Mesoporous Characterization and Independent Station Control

● Designed for precise specific surface area and mesoporous structure characterization.

● Available with 2 analysis ports, each with in-situ degassing capability.

● Simultaneously analyze different adsorbate gases across up to 2 stations.

● Each port features an independent gas inlet (excluding Meso 112 model).

● BET repeatability of ≤ ±1.0% ensures consistent, high-precision results.

Show Product
Meso 400

High Throughput Mesopore Characterization

● Designed for precise specific surface area and mesoporous structure characterization.

● Balances high-throughput testing with independent station control.

● Available with 4 analysis ports, each with in-situ degassing capability.

● Simultaneously analyze different adsorbate gases across up to 4 stations.

● Each port features an independent gas inlet.

● BET repeatability of ≤ ±1.0% ensures consistent, high-precision results.

Show Product
Micro 100

High-Resolution Micropore Characterization

● Available in multiple models to support diverse lab-throughput needs.

● 2 analysis stations with high-vacuum pump and up to 3 pressure sensors per station.

● Capable of measuring adsorption isotherms down to P/P₀ = 10⁻⁸ for high-resolution micropore characterization.

● Simultaneous testing with different adsorbate gases across all active stations.

● Integrated design supports up to 2 degassing ports, 2 in-situ, and 1 cold trap within a single cabinet.

● BET repeatability of ≤ ±1.0% ensures consistent, high-precision results.

Show Product
