Temperature Programmed Reduction (TPR): Complete Guide to Catalyst Analysis

Temperature-Programmed Reduction (TPR) is used to investigate the reduction behavior of catalysts and other reducible materials under controlled heating conditions. During a typical H₂-TPR experiment, a sample is heated in a hydrogen-containing gas stream while the detector monitors changes associated with hydrogen consumption. The resulting profile helps researchers evaluate reduction temperatures and catalyst reducibility.

The resulting TPR profile provides information about reduction temperatures, hydrogen consumption, and potentially overlapping reduction processes. Interpreting these results requires consideration of the experimental conditions, including heating rate, hydrogen concentration, gas flow, and sample characteristics.

What Temperature Programmed Reduction Measures and Why It Matters

Temperature programmed reduction is widely used in catalyst characterization by monitoring how a reducing agent, commonly hydrogen diluted in an inert gas, is consumed as temperature increases linearly.

In a typical temperature programmed reduction experiment, the catalyst sample is exposed to a flowing mixture of a reducing agent, such as hydrogen diluted in an inert gas, while the temperature is increased linearly.

For a broader view of how TPR fits alongside BET surface area analysis, chemisorption, TPD, and TPO, see AMI’s complete catalyst characterization workflow.

How to Interpret an H₂-TPR Profile: Peak Temperature, Area, and Shape Copy

Figure 1 presents a representative TPR profile for a 10% NiO/SiO₂ catalyst using a 10% H₂/Ar gas mixture at a flow rate of 30 mL/min and a linear heating rate of 20 K/min.

The H₂-TPR profile shown in Figure 1 illustrates how the reduction-related detector signal changes as the sample temperature increases. Interpreting the profile requires examining peak temperature, integrated peak area, and peak shape.

Peak temperature (Tm) represents the temperature at which the reduction-related signal reaches its maximum. Under comparable experimental conditions, a lower peak temperature may indicate that a material is more readily reduced.

Peak area represents the integrated detector response. After appropriate baseline correction and detector calibration, it can be used to quantify hydrogen consumption, taking the relevant reduction stoichiometry into account.

Peak shape and number can provide clues about overlapping reduction processes or different reducible species. However, individual peaks should not be assigned to specific chemical species based on their positions alone.

Heating rate, hydrogen concentration, gas flow, and sample characteristics can influence the observed profile. These experimental conditions must be considered when interpreting or comparing H₂-TPR results.

 The resulting profile provides insights into both the ease of reducibility (indicated by the temperature at the reduction peak maximum) and the extent of reducibility (reflected by the signal area).

A comprehensive description of TPR methodology can be found in Temperature-Programmed Reduction for Solid Materials Characterization by A. Jones and B.D. McNicol (Marcel Dekker, Inc., 1986).

Figure 1. Temperature-programmed reduction (TPR) profile of a 10% NiO/SiO₂ catalyst (10% H₂/Ar, 30 mL/min, heating rate 20 oC/min).

Why Do H₂-TPR Results Differ Between Laboratories? Copy

H₂-TPR results obtained from different laboratories may vary even when researchers investigate similar catalyst materials. Differences in heating rate, hydrogen concentration, carrier gas flow, sample mass, particle size, and detector calibration can influence the observed reduction profile.

These factors may affect peak temperature, signal intensity, and the separation of overlapping reduction events. As a result, differences between TPR profiles do not necessarily indicate differences in catalyst composition or intrinsic reducibility.

For reliable comparisons, researchers should document the experimental conditions, use consistent calibration and baseline-correction procedures, and interpret peak positions alongside hydrogen-consumption data.

Recommended Instruments for Temperature Programmed Reduction, TPD, and TPO

If you’re planning TPR, TPD, or TPO work, explore AMI’s TPR and chemisorption analyzers to compare systems for temperature-programmed analysis and catalyst characterization. For a dedicated platform, review the AMI-300 configuration options or contact AMI for application support.

Key Experimental Parameters That Shift the TPR Peak (Tm)

How Heating Rate and Hydrogen Concentration Affect TPR Peak Temperature

(First-Order Reduction)

Monti and Baiker⁽¹⁾ developed an equation that relates the peak temperature (Tm) to the linear heating rate and hydrogen concentration for a first-order reduction process.

where:

Tₘ is the temperature at maximum signal;

[H₂] is the average hydrogen concentration;

rT is the linear heating rate;

Eₐ is the activation energy of reduction;

R is the gas constant; and

A is a pre-exponential factor.

The Monti–Baiker relationship describes how the temperature of the reduction maximum can depend on heating rate, hydrogen concentration, and kinetic parameters under the assumed reaction model. It should not be treated as a universal equation for every catalyst or reduction mechanism.

Quantifying hydrogen consumption is a separate process that requires detector calibration, baseline correction, integration of the reduction signal, and consideration of reaction stoichiometry. Researchers should distinguish measured hydrogen consumption from predictions based on kinetic models.

The equation predicts a decrease in Tm with increasing hydrogen concentration and with decreasing heating rate. It also predicts that the observed temperature maximum is independent of flow rate—a prediction that is not supported by experimental observations.

How to Use the Equation to Compare Different Conditions

The primary value of this equation lies in its ability to compare data obtained under different conditions. For example, Gentry and coworkers ⁽²⁾, in a study of CuO, determined Ea to be approximately 67 kJ/mol. Using a flow rate of 20 mL/min, a heating rate of 6.5 K/min, and an H₂ partial pressure of 0.1, they observed Tm = 280ºC. Applying their results to equation (1), it becomes possible to predict Tm for other experimental conditions.

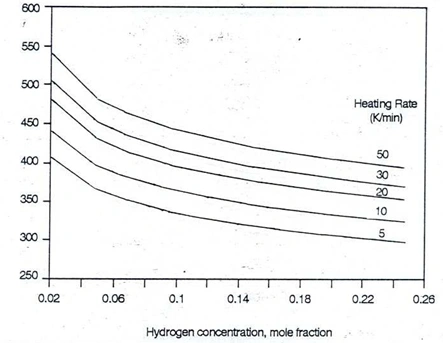

Figure 2 illustrates how the predicted Tm for CuO would vary with different hydrogen concentrations and linear heating rates according to equation (1).

Flow Rate Effects: Practical Guideline

The effects of flow rate are more complex and less easily predicted. Intuitively, one would expect Tm to decrease with increasing flow rate, and this trend is confirmed in the literature.

Monti and Baiker [1] observed a decrease in Tm of 15°C for supported NiO when the total flow rate was increased from 30 mL/min to 60 mL/min. Similarly, in TPR studies of CuO using 5% H₂ and a heating rate of 20 K/min, increasing the flow rate from 30 mL/min to 80 mL/min resulted in a Tm decrease of 15°C. As a general guideline, a doubling of the flow rate typically results in a Tm decrease of approximately 10–20°C.

Particle Size and Reduction Mechanism

Because TPR is a bulk process, not all particles are exposed to the reducing gas simultaneously, making Tm dependent on particle size. However, predicting this dependence is complicated by the specific reduction mechanism involved.

Lemaitre ⁽³⁾ examined this dependence across different reduction mechanisms, highlighting two that are especially relevant for catalysis:

       Phase-boundary-controlled reduction, typical of bulk oxides

       Nucleation-controlled reduction, typical of supported metals

Interestingly, the predicted relationship between Tm and particle size varies with the reduction mechanism. For bulk oxides, Tm increases with particle size, whereas for supported metals, Tm decreases as particle size increases.

Summary of Combined Effects

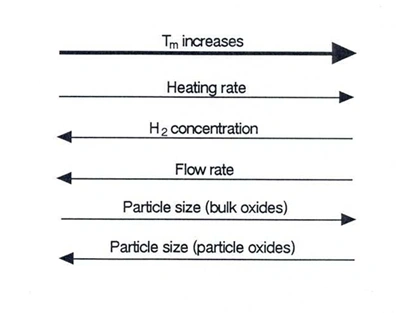

These various factors—and their combined effects on the TPR profile—are summarized in Figure 3. All should be carefully considered when comparing data from different laboratories or experimental setups.

Experimental variables such as heating rate, hydrogen concentration, flow rate, and particle size can significantly affect TPR results. The AMI-400 and AMI-300 platforms help researchers maintain consistent test conditions and generate reproducible reduction profiles for catalyst development, quality control, and academic research.

Benefits Include:

Automated TPR, TPD, and TPO measurements
High-sensitivity thermal conductivity detection
Precise gas flow and temperature control
Advanced data analysis software
Flexible configurations for catalyst characterization laboratories

Request a Quote | Talk with an Application Specialist

References

(1) A.M. Monti and A. Baiker, J. Catal. 83, 323 (1983).

(2) J. Gentry, N.S. Hurst, and A. Jones, J. Chem. Soc., Faraday Trans. I 75, 1688 (1979).

(3) L. Lemaitre, in Characterization of Heterogeneous Catalysts, F. Delannay (Ed.), Marcel Dekker, Inc.

Send Us A Message

Frequently Asked Questions

1. What does a lower Tm usually indicate?

In general, a lower peak temperature (Tm) suggests the material reduces more easily under the tested conditions.

2. Why does heating rate shift the TPR peak?

Changing heating rate affects the time available for reduction at each temperature, which can shift the observed peak temperature.

3. Does flow rate matter in real experiments?

Yes. While some models predict no dependence, experimental data commonly show Tm decreases as flow rate increases.

4. Why is it hard to compare TPR data across papers?

Because parameters like heating rate, gas composition, flow rate, and particle size can all shift the profile, making direct comparisons unreliable without normalization.

5. Why is it difficult to directly compare TPR profiles from different studies or laboratories?

Direct comparison of TPR data is challenging because key experimental parameters—such as heating rate, hydrogen concentration, gas flow rate, and particle size—can significantly shift the reduction peak temperature (Tm) and alter the profile shape. Without matching or normalizing these conditions, differences in TPR profiles may reflect experimental setup rather than intrinsic catalyst reducibility.
