• Gas Adsorption Analysis

BET Surface Area Analyzers for Research and QC Labs

Explore AMI BET surface area analyzers and gas sorption systems for measuring specific surface area, adsorption isotherms, pore volume, and pore size distribution. Compare instrument configurations for materials research, laboratory testing, and industrial quality control.

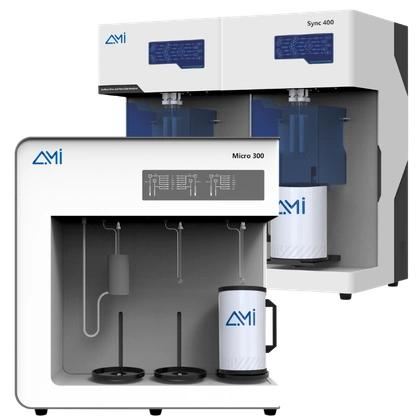

BET Surface Area Analyzers (17)
BET Surface Area Analyzers (17)
lab

High-precision BET surface area measurement

Advanced pore size and adsorption analysis

Designed for research and industrial laboratories

Overview

What Is a BET Analyzer and How Does It Work?

Essential instruments for measuring the specific surface area of powders, porous materials, and catalysts using gas adsorption techniques.

A BET surface area analyzer is an analytical instrument used to determine the specific surface area of powders, catalysts, porous materials, and other solids through gas adsorption measurements.

The Brunauer–Emmett–Teller (BET) method uses adsorption data collected across an appropriate relative-pressure range to estimate monolayer adsorption capacity and calculate specific surface area. Nitrogen at 77 K is commonly used, while other adsorbate gases may be selected according to the material and measurement requirements.

Depending on the instrument and analysis method, gas sorption systems can also provide adsorption–desorption isotherms, pore volume, pore size distribution, and micropore characterization.



AMI provides static volumetric and dynamic-flow BET surface area analyzers for different laboratory workflows. Choose a configuration based on the sample material, required surface area and pore measurements, number of samples, and sample preparation needs. Compare the systems below or contact AMI for help reviewing the specifications.

BET Surface Area Analyzers (9)

Why It Matters

Why BET Surface Area Measurement Matters

Surface area plays a critical role in determining how materials behave in chemical reactions, adsorption processes, and energy systems.

flash (1)

Increased Storage & Separation Capability

Higher surface area enhances the ability to capture, store, and separate gases, critical for applications like CO₂ capture and hydrogen storage.
clock

Enhanced Adsorption Capacity

Materials with greater surface area can capture more gases, liquids, or contaminants — critical for filtration and purification systems.
growth

Better Material Performance

Surface area directly impacts the performance of catalysts, battery electrode materials, and next-generation filtration systems.
quality (1)

Consistent Quality
Control

BET measurements ensure uniform material properties in industrial production, enabling reliable batch-to-batch consistency.

Industries Served

Applications of BET Surface Area Analyzers

BET surface area analyzers are used across multiple industries where surface properties influence performance and efficiency.



Catalysis and Petrochemicals

Optimize catalyst efficiency and reaction performance.

Energy Storage and Batteries

Analyze electrode materials and improve electrochemical performance for next-generation energy storage.

Pharmaceuticals

Characterize powders for drug formulation and delivery, ensuring consistent dosage and bioavailability.

Environmental & Adsorption

Evaluate materials used for gas capture, filtration, and purification in environmental applications.

Advanced Materials & Nanotechnology

Understand surface and pore structures in nanomaterials, MOFs, and advanced porous systems. For an applied example of surface area characterization in advanced ceramic materials, explore AMI’s silicon nitride powder surface area study.

Key industries served with precise BET surface analysis
Selecting the right BET surface area analyzer requires more than comparing instrument specifications. Laboratories should consider the types of materials being tested, whether BET surface area alone is sufficient, the need for full pore size characterization, and the number of samples processed each day. AMI Instruments offers multiple configurations for routine quality control, materials research, and advanced gas adsorption analysis.
Laboratory Requirement Recommended AMI Instrument Best-Suited Application
Routine BET and mesopore testing AMI Sync Series Routine testing, QC, and multi-station analysis
Rapid BET measurements using dynamic flow Surface DX Series High-throughput industrial quality control
Configurable surface area and advanced pore analysis Matrix 1000 Series Advanced materials research and flexible laboratory workflows
High-resolution micropore analysis Micro 300 Series MOFs, zeolites, activated carbon, and microporous materials
The best configuration depends on sample preparation requirements, analysis throughput, supported adsorbate gases, and the level of pore characterization required. Need Help Choosing the Right BET Analyzer? Not sure which system best fits your laboratory? Share your sample type, measurement requirements, and expected throughput with AMI Instruments. Our specialists can help you identify a suitable BET surface area analyzer configuration for your research or quality control workflow.
Our Instruments

BET Surface Area Analyzers from AMI Instruments

Key Considerations When Buying a BET Surface Area Analyzer

Choosing BET analysis equipment for a research or quality control laboratory involves evaluating measurement capabilities alongside operational requirements. For full isotherms, micropore analysis and pore size distribution, see our complete guide to gas adsorption analyzers.

Measurement Method and Analytical Capabilities

Static volumetric gas adsorption systems are suitable for laboratories requiring detailed adsorption isotherms, BET surface area measurement, and pore size characterization. Dynamic flow BET instruments can be a practical choice for routine surface area testing where high sample throughput is the main priority.

Sample Throughput and Preparation

The number of analysis stations, expected samples per day, and degassing workflow all influence laboratory productivity. Proper sample preparation is essential for reliable BET results. Laboratories processing larger sample batches may also benefit from dedicated sample preparation degassing systems. Sample preparation, degassing conditions, and storage can influence BET results. Learn more in AMI’s guide to factors affecting amorphous silica surface area measurements.

BET Analyzer Pricing and Configuration

BET surface area analyzer pricing varies based on the instrument configuration, number of analysis stations, measurement capabilities, vacuum system, and optional accessories. Laboratories should evaluate total operating requirements rather than instrument price alone.

AMI Instruments can help identify an appropriate system based on sample type, analytical methods, laboratory capacity, and budget considerations.

Compare AMI gas adsorption and BET surface area analyzers for different laboratory requirements, including routine quality control, high-throughput testing, mesopore analysis, and advanced micropore characterization. Available systems differ in measurement method, analysis stations, sample throughput, and supported pore analysis techniques.



Methodology

How to Choose the Right BET Surface Area Analyzer

Choosing the right BET surface area analyzer starts with your laboratory’s measurement goals. Consider the type of material, required pore analysis, number of samples, and workflow before comparing instrument configurations.



BET Surface Area Measurement Techniques

BET surface area analyzers use advanced gas adsorption techniques to provide comprehensive surface and pore characterization.



BET Surface Area Analysis in Real Laboratory Applications

Instrument selection is easier when laboratories can evaluate real measurement workflows and application data. AMI Instruments provides technical studies covering surface area analysis, pore characterization, measurement repeatability, and sample preparation.

These technical resources help researchers and quality control teams assess measurement methods before selecting an analytical instrument.

BET Method

The foundational technique — determines specific surface area based on monolayer gas adsorption using the Brunauer–Emmett–Teller model.

Langmuir Surface Area

Used for materials with uniform adsorption surfaces, assuming ideal monolayer adsorption under equilibrium conditions.

BJH Pore Size Distribution

Analyzes mesoporous structures from adsorption-desorption data, providing detailed pore size and volume distribution profiles.

t-Plot Analysis

Separates micropore surface area from external surface area, enabling precise characterization of complex porous materials.

DFT Analysis

Advanced density functional theory modeling for complex pore structures, delivering high-resolution pore size distributions across micro and mesopore ranges.
BET Surface Area Analyzers (8)

Key Benefits

Advantages of BET Surface Area Analyzers

From research-grade precision to industrial throughput — our analyzers deliver on every front.

target (1)

High Measurement Accuracy

Provides precise surface area data for both research and industrial use, with repeatability ≤1.0% RSD across a broad measurement range.
analysis (3)

Surface Area and Pore Characterization

Depending on the analyzer configuration and selected analysis method, AMI gas sorption systems can provide BET surface area, adsorption–desorption isotherms, and complementary pore size and volume information.
connection

Wide Material Compatibility

Suitable for powders, porous materials, catalysts, and nanomaterials — from activated carbon to pharmaceutical excipients and MOFs.
guarantee (1)

Reliable and Reproducible Results

Ensures consistent data across multiple analyses — essential for QC workflows and longitudinal programs requiring long-term data integrity.

Why AMI

Why Choose AMI Instruments

AMI Instruments develops advanced BET surface area analyzers designed to deliver reliable and high-precision gas adsorption measurements for laboratories worldwide.


● Advanced gas adsorption technology



● Flexible multi-station analyzer systems

● Automated measurement and reporting

● Designed for research and industrial applications

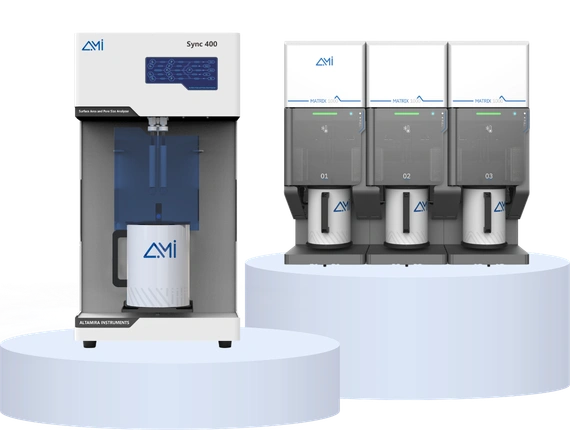

BET Surface Area Analyzers (15)

Get Started

Start Your BET Surface Area Analysis

Accurate surface area measurement is essential for understanding and optimizing material performance. AMI Instruments provides advanced BET surface area analyzers that deliver reliable and reproducible results for research, development, and quality control.

FAQs

Frequently Asked Questions

BET surface area analyzers are used to measure the surface area of materials by analyzing gas adsorption on their surfaces. This data is critical for optimizing catalysts, batteries, pharmaceuticals, and filtration materials.

BET analyzers are used with catalysts, battery electrode materials, activated carbon, pharmaceuticals, zeolites, MOFs, and nanomaterials — virtually any solid with measurable surface area.

Nitrogen is the most commonly used gas for BET analysis, typically at 77K. For very low surface area materials, krypton is used instead due to its lower saturation pressure and improved sensitivity.

BET analysis estimates specific surface area using a multilayer adsorption model over a suitable relative-pressure range. The Langmuir model assumes monolayer adsorption on an idealized surface. The appropriate interpretation depends on the material, adsorbate, and experimental data; microporous materials may require additional characterization methods.

The cost of a BET surface area analyzer depends on the measurement method, number of analysis stations, pore analysis capabilities, vacuum configuration, and optional accessories. AMI Instruments offers configurable BET analysis systems for routine laboratory testing and advanced materials research. Contact AMI for a quotation based on your measurement requirements.

Quality control laboratories often prioritize repeatability, automated operation, and sample throughput. Research laboratories may require advanced gas adsorption methods, flexible configurations, and detailed micropore analysis. AMI Sync and Surface DX support different routine testing workflows, while Matrix 1000 and Micro 300 provide capabilities for more advanced characterization requirements.

BET Analyzer
Explore Our BET Surface Area Analyzers High-precision gas adsorption systems for advanced material characterization
