Solid adsorbents are often evaluated in laboratories under dry, controlled conditions. Industrial gas streams, however, are rarely dry. Moisture is present in coal bed methane recovery, flue gas treatment, VOC removal, ethylene purification, and many other gas separation processes. In these applications, water vapor competes directly with the target gas for active adsorption sites, creating a gap between dry-condition laboratory performance and real-world operating performance.
Water vapor adsorption analysis helps researchers measure this gap under realistic humidity conditions. By comparing dry and humid breakthrough data, laboratories can determine whether a material that performs well in ideal screening conditions will remain effective in the process environment it is designed for.
This article reviews how water vapor adsorption affects solid adsorbent capacity and selectivity across four industrially relevant gas separation applications. It also presents experimental breakthrough curve data showing a CO2 adsorption capacity reduction of 69 percent when relative humidity rises from 0 to 80 percent in a molecular sieve material.
The data also shows why humidity-controlled testing using the AMI BTsorb 100 and Master 400 mass spectrometer is important for closing the gap between laboratory screening and application-ready performance data.
Water vapor adsorption is the process by which water molecules from a gas stream bind to the surface and pore structure of a solid adsorbent material. In gas separation applications, this matters because water often competes with target gas species for the same active sites.
When water adsorbs preferentially or in large quantities, it reduces the number of sites available for the intended separation. This can lower adsorption capacity, reduce selectivity, cause earlier breakthrough in packed bed systems, and change the overall performance of the adsorbent under operating conditions.
For many solid adsorbents, including metal-organic frameworks, zeolites, molecular sieves, activated carbons, and silica-based materials, the internal surface may interact strongly with water molecules. At moderate to high relative humidity, water can occupy enough active sites to measurably reduce separation performance. In some materials, repeated exposure to humidity may also affect framework stability.
Understanding water vapor adsorption behavior is therefore not optional in adsorbent development. It is a required step in evaluating whether a material that performs well under dry conditions will remain effective in its intended operating environment.
The standard approach to adsorbent screening often uses dry gas streams. This simplifies the experimental setup and produces reproducible isotherms and breakthrough curves, but it does not reflect the conditions that adsorbents encounter in most industrial processes.
In practice, several limitations arise when adsorbent data comes only from dry-condition testing:
The result is that laboratories relying only on dry-condition screening may advance adsorbent materials that later fail under application-relevant conditions. This can delay development, increase testing costs, and lead to incorrect material selection decisions.
The effect of water vapor adsorption is not limited to a single industry or material class. Published research and AMI experimental data show that humid conditions can reduce adsorbent performance across several important gas separation applications.
During coal bed methane extraction, methane is often mixed with air in low-concentration streams. Effective methane and nitrogen separation from these streams offers both environmental and economic benefits.

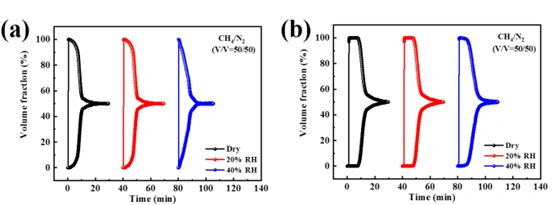

Metal-organic frameworks are candidates for this separation, but their affinity for water creates a challenge. Studies using a 50/50 CH4/N2 mixture under controlled relative humidity conditions show that some MOFs perform similarly to dry conditions at 20 percent RH. At 40 percent RH, however, performance degradation becomes more pronounced, with earlier breakthrough and reduced selectivity.
In these cases, the decline is attributed to competitive water vapor adsorption disrupting methane and nitrogen separation.
Hydrophobically modified UiO-66-NDC(50) has been studied for toluene removal from air streams. Under dry conditions, the material achieves a toluene adsorption capacity of 143 mg/g. As relative humidity increases, this capacity falls progressively, reaching 50 mg/g at 80 percent RH, a reduction of approximately 65 percent.
This result shows that hydrophobic surface modification can reduce, but not eliminate, the competitive effect of water vapor. Adsorbent capacity at high humidity should therefore be measured directly instead of inferred from dry-condition data.
In ethylene production, residual CO2 and acetylene must be removed to ultra-trace concentration levels before the ethylene stream can be used for polymerization. Zeolite ETA-MOR is one candidate material for this purification step, but its performance can degrade under humid conditions.

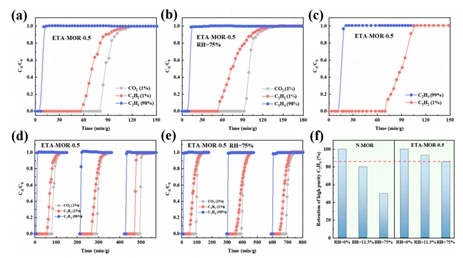

After organic amine modification, ETA-MOR-0.5 maintains over 85 percent separation efficiency at 75 percent relative humidity. The amine modification changes the acid-base environment within the pores, enhances hydrophobicity, and reduces effective diffusion channels for water.
This is a case where modified and unmodified forms of the same material show very different humidity tolerance. Direct comparison under controlled humidity conditions is necessary to identify which material is suitable for industrial use.
Flue gas from industrial combustion processes typically contains nitrogen, CO2, and water vapor at the same time. Adsorbents must maintain CO2 selectivity in the presence of all three components to be viable for post-combustion capture.

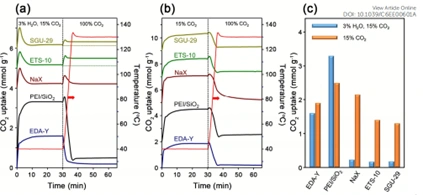

Materials such as NaX and EFS-10 have been shown to degrade under moist conditions. Functionalized sorbents such as EDA-Y, an ethylenediamine-grafted Y zeolite, maintain stronger CO2 adsorption performance under humid conditions because amine groups preferentially bind CO2 over water.
These results confirm that surface chemistry, not only pore structure, determines humidity tolerance in flue gas CO2 capture. For related applications, see AMI’s guide on CO2 adsorbent performance testing.
Evaluating water vapor adsorption effects requires an instrument platform capable of delivering precisely controlled humidity alongside target gas mixtures under flow conditions. Static isotherm methods measure equilibrium adsorption, but they do not fully capture the kinetic and competitive adsorption dynamics that determine breakthrough performance in packed bed systems.
The BTsorb 100 dynamic sorption analyzer is designed for this type of evaluation. Its integrated steam generator enables precise control of vapor content in the feed gas stream, allowing researchers to set and maintain defined relative humidity levels throughout a breakthrough experiment.
Configurable gas mixers allow multi-component feed streams to be prepared at defined compositions, including simultaneous control of CO2, N2, and H2O fractions.
The BTsorb 100 can be paired with the AMI Master 400 mass spectrometer for real-time, component-resolved outlet gas analysis. This enables direct measurement of how each component in the feed stream breaks through the adsorbent bed over time, producing the breakthrough curve analysis needed to calculate dynamic adsorption capacity under realistic conditions.
Together, these instruments allow researchers to run dry and humid tests on the same material under otherwise identical conditions, making performance comparison direct and unambiguous.
Approximately 0.35 grams of molecular sieve adsorbent was packed into a 1 mL column and pretreated with helium at 150 degrees C for one hour to remove previously adsorbed species before testing.
Two breakthrough experiments were conducted under otherwise identical pressure and temperature conditions.
Dry test conditions:
Humid test conditions:
Both experiments used the BTsorb 100 for flow control and the Master 400 for real-time outlet gas composition measurement.
The breakthrough curves collected under dry and humid conditions showed a pronounced difference in both breakthrough timing and calculated adsorption capacity.
| Condition | Relative Humidity | CO2 Adsorption Capacity |
| Dry CO2/N2 | 0 percent | 1.71 mmol/g |
| Humid CO2/N2/H2O | 80 percent | 0.528 mmol/g |
Under dry conditions, the molecular sieve produced a standard breakthrough curve with a CO2 adsorption capacity of 1.71 mmol/g. Under 80 percent relative humidity, the capacity dropped to 0.528 mmol/g, a reduction of approximately 69 percent.
The mechanism is competitive adsorption. Water molecules adsorb preferentially at active sites within the molecular sieve, displacing CO2 and reducing the number of sites available for CO2 capture.
In the humid breakthrough curve, the separate breakthrough of CO2 and H2O was visible, with the two components showing different kinetics as they competed for available sites.
This 69 percent capacity reduction would not be detectable in a dry-only evaluation. A laboratory screening this material using standard dry-condition testing would characterize it as having a CO2 capacity of 1.71 mmol/g. In a post-combustion capture application at 80 percent RH, the actual performance would be less than one-third of that value.
The results have direct implications for how adsorbent screening programs are designed and what data is used to make material selection decisions.
For research teams developing new adsorbent materials, humidity testing at the screening stage helps identify whether a material is worth advancing before significant resources are committed to synthesis optimization or scale-up.
Materials that show strong dry-condition performance but high humidity sensitivity can be deprioritized or directed toward surface modification strategies that improve water tolerance.
For process engineers evaluating commercial adsorbents, dry-condition capacity data from supplier datasheets or published literature may significantly overstate usable capacity in the actual process environment. Direct breakthrough testing under application-specific humidity conditions provides the data needed to compare candidate materials accurately.
For quality control programs, humid breakthrough testing adds a real-world validation layer that dry-condition testing cannot provide.
Testing solid adsorbents under controlled humidity conditions is most important when:
Water vapor adsorption analysis is closely related to several other adsorption testing methods. For equilibrium gas sorption and pore structure analysis, a gas sorption analyzer can be used to measure adsorption isotherms, BET surface area, pore volume, and pore size distribution.
For dynamic testing under flow conditions, breakthrough curve analysis is more appropriate because it shows how gas mixtures behave as they pass through an adsorbent bed.
Humidity-controlled vapor adsorption testing is especially important when the target process includes water vapor. In these cases, vapor adsorption analyzers and dynamic sorption systems help researchers compare dry and humid performance under controlled, repeatable conditions.
For applications involving CO2 capture, VOC removal, coal bed methane upgrading, ethylene purification, and other humid gas streams, combining vapor control, gas mixing, and real-time outlet analysis provides a more realistic assessment of adsorbent performance.
For processes that use cyclic adsorption and regeneration, temperature swing adsorption is another important method for evaluating adsorbent behavior under process-relevant operating conditions.
Water vapor adsorption is one of the most consequential factors in solid adsorbent performance evaluation. Across coal bed methane recovery, VOC removal, ethylene purification, and post-combustion CO2 capture, humidity at realistic levels can reduce adsorbent capacity and selectivity relative to dry-condition measurements.
The experimental data presented here quantifies this effect directly for a molecular sieve under CO2 breakthrough conditions. A capacity of 1.71 mmol/g under dry conditions fell to 0.528 mmol/g at 80 percent relative humidity, a reduction of approximately 69 percent.
For any application where the gas stream contains water vapor, this difference is large enough to determine whether a material meets the requirements of a real process design.
The BTsorb 100 by AMI Instruments, with integrated steam generation, configurable gas mixing, and real-time mass spectrometer analysis, provides the measurement platform needed to generate humidity-controlled breakthrough data at the screening stage. Testing adsorbents under conditions that reflect their intended operating environment is the most direct way to ensure that material selection decisions are based on relevant performance data.
(1) Li, T.; Jia, X.; Chen, H.; Chang, Z.; Wang, Y.; Li, J. Tuning the pore environment of MOFs toward efficient CH4/N2 separation under humid conditions. ACS Appl. Mater. Interfaces, 2022, 14, 15830- 15839. (2) Li, W.; Wang, W.; Sun, J.; Ma, X.; Dong, Y. Hydrophobic modification of UiO-66 by naphthyl ligand substitution for efficient toluene adsorption in a humid environment. Microporous Mesoporous Mater. 2021, 326, 111357. (3) Shi, X.; Zhang, B.; Chen, H.; Li, J.; Li, L. Organic molecular gate in mordenite for deep removal of acetylene and carbon dioxide from ethylene under humid condition. Sep. Purif. Technol. 2023, 327, 124953. (4) Kim, C.; Cho, H. S.; Chang, S.; Cho, S. J.; Choi, M. An ethylenediamine-grafted Y zeolite: A highly regenerable carbon dioxide adsorbent via temperature swing adsorption without urea formation. Energy Environ. Sci. 2016, 9, 1803-1811.
Water vapor reduces CO2 adsorption capacity because water molecules compete with CO2 for active adsorption sites. In many molecular sieves, water interacts strongly with polar surfaces and can occupy sites that would otherwise be available for CO2 capture.
A breakthrough curve shows how the concentration of a gas component changes at the outlet of an adsorbent bed over time. It is used to evaluate dynamic adsorption capacity, mass transfer behavior, and the point at which the adsorbent bed becomes saturated.
Competitive adsorption occurs when two or more gas or vapor components compete for the same adsorption sites. In humid gas streams, water vapor can compete with target gases such as CO2, methane, nitrogen, VOCs, or acetylene, reducing the effective adsorption capacity for the target species.
Humid testing is more realistic because many industrial gas streams contain water vapor. Dry testing can overestimate adsorbent capacity and selectivity, while humidity-controlled testing shows how the material performs under application-relevant conditions.
Humidity-controlled breakthrough testing typically uses a dynamic sorption analyzer or breakthrough testing system with controlled gas mixing, vapor generation, and outlet gas analysis. In this article, the AMI BTsorb 100 is used with the Master 400 mass spectrometer to measure component-resolved breakthrough behavior.
