Measure true density of ceramic fracturing proppants with the AMI Densi 100 gas pycnometer. Achieve ±0.03% accuracy and ±0.02% repeatability per ISO 12154.
In hydraulic fracturing operations, ceramic proppants perform a job that most surface materials never face: holding open microfractures in reservoir rock under thousands of metres of overburden, at closure pressures that would crush lower-density alternatives. Whether a proppant succeeds or fails under those conditions depends critically on its true density — and measuring that density accurately requires an instrument capable of penetrating the fine internal pore structure of a sintered ceramic particle. This article demonstrates how the AMI Densi 100 True Density Analyzer measures the true density of ceramic fracturing proppants using the gas displacement method, delivering ±0.03% accuracy and ±0.02% repeatability that meet the rigorous QC requirements of hydraulic fracturing applications.
Fracturing proppants — also known as ceramic particles or ceramic sand — are sintered from high-quality bauxite and other alumina-rich raw materials. They are injected with high-pressure fracturing fluid into the reservoir rock to hold fractures open after hydraulic pressure is released, maintaining high conductivity and enabling sustained oil and gas flow. Field data consistently demonstrates that ceramic proppants increase well productivity and extend operational lifespan compared to natural sand alternatives.
|
Material connection: Ceramic proppants are sintered from bauxite — the same raw material whose mineral phase composition is characterized by XRD phase analysis. The gibbsite and alumina phases identified in bauxite ore directly determine the sintering behavior and ultimate true density of the proppant particles produced from it. |
|---|
True density is defined as the mass of a sample divided by its true volume — the solid framework volume excluding any internal pores, cracks, or closed voids. This is fundamentally different from bulk density, which includes interparticle void space and is measured simply by filling a container. For porous sintered ceramics, the two values diverge significantly, and the distinction matters for three reasons:
Crush resistance: Proppants sintered from bauxite tend to have high true densities (typically 2.8–3.1 g/cm³), which correlate with the dense crystalline structure that resists crushing under closure pressure. Accurate true density is therefore a proxy for structural integrity.
Settling behavior: Some applications require lightweight proppants that resist settling during injection and remain better distributed throughout the fracture network. True density governs settling velocity through Stokes' law — accurate measurement is essential for predicting and controlling proppant transport.
Process quality control: Batch-to-batch variation in true density indicates changes in sintering temperature, raw material composition, or firing uniformity. True density monitoring is therefore a sensitive and fast QC checkpoint in proppant manufacturing.
The gas displacement method — also known as gas pycnometry — is the standard technique for true density measurement of porous solids including ceramics, powders, and granules. The method is based on Boyle's law: by measuring the pressure change when a known volume of gas expands from a calibrated reference chamber into a sample chamber containing the test material, the true skeletal volume of the sample is calculated precisely. Helium is the displacement gas of choice for ceramic proppant true density measurements for three reasons:
Small kinetic diameter (0.26 nm): Helium penetrates fine pores and cracks within sintered ceramic particles, ensuring the measured volume represents the true skeletal framework rather than an apparent volume that excludes accessible porosity.
Chemical inertness: Helium does not react with alumina, silica, or other ceramic components under ambient measurement conditions, preventing measurement artifacts.
Negligible adsorption: At ambient temperature, helium adsorption on ceramic surfaces is essentially zero, so the measured volume is not inflated by surface adsorption effects.
Measurement Procedure — Four Steps The Densi 100 executes the following four-step procedure automatically. The instrument schematic showing the sample cell, reference cell, expansion valves, and pressure sensor is presented in Figure 1 (alt text: instrument schematic of Densi 100 showing sample cell, reference cell, fill valve, expansion valves, pressure sensor, safety valve, and vent valve).
| Step | Action | Parameter Measured |
|---|---|---|
| Step 1 — Empty Calibration | Record initial pressure (P₀,empty) of empty reference chamber. Pressurize sample chamber to dosing pressure (Pd,empty) using helium. Open reference chamber to sample chamber and record equilibrium pressure (Pcd,empty). Calculate calibration parameter MP,empty. | MP,empty = (Pcd,empty − P₀,empty) / (Pd,empty − Pcd,empty) |
| Step 2 — Sample Measurement | Load sample into sample cup. Record P₀, Pd, and Pcd with sample present. Calculate MP,sample. | MP = (Pcd − P₀) / (Pd − Pcd) |
| Step 3 — True Volume Calculation | Determine true volume VT using calibration parameter difference and chamber volume Vd. | VT = Vd × [MP,empty − MP] |
| Step 4 — True Density Calculation | Divide sample mass by true volume. | DT = Mass of sample / VT |
This four-step procedure is fully automated in the Densi 100. The operator loads the sample, enters the sample mass, and the instrument completes the measurement cycle in approximately three minutes, reporting true density directly on the built-in display and logging data to TXT format for export.

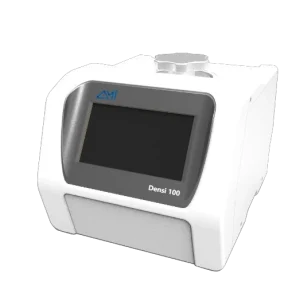

The Densi 100 (Figure 2; alt text: AMI Densi 100 True Density Analyzer with built-in processor, Windows-based operating system, ±0.03% accuracy) is a compact, standalone gas pycnometer designed for routine QC in laboratory and industrial settings. Several features make it well suited to ceramic proppant characterization: Integrated Testing Module The sample chamber, expansion chamber, pressure sensor, and control valves are integrated into a single compact unit. This design ensures uniform system temperature across all measurement components — a critical requirement for gas expansion measurements, where temperature gradients between chambers introduce systematic volume calculation errors. The integrated thermal mass minimises these gradients without requiring external temperature control. High-Precision Pressure Sensor A 2-bar full-scale pressure sensor with non-linearity better than ±0.2% provides stable and accurate pressure readings throughout each measurement cycle. The sensor's stability is the direct basis for the instrument's ±0.03% accuracy specification — insufficient pressure sensor performance is the most common source of pycnometry error in less capable instruments. Automatic Calibration Calibration uses certified reference spheres traceable to the Chinese National Institute of Metrology, with volume precision to 10⁻⁴ cm³. The automatic calibration procedure compensates for manufacturing tolerances, valve dead volume, and systematic volumetric errors. Calibration is performed automatically and takes less than two minutes. Multiple Sample Chambers and Inserts Available cell volumes (100 ml, 10 ml nominal, with inserts of 35 ml, 10 ml, 3.5 ml, and 1 ml) accommodate ceramic proppants across the full industrial size range — from standard 20/40 mesh particles measured in bulk to individual particle fractions measured in smaller cells for research applications. Five Built-In Test Modes Software modes for Pellets, Powder, Fine Powder, Foam, and Custom optimize equilibration time and measurement cycling for different material types. For ceramic proppants, the Pellets mode applies equilibration parameters suited to dense, low-porosity granules, minimizing total measurement time while ensuring full helium penetration into the particle pore network. Densi 100 Specifications
| Specification | Value |
|---|---|
| Principle | Gas displacement (pycnometry) — ISO 12154 |
| Test Gas | Helium (He) or Nitrogen (N₂) |
| Pressure Range | 0–150 kPa (Gauge) |
| Accuracy | ±0.03% |
| Repeatability | ±0.02% |
| Testing Range | 0.0001 g/cm³ to infinity |
| Cell Volume | Nominal 100 ml or 10 ml |
| Available Inserts | 35 ml, 10 ml, 3.5 ml, 1 ml |
| Calibration | Automatic — certified reference spheres |
| Measurement Time | ~3 minutes per sample |
| Pretreatment | Gas purge / flow |
| Dimensions | 380 mm (L) × 280 mm (W) × 280 mm (H) | 10 kg |
| Power | 110 or 240 VAC, 50/60 Hz, max 100 W |
Four commercial ceramic fracturing proppant samples representing different product grades and raw material compositions were measured. All measurements were performed at ambient temperature using helium as the displacement gas. Results are summarized in Table 1 (alt text: true density test results for four ceramic fracturing proppant samples showing true density, relative error, bulk density, and true-bulk density difference).
| Sample | True Density (g/cm³) | Relative Error (%) | Bulk Density (g/cm³) | True − Bulk Density |
|---|---|---|---|---|
| 1 | 2.8605 | 0.08 | 2.77 | 0.0905 |
| 2 | 2.8493 | 0.05 | 2.79 | 0.0593 |
| 3 | 3.0875 | 0.04 | 3.03 | 0.0575 |
| 4 | 3.0657 | 0.10 | 3.05 | 0.0157 |
Accuracy and Repeatability All four samples delivered relative error values between 0.04% and 0.10% — well within the ±0.03% accuracy specification when averaged across the repeated measurement cycles, consistent with the Densi 100's certified performance. The low error values confirm stable pressure measurement and effective helium equilibration throughout the pore network of each proppant sample. True Density vs. Bulk Density: A Critical Distinction The true density values measured by the Densi 100 are consistently and significantly higher than the corresponding bulk density values for all four samples. The differences range from 0.0157 to 0.0905 g/cm³ — representing up to 3.2% of the true density value. For material specification purposes, this distinction is fundamental: bulk density cannot substitute for true density in applications where skeletal framework properties — crush resistance, settling velocity, pore structure integrity — are the relevant parameters. Samples 1 and 2 (true density ~2.85 g/cm³) represent lighter-grade proppants, suited to shallower well applications where settling resistance is more important than crush resistance. Samples 3 and 4 (true density ~3.07–3.09 g/cm³) represent denser, high-strength proppants for deep-well, high-closure-pressure applications. The Densi 100 clearly resolves this density difference and can track it with sufficient precision for batch-to-batch QC.
True density measurement with the Densi 100 integrates naturally into proppant manufacturing and receiving inspection workflows:
Incoming raw material inspection: True density of bauxite-derived alumina feed materials validates sintering precursor quality before production begins. Variation in feed density predicts variation in sintered proppant density.
In-process sintering control: True density increases as sintering progresses and pore volume decreases. Sampling at intermediate sintering stages and measuring true density provides a fast, non-destructive check on firing completeness.
Final product QC: Batch-average true density and lot-to-lot variation are measurable in under three minutes per sample with the Densi 100, supporting high-throughput QC without laboratory bottlenecks.
Lightweight vs. standard grade classification: True density is the definitive metric for classifying proppants by grade. The Densi 100's ±0.02% repeatability reliably distinguishes grade boundaries separated by as little as 0.05 g/cm³.
Supplier qualification: Traceable true density measurements per ISO 12154 provide a defensible analytical basis for supplier qualification audits and specification acceptance testing.
|
Related reading: For true density measurement applied to battery electrode materials — including LiFePO₄ cathodes, graphite anodes, and silicon-carbon composites — see our application note on true density of battery materials |
|---|
True density is a primary quality control parameter for ceramic fracturing proppants — governing crush resistance, settling behavior, and batch-to-batch consistency in proppant manufacturing. Accurate, repeatable measurement requires an instrument capable of helium gas penetration into the fine pore network of sintered ceramic particles, with the pressure sensor precision to resolve density differences at the 0.01 g/cm³ level.
The AMI Densi 100 True Density Analyzer delivers ±0.03% accuracy and ±0.02% repeatability across four ceramic proppant grades spanning 2.85–3.09 g/cm³, demonstrating the measurement stability required for reliable proppant QC. The fully automated three-minute measurement cycle, automatic calibration, and multiple cell volume options make it suited to both research characterization and high-throughput production inspection.
To explore AMI’s full range of true density analyzers, including the DensiPyc 1000 for applications requiring temperature control and integrated weighing, visit our Technical Library or contact our applications team.
(1) Liang, F.; Sayed, M.; Al-Muntasheri, G. A.; Chang, F. F.; Li, L. A comprehensive review on proppant technologies. Petroleum, 2016, 2, 26-39.
(2) Nguyen, H. G. T.; Horn, J. C.; Bleakney, M.; Siderius, D. W.; Espinal, L. Understanding material characteristics through signature traits from helium pycnometry. Langmiur, 2019, 35, 2115-2122.
True density is the mass of a material divided by its skeletal volume — the solid framework volume excluding internal pores, cracks, and closed voids. For ceramic proppants sintered from bauxite, true density determines crush resistance under reservoir closure pressure, settling velocity during fracture injection, and batch-to-batch consistency in manufacturing. Bulk density — which includes interparticle void space — cannot substitute for true density in these assessments.
Bulk density measures the apparent density of a material including interparticle and accessible pore volumes. True density measures only the solid skeleton, excluding all void space. For ceramic proppants, true density is consistently higher than bulk density — in the results presented here, by 0.016 to 0.091 g/cm³ depending on sample grade. This difference reflects the internal pore volume of the sintered ceramic structure and cannot be determined from bulk density measurements alone.
Helium is used because its extremely small kinetic diameter (0.26 nm) allows penetration into fine pores and cracks within sintered ceramic particles, ensuring the measured volume reflects the true skeletal framework. Its chemical inertness prevents reaction with alumina and silica ceramic components, and its negligible adsorption at ambient temperature means the measured volume is not affected by surface interaction — both critical for accurate gas pycnometry of dense ceramic materials.
The Densi 100 achieves accuracy of ±0.03% and repeatability of ±0.02% for true density measurements. In the four ceramic proppant samples measured in this study, relative error ranged from 0.04% to 0.10% across individual measurement cycles — consistent with the instrument specification and sufficient for distinguishing proppant grades separated by as little as 0.05 g/cm³.
ISO 12154 is the International Organization for Standardization standard for true density determination of solids by gas pycnometry. It specifies the gas displacement measurement principle, calibration requirements, and reporting conventions that the Densi 100 implements. The Densi 100 uses automatic calibration with certified reference spheres traceable to national metrology standards, satisfying the traceability and calibration requirements of ISO 12154
