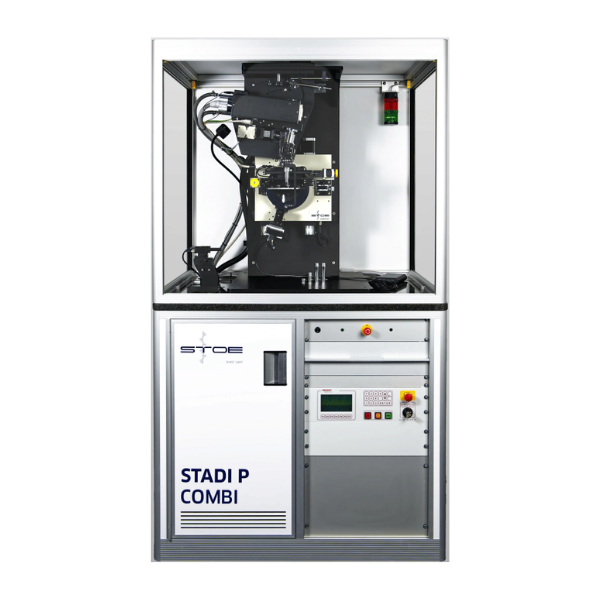

STADI P COMBI

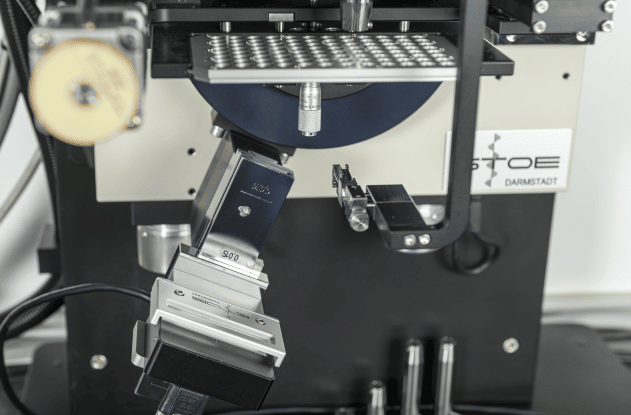

● 96-fold sample stage
● User definable x-y grid
● Pure Kα1 radiation using Co, Cu, Mo or Ag radiation

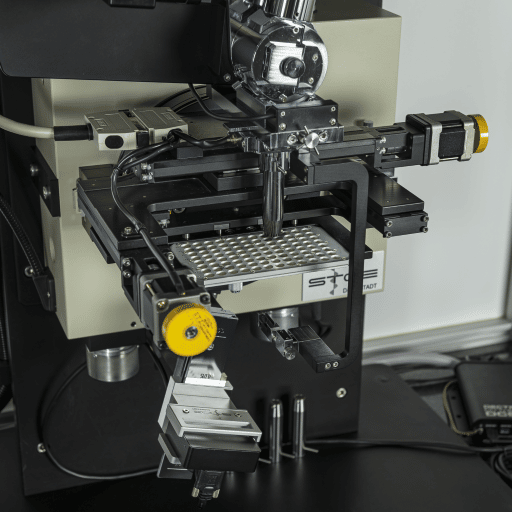

Based on the well-known STADI P, STOE has developed a powder diffractometer for high-throughput and combinatorial measurements in transmission geometry. With its dedicatedly designed sample stage, providing a variable x-y grid for numerous slide-in sample holders, like our 96 sample well plate, the STADI P COMBI offers highest efficiency combined with all the advantages of the STADI P system.
| 2θ range | 0° up to 140° |
|---|---|
| Goniometer | 2 circle |
| Radius of measuring circle | 260 mm |
| Radius of focusing circle | 160 mm |
| X-ray sources | Sealed Tubes: Co, Cu, Mo, Ag |
| Optics | Primary monochromator |
| Software | WinXpow package |
| Dimensions (Including system cabinet, max.) | 1100 x 880 x 2050 mm |
| Weight (complete system) | 650 kg |
| Detectors | Silicon strip detector MYTHEN2 R 1K |
| Accessories |
|
WinXPOW, is a uniquely designed powder diffraction software developed exclusively by our skilled team at STOE. It is meticulously crafted to perfectly work with our instruments, ensuring seamless compatibility and optimal performance. In addition to controlling the instruments, WinXPOW provides a comprehensive range of cutting-edge features. These include data reduction, profile fitting, pattern indexing, and spacegroup determination. Moreover, it boasts an array of powerful functionalities, such as advanced 2D and 3D graphics, among numerous other capabilities.
We provide a wide range of accessories to customize your sample environment according to your specific requirements. Our products encompass high temperature and reaction chambers, sample changers, dedicated battery cell holders, and various other accessories to enhance your experimentation capabilities.
