This article examines the structure–property relationship and thermal behavior of two representative polyamide grades: aliphatic PA11 and semi-aromatic PA6T. Using TGA and DSC, the study characterizes thermal stability, melting behavior, glass transition temperature, and crystallization kinetics — demonstrating directly how molecular architecture determines performance across temperature-sensitive engineering environments. All measurements were performed using the AMI TGA 1000 and AMI DSC 600, part of AMI’s range of thermal analysis instruments. For a broader overview of AMI’s thermal characterization capabilities, see our thermal properties analysis overview.
Polyamides (PAs) are polymers containing repeating amide groups (—CONH—) along their molecular chains. As one of the five major engineering thermoplastics, nylons exhibit excellent mechanical strength, wear resistance, chemical stability, and electrical insulation. These properties make them widely applicable in electronics, automotive components, aerospace systems, biomedical sciences, and industrial machinery.

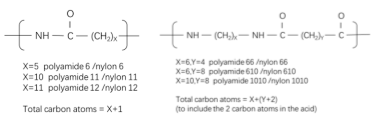

Polyamides are classified by chain structure into three main categories:
This study focuses on aliphatic polyamides (PA11) versus semi-aromatic polyamides (PA6T) — a comparison that directly illustrates how the introduction of aromatic content shifts the thermal behavior envelope of the polyamide family.
Nylon 11 (PA11) is synthesized from 11-aminoundecanoic acid (Figure 1; alt text: chemical structure of PA11 showing repeating amide unit from 11-aminoundecanoic acid), forming a semicrystalline polymer through strong intermolecular hydrogen bonding. The bulk polymer is a translucent, milky white solid with a density of 1.04 g/cm³ and a melting range of 186–190°C. As a fully aliphatic polyamide, PA11 has a long methylene sequence between amide groups, which reduces hydrogen bonding density relative to shorter-chain nylons (PA6, PA6,6) — improving moisture resistance and dimensional stability while maintaining flexibility.
Key properties of PA11:
Poly(hexamethylene terephthalamide) (PA6T) is synthesized by reacting terephthalic acid (PTA) with hexamethylenediamine (HMDA) (Figure 2; alt text: chemical structure of PA6T showing aromatic terephthalic acid unit combined with hexamethylenediamine). The aromatic terephthalate unit in the backbone provides PA6T with significantly higher thermal resistance and rigidity than any fully aliphatic polyamide, while the aliphatic HMDA segment retains some chain flexibility and crystallizability.

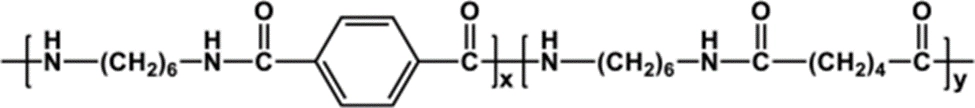

However, PA6T’s theoretical melting point (~370°C) exceeds its decomposition temperature (~350°C) — making it non-processable in its pure form. Copolymer modification with PA66 segments (Figure 3; alt text: chemical structure of PA6T/PA66 copolymer showing alternating semi-aromatic and aliphatic segments) lowers the melting point to processable temperatures. The structural similarity between PA6T and PA66 segments enables co-crystallization with only minor lattice defects, preserving the mechanical and thermal advantages of the aromatic content while allowing conventional melt processing.
Key properties of PA6T-based nylons:
Understanding crystallization in aliphatic polyamides requires understanding how amide groups drive crystal formation. In nylons, amide groups form strong hydrogen bonds (—NH⋯O=C—) between adjacent polymer chains, promoting two-dimensional hydrogen-bonded sheets. These sheets then stack into three-dimensional crystalline structures. The specific arrangement of hydrogen bonds and sheet stacking determines the crystal polymorph — nylons can adopt multiple crystalline forms (alpha, beta, gamma phases) depending on processing history and crystallization conditions.
Crystallization occurs in two mechanistic stages:
Imperfect crystals formed during initial rapid cooling may undergo secondary crystallization upon reheating — reorganizing from less stable configurations into more thermodynamically stable forms. This secondary crystallization is directly visible in DSC as a small exotherm appearing between Tg and Tm on the heating curve, particularly pronounced in PA6T where the high Tm allows a wide temperature window for reorganization before melting.
Thermogravimetric analysis was performed using the AMI TGA 1000 with high-purity nitrogen (99.999%) at 50 mL/min. Approximately 15 mg of polymer was placed in ceramic crucibles and heated from 25°C to 1000°C at 10°C/min. High-purity nitrogen was used to prevent oxidative degradation artifacts from distorting the decomposition profile — a critical control in polymer TGA where even trace oxygen can initiate exothermic oxidation that mimics or masks true thermal decomposition events.
| Related reading: For a detailed discussion of how purge gas atmosphere quality affects TGA measurement integrity — including verification methods for oxygen exclusion using carbon black and copper oxalate — see our article on oxygen-free TGA analysis and purge gas testing. |
DSC was performed using the AMI DSC 600 with high-purity nitrogen at 30 mL/min. Approximately 20 mg of PA11 was sealed in an aluminum crucible and heated from −90°C to 300°C at 20°C/min. The sub-ambient start temperature captures the glass transition of moisture-conditioned PA11, which can fall below 0°C depending on water content.
Approximately 5 mg of PA6T was sealed in an aluminum crucible and subjected to a heating-cooling cycle between 50°C and 350°C at 20°C/min. The smaller sample mass for PA6T (5 mg vs 20 mg for PA11) reduces thermal lag during the rapid phase transitions at PA6T’s higher temperatures (Tm ~304°C, Tc ~275°C), improving peak resolution and temperature accuracy.

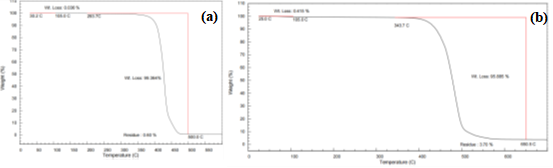

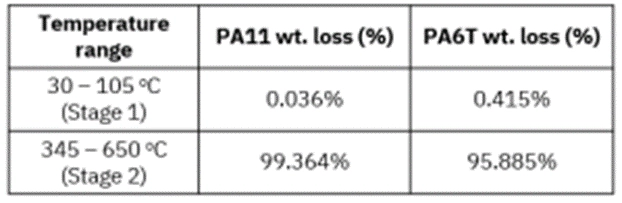

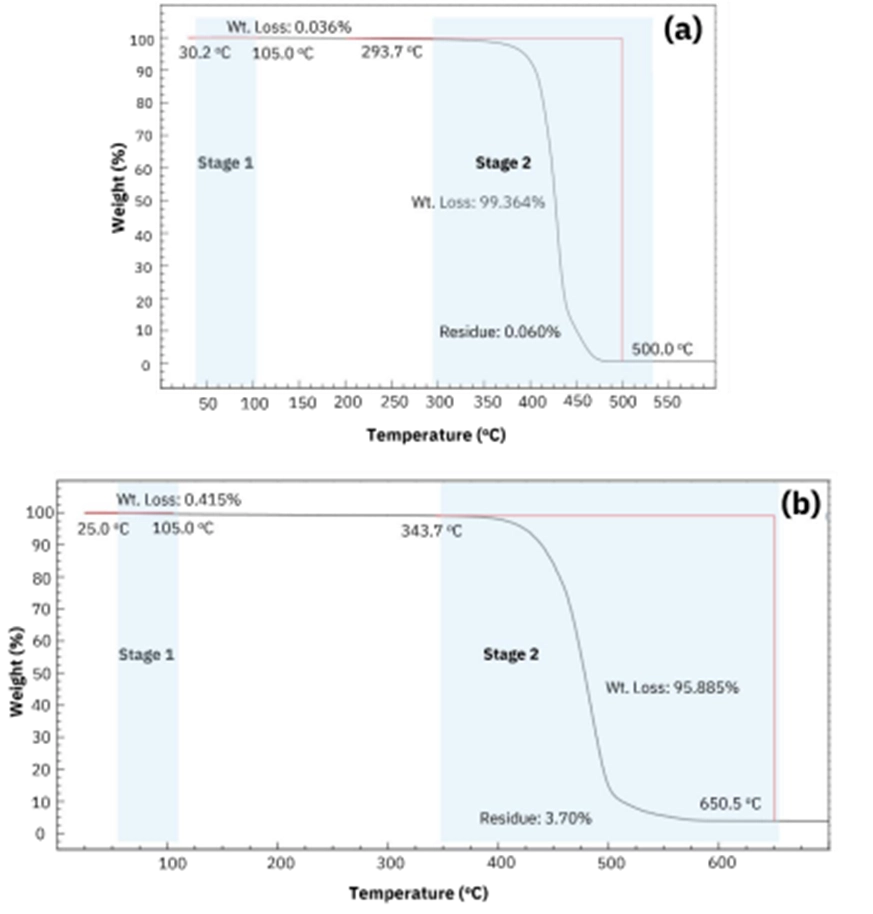

The TGA curves for PA11 (Figure 5a; alt text: TGA curve of PA11 showing two-stage mass loss with decomposition onset at 293.7°C) and PA6T (Figure 5b; alt text: TGA curve of PA6T showing two-stage mass loss with decomposition onset at 343.7°C) both exhibit two-stage decomposition behavior:
| Property | PA11 (Aliphatic) | PA6T (Semi-Aromatic) | Difference |
|---|---|---|---|
| Thermal decomposition onset | 293.7°C | 343.7°C | +50°C — PA6T significantly more thermally stable |
| Primary decomposition mechanism | Random C-C and C-N bond scission | Random C-C and C-N bond scission — aromatic ring resists scission | Same mechanism; aromatic content raises activation energy |
| Stage 1 mass loss | Minor — residual moisture | Minor — residual moisture | Comparable |
| Reason for stability difference | Fully aliphatic backbone — moderate bond dissociation energies | Aromatic ring content — pi-electron system and stronger hydrogen bonding increase thermal resistance | 50°C improvement from aromatic content alone |
| Practical implication: PA6T’s 50°C decomposition advantage over PA11 directly expands its serviceable temperature range in automotive under-hood and electronics reflow soldering applications where PA11 cannot be used. The TGA decomposition temperature also confirms safe processing limits — both grades show decomposition well above their respective melting points, confirming adequate processing windows. |

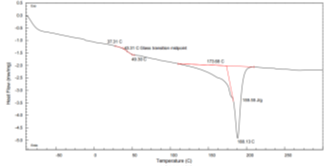

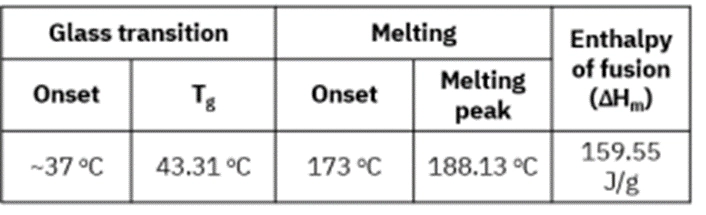

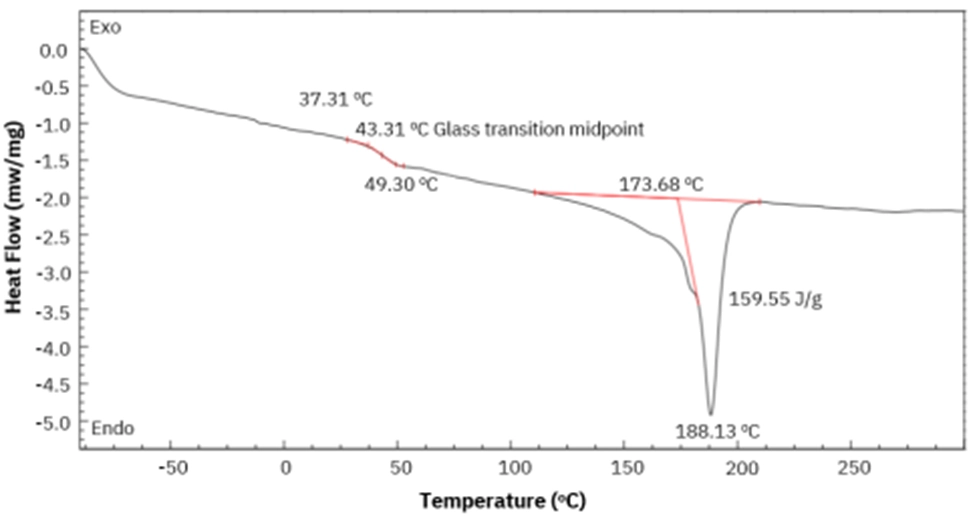

The DSC thermogram for PA11 (Figure 6; alt text: DSC thermogram of PA11 showing melting endotherm at 188.13°C) shows a clear, well-resolved melting endotherm. Key measured values:
| DSC Parameter | PA11 Value | Engineering Significance |
|---|---|---|
| Melting point (Tm) | 188.13°C | Processing temperatures must exceed this value; approximately 105°C below decomposition onset — comfortable processing window |
| Decomposition onset (from TGA) | 293.7°C | Confirms >100°C gap between Tm and Td — no decomposition risk during normal melt processing |
| Glass transition temperature (Tg) | Below 0°C for moisture-conditioned PA11 | Low Tg enables flexibility at sub-ambient temperatures — advantage for pipe and hose applications in cold climates |

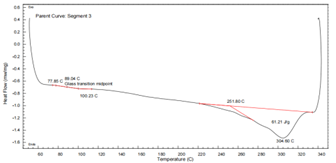

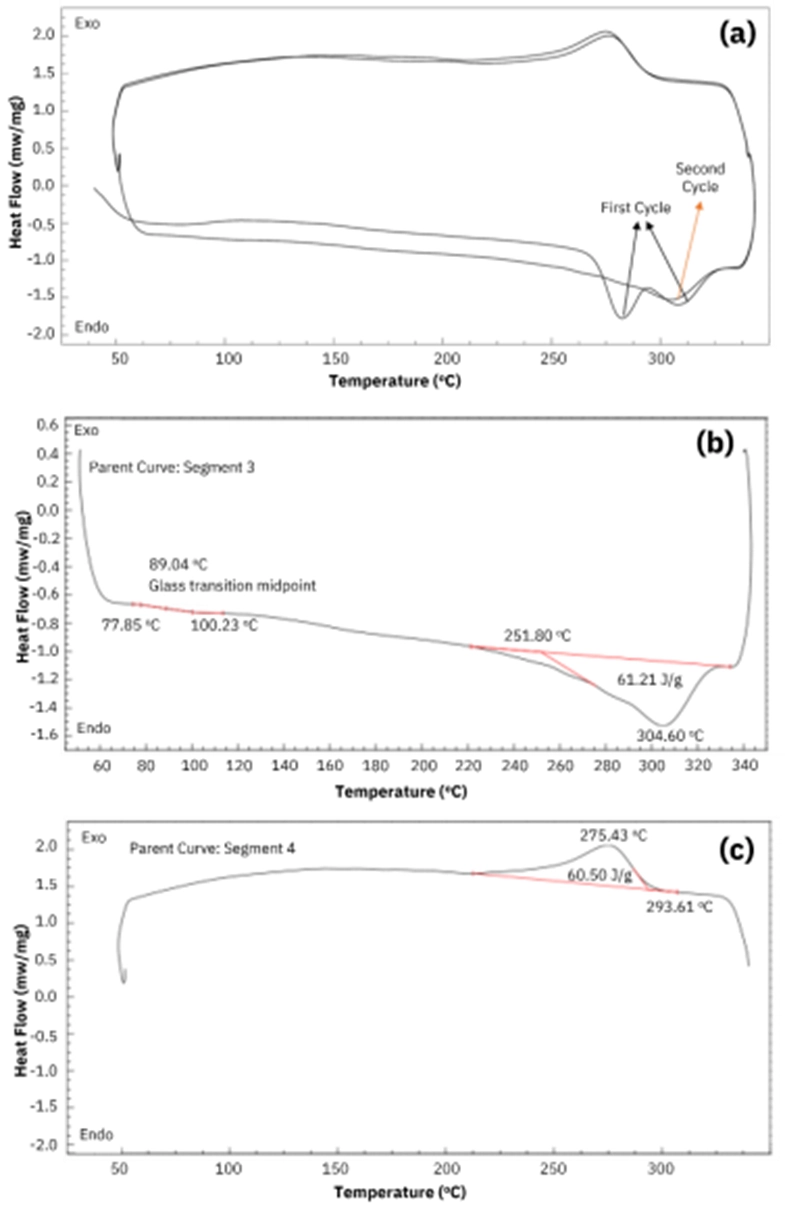

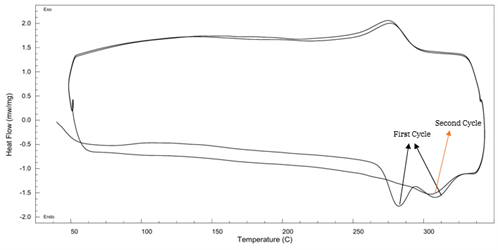

PA6T was cycled four times between 50°C and 350°C (Figure 7; alt text: PA6T DSC thermograms showing four heating-cooling cycles with dual melting peaks on first heating and stable behavior on subsequent cycles). The temperature cycling reveals several features critical for engineering application:

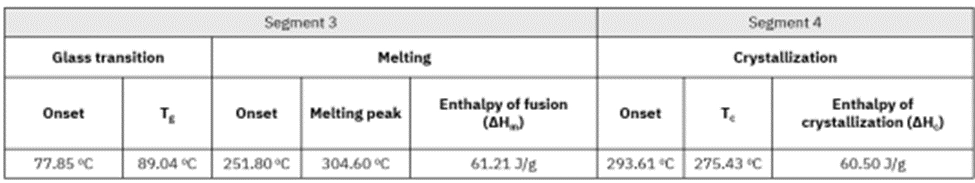

| DSC Parameter | PA11 | PA6T | Engineering Implication |
|---|---|---|---|
| Melting point (Tm) | 188.13°C | ~304.6°C | PA6T’s 116°C higher Tm enables use in applications where PA11 would melt or soften |
| Glass transition (Tg) | Below 0°C (moisture-conditioned) | 89°C | PA6T retains stiffness at temperatures where PA11 is already above its Tg and becoming compliant |
| Crystallization temp (Tc) | Lower | 275.43°C | PA6T’s high Tc indicates fast crystallization kinetics and high achievable crystallinity |
| First heating DSC | Single melting peak | Dual melting peaks | PA6T shows recrystallization-dependent behavior; erased after first heating cycle |
| Processing window (Tm to Td) | 188°C to 293.7°C (~106°C) | ~304°C to 343.7°C (~40°C) | PA11 has a wider processing window; PA6T requires tighter temperature control during molding |
The TGA and DSC results together demonstrate the direct consequence of molecular architecture on thermal behavior in aliphatic polyamides versus their semi-aromatic counterparts:
| Application | Better Choice | Why |
|---|---|---|
| Automotive fuel lines and fluid handling | PA11 | Flexibility, chemical resistance, moisture resistance, adequate temperature range |
| Under-hood automotive (engine bay, intake manifolds) | PA6T-based | Higher Tm and Tg withstand continuous-use temperatures near engine heat sources |
| Electronics packaging (SMT, reflow soldering) | PA6T-based | Tm and decomposition onset above solder reflow temperatures; dimensional stability during cycling |
| Industrial pipes and hoses | PA11 | Long-term flexibility, corrosion resistance, low weight |
| Precision structural components | PA6T-based | Low thermal expansion, minimal warpage, high creep resistance |
| Cold-climate outdoor applications | PA11 | Sub-zero Tg maintains flexibility; PA6T would be brittle |
| High-chemical-resistance environments | PA6T-based | Lower moisture uptake, better resistance to aggressive solvents |

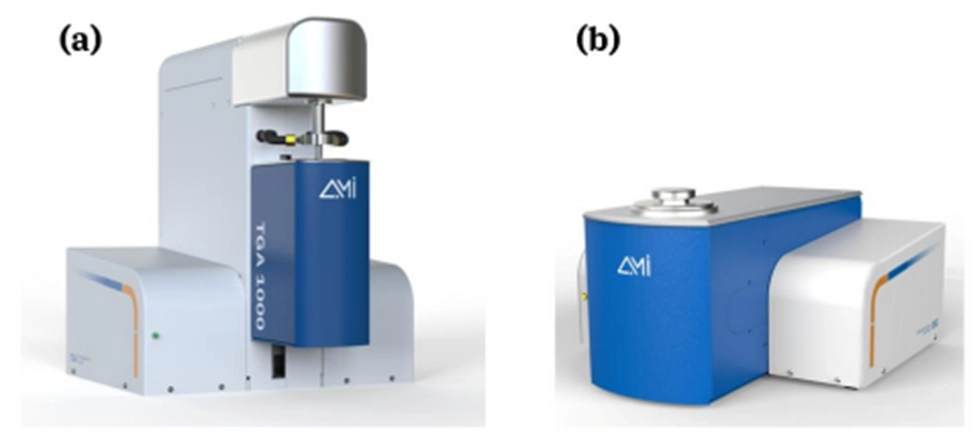

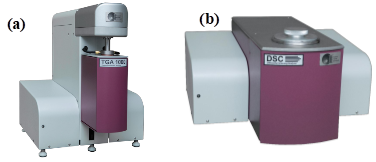

Thermal properties of PA11 and PA6T were measured using two instruments developed by AMI:
The thermal behavior of aliphatic polyamides and their semi-aromatic counterparts is a direct expression of molecular architecture. PA11’s fully aliphatic backbone yields a melting point of 188.13°C, a sub-zero Tg for low-temperature flexibility, and a comfortable processing window before decomposition onset at 293.7°C. PA6T’s aromatic terephthalate content raises every thermal transition — Tm to ~304°C, Tg to 89°C, Tc to 275.43°C, and decomposition onset to 343.7°C — delivering the thermal performance required for automotive under-hood and electronics reflow applications that fully aliphatic nylons cannot serve.
TGA and DSC together provide the complete characterization toolkit for polyamide selection and quality control: TGA establishes safe processing and service temperature limits through decomposition profiling, while DSC characterizes the melting, crystallization, and glass transition events that determine actual processing behavior and end-use performance. The AMI TGA 1000 and DSC 600 deliver the sensitivity and precision required for both. For complementary DSC-based analysis of nylon degradation during processing and in failed components, see our article on nylon degradation analysis by DSC. Explore AMI’s full range of thermal analysis instruments, or visit the AMI Technical Library for further application notes on DSC, TGA, and polymer thermal characterization.
| Need to characterize the thermal properties of polyamides or other engineering thermoplastics? Contact AMI Instruments to discuss your analytical requirements, or explore the TGA 1000/1200/1500 and DSC 600 — and our full range of thermal analysis instruments for polymer characterization, quality control, and materials development. |
PA6T has a semi-aromatic structure, and the aromatic ring content plus stronger hydrogen bonding increases thermal resistance compared to aliphatic PA11.
The decomposition temperature provides a practical indicator of thermal stability limits during processing and high-temperature service conditions.
It confirms a usable processing window: PA11 can melt and be processed before significant thermal decomposition begins.
Dual melting peaks suggest recrystallization effects, especially during the first heating cycle, consistent with structural reorganization.
A higher Tg (89°C) indicates improved performance in higher-temperature environments where stiffness and dimensional stability matter.
