Chemisorption and Catalysis on Supported Metals: User-Friendly Characterization Techniques

Advanced catalyst characterization through temperature-programmed analysis and dynamic chemisorption methods

Understanding Chemisorption in Heterogeneous Catalysis

Chemisorption, the chemical bonding between gas-phase molecules and surface atoms, is the first step in a catalytic reaction on many heterogeneous supported metal catalysts. Chemisorption takes place on small metal crystallites, nanoparticles, or single atoms, which are typically anchored to a high surface area oxide material. These chemisorbed molecules then react with neighboring surface-adsorbed species or with gas-phase molecules to produce reaction products. Characterization of this chemisorption bond reveals intrinsic chemical properties of the supported metal catalyst which directly relate to the rate and product selectivity of the catalytic reaction.

This relationship between chemisorption and catalytic activity is shown in Figure 1. The volcano curve shown in Figure 1a demonstrates the optimum strength of the bond between the chemisorbing species and the surface. Too strong chemisorption can slow down the reaction rate because the molecules are reluctant to leave the surface, and too weak chemisorption can result in desorption of molecules before they have a chance to react. Moderate-strength chemisorption usually results in maximum catalytic activity, as shown below for the ammonia synthesis reaction reported by Mehta et al, shown in Figure 1b.⁽¹⁾

Figure 1. a) Model volcano plot showing the relationship between catalytic activity and reactant adsorption strength, and b) plot from (1) showing the relationship between the experimental rate of ammonia synthesis on various catalysts and theoretical nitrogen adsorption energy calculated with density functional theory (DFT) methods.

Surface Site Quantification in Supported Metal Catalysts

Strength of chemisorption is only one of the parameters affecting catalytic activity. The number of chemisorbed molecules is also important. It follows that more chemisorbed species means more reaction product molecules. The number of molecules forming chemisorption bonds with the catalyst surface is related to the number of surface atoms available for bonding. Maximizing the number of these surface sites for chemisorption is a top priority in supported metal catalyst design.

Chemisorption Analysis Methods for Catalyst Characterization

How can we measure these important parameters? We need a technique which can count the number of chemisorption sites and tell us something about how tightly these sites hold onto chemisorbing molecules. A chemisorbing molecule which binds with a known stoichiometry to a surface site can act as a probe of the surface. For supported metal catalysts, this "selective chemisorption" of molecules on metal surface sites can be monitored by:

✓ Measuring the equilibrium uptake of gas phase molecules by the surface in a closed system (termed "static" or "volumetric" chemisorption)

✓ Detecting how many calibrated pulses of chemisorbing molecules are taken up by the surface (pulse chemisorption)

✓ Analyzing chemisorbed molecules as they desorb from the surface upon heating (temperature programmed desorption)

The first two techniques are performed under isothermal (most often ambient temperature) conditions and hence can offer little information about adsorption strength. The third technique, one in a family of temperature-programmed techniques for catalyst characterization, can provide information about both strength and quantity of chemisorbing sites.

Temperature-Programmed Desorption (TPD) for Catalyst Analysis

Quantitative analysis of model surfaces using temperature-programmed desorption (TPD) techniques was developed in the early 1960's, and numerous excellent review articles have since been published.⁽²˒³⁾ While the technique provides quantitative information about the number of metal surface sites, a number of complications often causes information about the strength of adsorption to be limited to a more qualitative treatment for supported metal catalysts.

TPD Experimental Methodology

In a typical TPD experiment, a powder sample of a supported metal is placed in a glass or stainless steel reactor. The reactor is then enclosed in a furnace and is connected to gas delivery lines. The sample is subjected to a pretreatment which generates reduced metal surface sites with clean, bare surfaces. The gas flow is then switched to permit the chosen chemisorbing gas to flow over the catalyst, usually at ambient temperature. After an appropriate time, the flow is again switched to an inert gas and the void volume inside the reactor is flushed. Under inert gas flow, the sample temperature is raised in a controlled manner. This heating provides energy to the chemisorbed species, and when these species gain sufficient energy, they desorb from the surface into the stream of inert gas. This stream is swept into a detector which has been calibrated to quantify the number of probe gas molecules in the stream.

This number, together with the known chemisorption stoichiometry, gives the number of surface sites on the supported metal catalyst. The detector signal is also monitored as a function of the sample temperature, which provides a measure of the strength of adsorption on the surface. Molecules that desorb at low temperatures are only weakly held, while high-temperature desorption indicates a stronger chemisorption interaction. Hence, the TPD experiment describes not only the number and strength of chemisorption sites, but it may also describe the heterogeneous chemistry of the surface sites.

Understanding TPD Process Flow

This process is shown schematically in Figure 2 for H₂ chemisorption and TPD on a Ni/SiO₂ catalyst where H₂ : Ni = 1 : 2 for dissociative hydrogen chemisorption. It is easy to see from this brief description that a TPD experiment involves several critical measurements. Gas flow rates must be controlled, and gas switching must be possible. A linear change in temperature with respect to time is required, and an on-stream gas detector should be employed. Typically, highly sensitive thermal conductivity detectors (TCD) are used in tandem with chemisorption.

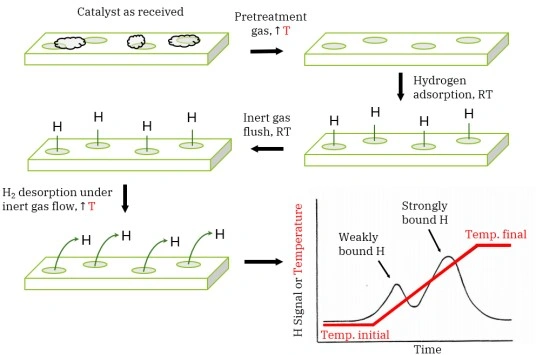

Figure 2. Schematic step-by-step process of H₂ temperature-programmed desorption (TPD) experiment on a Ni/SiO₂ catalyst, with Ni surface sites depicted as green ovals.

Automated Chemisorption Analyzers: AMI-300 and AMI-400 Series

The AMI-300 Series and AMI-400 Series Chemisorption Analyzers can accomplish these tasks and much more. The AMI-300 and AMI-400 offer fully automated operation of a TPD experiment from beginning to end. AMI Chemisorption Analyzers perform this task according to parameters and conditions selected by an operator from a menu of instructions in the AMI software. After this initial setup procedure, the experiment proceeds in an operator-independent mode while collecting data from a sensitive TCD detector.

Key Features of AMI Chemisorption Instruments

The unique features of the AMI-300 and AMI-400 are highlighted in Figure 3.

Figure 3. Feature comparison of AMI-300 Series (left) and AMI-400 Series (right) Chemisorption Analyzers for catalyst characterization.

Both systems provide comprehensive capabilities for:

Temperature-Programmed Reduction (TPR) - Evaluate reducibility and metal-support interactions

Temperature-Programmed Oxidation (TPO) - Characterize oxidation behavior of reduced catalysts

Temperature-Programmed Desorption (TPD) - Analyze desorption strength and binding energies

Pulse Chemisorption - Quantify active metal dispersion and surface area

BET Surface Area Analysis - Determine surface area using dynamic nitrogen physisorption

These advanced chemisorption analyzers combine highly sensitive and precise measurements with automated, user-friendly instrument design, making catalyst characterization workflows more efficient and reliable.

Conclusion: The Importance of Chemisorption Techniques in Catalyst Development

Chemisorption techniques are invaluable for solid catalyst characterization, offering detailed chemical information on the quantity and relative strength of chemical bonds between a gas reactant and surface catalytic sites. With proper instrumentation, these chemisorption techniques can be performed accurately and independently. The AMI-300 and AMI-400 series of Chemisorption Analyzers combine highly sensitive and precise measurements with automated, user-friendly instrument design.

For researchers and laboratories seeking comprehensive catalyst characterization solutions, AMI Instruments provides a complete range of analytical instruments for materials science, catalysis, and surface analysis.

References

(1) Mehta, P.; Barboun, P.; Go, D. B.; Hicks, J. C.; Schneider, W. F. Catalysis enabled by plasma activation of strong chemical bonds: A review. ACS Energy Lett. 2019, 4, 1115-1133.

(2) Bhatia, S.; Beltramini, J.; Do, D. D. Temperature programmed analysis and its applications in catalytic systems. Catal. Today, 1990, 7, 309-438.

(3) Herold, F.; Gläsel, J.; Etzold, B. J. M.; Rønning, M. Can temperature-programmed techniques provide the gold standard for carbon surface characterization? Chem. Mater. 2022, 34, 8490-8516.
