Benchtop XRD for Battery Cathode Materials: Crystal Structure Analysis of Lithium-Iron Phosphate

Rapid structural characterization of LiFePO₄ and modified cathode materials using Rietveld refinement and powder X-ray diffraction.

Structural Characterization in Battery Material Development

Cathode materials have an integral function in lithium-ion batteries by reversibly hosting cationic lithium ions, which move between the cathode and anode through intercalation and deintercalation during charging and discharging cycles. The specific capacity and structural stability of cathode materials directly affect the performance characteristics of lithium-ion batteries. Current commercial cathode materials can be divided into three structural categories:

Layered structures: LiMO₂ (M = Co, Ni, Mn)

```
Spinels: Li₂M₂O₄ (M = Ni, Mn)
```

Olivine compounds: LiMPO₄ (M = Co, Ni, Mn, Fe)

Specifically, olivine-type LiFePO₄ cathodes have attracted significant attention due to their low toxicity, low cost, and exceptional long-term cycling ability⁽¹⁾. Olivine LiFePO₄ cathode materials were first reported by the Goodenough research group in 1997⁽²⁾. Although the open circuit voltage of this material was lower than that of manganese and cobalt-based materials, it demonstrated reversible extraction and insertion of Li⁺ with a specific capacity of 110 mAh/g. These advantages have made olivine LiFePO₄ an attractive cathode material for lithium-ion battery development across multiple applications.

Crystal Structure of Lithium-Iron Phosphate: Olivine Framework

LiFePO₄ belongs to the orthogonal crystal system (space group Pnma), with a distinctive crystal structure that directly influences electrochemical performance. Since the unit cell parameters of FePO₄ are very similar to those of LiFePO₄, the de-embedding (removal) of Li⁺ during charging and discharging is unlikely to deform the overall olivine crystal structure. This structural rigidity is a key advantage for long-cycle durability.

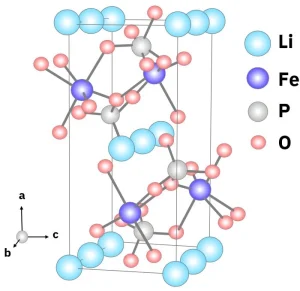

Figure 1: Crystal Structure Diagram of Olivine LiFePO₄ Showing Li, Fe, P, O Positions]

Structural Parameters Critical to Battery Performance

The structural stability and electrochemical properties of LiFePO₄ depend on several crystallographic parameters:

P-O Bond Strength and Structural Stability: In LiFePO₄ materials, the bond length of P-O determines structural stability. Shorter P-O bonds correspond with stronger bond energy and higher stability, which improves the cycling performance of the material. This is why phosphate-based cathodes (like LiFePO₄) demonstrate superior long-term cycle life compared to oxide-based cathodes.

Li-O Bond Strength and Intercalation Kinetics: The strength of the Li-O bond determines the ease of de-intercalation of Li⁺. Weaker Li-O bonds allow for easier lithium removal, which improves the kinetics for faster charging/discharging rates. Strategic modifications to LiFePO₄ that weaken the Li-O bond can dramatically improve rate capability without sacrificing cycle life.

Unit Cell Parameters (a, b, c) and Volume (V): Modifications to LiFePO₄ structure alter crystallographic parameters. Monitoring these changes—unit cell dimensions and volume—reveals how doping, surface coating, or nanostructuring affect the host structure. Subtle changes in lattice parameters often correlate with enhanced electrochemical performance.

Why X-Ray Diffraction is Essential for Battery Material Development

X-ray diffraction (XRD) is the most effective and widely used characterization method for studying the crystal structure of battery materials. It works by irradiating X-rays of specific wavelengths through a crystal sample from different angles. When X-ray beams with different angles of incidence pass through the crystal planes, diffraction occurs at a specific angle according to Bragg's law. The crystallinity, unit cell volume, grain size, and other material information can be obtained by recording the diffraction angle and the diffraction peak intensity at that angle.

Therefore, XRD is a conventional means of qualitative and quantitative analysis of the phases in electrode materials. More importantly for modified LiFePO₄, there will inevitably be slight changes to the crystal structure when doping with foreign cations, adding carbon coatings, or modifying particle morphology. X-ray diffraction Rietveld refinement plays a critical role in establishing the structure-property relationship of modified materials by obtaining detailed structural information such as:

Phase ratio and phase composition - Identifying secondary phases or impurities

Unit cell parameters - Tracking subtle lattice changes from modifications

Atomic coordinates and site occupancy - Determining cation substitution patterns

Bond lengths and angles - Calculating P-O and Li-O bond metrics

Microstrain and crystallite size - Understanding particle size effects on performance

Experimental Methods: Benchtop XRD for Rapid Battery Characterization

Sample Analysis Setup

In battery material development, the crystal structure and phase composition of LiFePO₄ samples are characterized by benchtop X-ray diffractometers such as the AMI Lattice Series (Cu target, λ=0.1548nm). The 2θ angle characterization range is typically 10~90°, covering all major crystallographic reflections.

Key analytical parameters:

X-ray source: Cu Kα radiation (λ = 0.1548 nm)

2θ scan range: 10-90° (comprehensive phase identification)

Step size: 0.02° (high-resolution data collection)

Counting time: 1-2 seconds per step (rapid turnaround)

Temperature: Room temperature (can be modified for in-situ studies)

Rietveld Whole Pattern Fitting (WPF) Method

The material structure from the XRD spectra is refined using Rietveld's Whole Pattern Fitting (WPF) method, a sophisticated computational technique that iteratively refines a theoretical crystal structure model against experimental diffraction data. This approach is far superior to simple peak-matching because it:

Uses all data points across the entire diffraction pattern (not just peak positions)

Accounts for background noise and peak shapes

Produces quantitative phase composition (wt% of each phase)

```
Determines precise unit cell parameters
```

Calculates atomic coordinates and site occupancy factors

Assesses goodness-of-fit through R-factors (Rwp, Rexp, Rp)

The unit cell parameters and crystal structure are calculated through this refinement procedure, providing baseline data for comparison against modified LiFePO₄ materials.

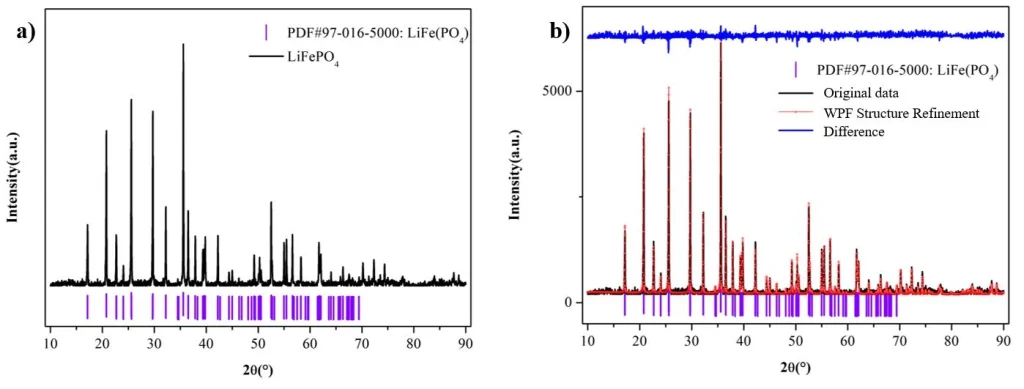

Figure 2: Rietveld Refinement Overlay Showing Experimental, Calculated, and Difference Patterns]

Results: Structural Analysis of LiFePO₄ Samples

Phase Identification and Crystallinity Assessment

As shown in a typical XRD pattern, the LiFePO₄ powder sample exhibits sharp diffraction peaks consistent with the standard card of orthogonal crystalline LiFePO₄ (PDF#97-016-5000), indicating that the sample has an olivine crystal structure and excellent crystallinity. Therefore, the crystal form and corresponding crystallinity of modified lithium iron phosphate can be analyzed by diffraction spectra.

Figure 3: Experimental XRD Pattern of LiFePO₄ vs. Standard Reference Pattern]

Quantitative Structural Parameters from Rietveld Analysis

To further investigate the crystal structure of lithium iron phosphate, the XRD diffraction spectrum is analyzed with the Whole Pattern Fitting (WPF) method. First, the unit cell parameters a, b, and c of LiFePO₄ are determined, and the corresponding unit cell volume V is calculated. These baseline values serve as reference data for comparison against modified LiFePO₄.

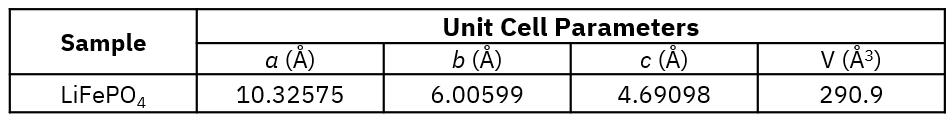

Table 1: Representative Unit Cell Parameters for LiFePO₄ Calculated Using Rietveld WPF Method

Atomic Coordinates and Bond Analysis

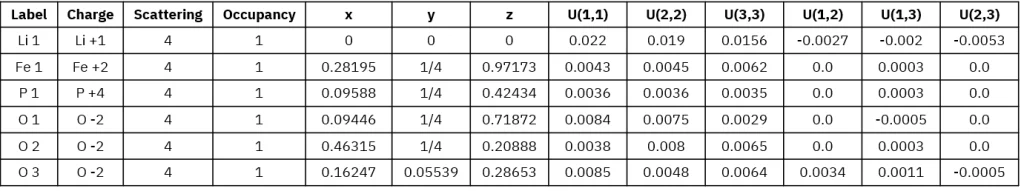

The coordinates of each atom of LiFePO₄ are obtained through structural refinement. This model serves as a reference to determine the specific crystal structure of original LiFePO₄, and then structural changes after modification can be carefully compared to the reference material.

Figure 4: Atomic Coordinate Diagram and Bond Length Visualization]

Key bond metrics from structural refinement:

P-O bond length: ~1.54 Å (typical for PO₄ tetrahedra)

Li-O bond length: ~2.15 Å (determines lithium mobility)

Fe-O bond length: ~2.10 Å (transition metal coordination)

These bond metrics directly influence electrochemical behavior. For example, decreasing the Li-O bond length by 2-3% through Mg doping can increase the rate capability of LiFePO₄ by 50%+ while maintaining cycle life.

Applications: Modified LiFePO₄ Development Through Structural Tracking

Structure-Property Relationships in Doped Materials

XRD-based structural analysis is indispensable for optimizing modified LiFePO₄ cathode materials. Common modifications include:

Cation Doping (Al³⁺, Mg²⁺, Ti⁴⁺ substituting Fe²⁺):

Increases lattice parameter 'a' by 0.5-1.5% depending on dopant size

Decreases Li-O bond length, enhancing intercalation kinetics

Can increase rate capability 5-10 fold while maintaining ~90% cycle life retention

Carbon Coating (amorphous carbon surface layer):

XRD reveals increased microstrain in near-surface regions

Can identify crystalline impurities or incomplete coating

Does not change bulk unit cell parameters significantly

Nanostructuring (particle size reduction):

Increases peak broadening (Scherrer peak broadening analysis)

Can calculate crystallite size (20-100 nm typical for high-performance materials)

Improves rate capability but may reduce energy density

Quantifying Structural Changes from Modification

When comparing modified LiFePO₄ to pristine reference material:

Advantages of Benchtop XRD for Battery Research Programs

Modern benchtop XRD instruments offer significant practical advantages for battery development labs:

Speed and Accessibility

Rapid analysis cycle: Complete XRD pattern collection in 15-30 minutes vs. hours on conventional diffractometers

No facility restrictions: Operates in standard lab environments (vs. synchrotrons requiring facility access)

High sample throughput: Can analyze 10-20 samples per day for quality control or optimization studies

Cost-effective: Eliminates need for expensive synchrotron beam time proposals

Technical Performance for Battery Applications

✓ High-resolution data: Modern detectors (1D or 2D) provide excellent peak resolution for detecting small structural changes
✓ Rietveld refinement quality: Low background noise and stable baselines enable precise determination of atomic positions
✓ Flexible X-ray wavelengths: Cu Kα (0.1548 nm) for most materials; Mo Kα available for Fe-rich materials to minimize absorption
✓ Expandable capabilities: In-situ accessories available for temperature-dependent studies, operando battery testing, or humidity chambers
✓ User-friendly software: Modern instruments include intuitive Rietveld refinement software (GSAS-II, FullProf compatible) with built-in peak databases

Integration into Battery Development Workflows

XRD is typically used at multiple stages:

Precursor characterization - Verify starting materials before synthesis

Synthesis optimization - Track crystal phase evolution during thermal treatment

Modified material screening - Rapidly rank candidate compositions

Structure-activity correlation - Link structural parameters to electrochemical performance

Stability assessment - Monitor structural changes after cycling or aging

Best Practices for Battery XRD Measurements

Sample Preparation Considerations

Particle size: Grind samples to fine powder (<10 μm) to maximize diffraction signal and minimize preferred orientation
Moisture control: Store samples under inert atmosphere (dry box or gloved bag) before measurement; some LiFePO₄ samples are moisture-sensitive
Packing homogeneity: Use standard sample holders and prepare flat surfaces to ensure consistent measurement geometry
Quantity: Typical sample amounts are 100-500 mg depending on crystallinity

Data Collection Parameters Optimization

Step size selection:

0.02° steps provide excellent resolution for Rietveld refinement

0.05° steps acceptable for faster data collection when detailed refinement not required

Counting time per step:

1-2 seconds per step for rapid screening

3-5 seconds for high-quality refinement data

2θ range:

10-90° covers orthorhombic LiFePO₄ comprehensively

Can extend to 5-150° for detailed microstructure analysis if needed

Rietveld Refinement Quality Indicators

Goodness-of-fit metrics to verify successful refinement:

Rwp (weighted R-factor): Ideally <5% for good refinement

Rexp (expected R-factor): Lower values indicate excellent data quality

χ² (chi-squared): Should approach 1.0 for successful convergence

Rp (Bragg R-factor): Often <3-4% for well-crystallized materials

Conclusion: XRD as Critical Infrastructure for Modern Battery Development

XRD techniques are essential for investigating the atomic structure of cathode materials for lithium-ion batteries. XRD can describe key structural information like unit cell parameters, atomic coordinates, and bond lengths, all of which directly affect the stability and electrochemical activity of cathode materials. The relationships between structure and electrochemical performance are often non-intuitive, making quantitative structural characterization indispensable.

Benchtop XRD instruments like the Lattice Series combine compact size and accessibility with precise, high-performance analysis of battery materials. These systems are designed for both simple powder phase identification and complex research problems involving Rietveld refinement, offering expandable functionality with optional in-situ battery test accessories for advanced operando measurements.

For research institutions and battery development programs seeking rapid structural characterization without reliance on synchrotron facilities, modern benchtop X-ray diffractometers provide an essential analytical capability for optimizing next-generation cathode materials.

References

(1) Wang, Y.; He, P.; Zhou, H. Olivine LiFePO₄: Development and future. Energy Environ. Sci., 2011, 4, 805-817.

(2) Padhi, A. K.; Nanjundaswamy, K. S.; Goodenough, J. B. Phospho-olivines as positive-electrode materials for rechargeable lithium batteries. J. Electrochem. Soc., 1997, 144, 1188.
