Learn how MOF gas separation enables selective adsorption of small hydrocarbons at room temperature using static adsorption isotherms from AMI Instruments.
Separating light hydrocarbons is one of the most energy-intensive processes in the petrochemical industry. Conventional cryogenic distillation can accomplish these separations, but the infrastructure and operating costs associated with maintaining ultra-low temperatures make it difficult to justify for many separation scenarios. MOF gas separation offers a fundamentally different approach: selective adsorption at ambient conditions, driven by pore chemistry and molecular geometry rather than temperature. This article presents static adsorption isotherm data collected on three MOF materials using the AMI Micro 300 physisorption analyzer, and evaluates the selectivity of each material toward specific light hydrocarbon pairs relevant to petrochemical processing.
MOF gas separation is a process in which porous crystalline materials called metal-organic frameworks selectively capture one component of a gas mixture based on differences in molecular size, shape, or chemical affinity. MOFs are constructed from metal nodes linked by organic ligands, creating internal pore structures that can be tuned for specific guest molecules. When a gas mixture contacts an MOF under controlled pressure conditions, certain components adsorb strongly while others pass through, enabling separation without cryogenic cooling. For light hydrocarbons such as acetylene (C2H2), ethylene (C2H4), propane (C3H8), and propylene (C3H6), this selectivity is particularly valuable because these molecules have similar boiling points and molecular sizes that make distillation-based separation costly.
C2 hydrocarbons are foundational raw materials in the production of polymers, rubbers, and specialty chemicals. Acetylene ethylene separation is a specific bottleneck in polymer-grade ethylene production: even trace quantities of acetylene in an ethylene feed stream can poison polymerization catalysts, requiring removal to very low concentration levels before the stream can be used. Similarly, propylene propane separation from liquefied petroleum gas (LPG) mixtures and refinery off-gases is difficult because these two molecules have nearly identical physical properties. Current industrial practice relies heavily on cryogenic distillation for both of these separations. This approach is effective but carries significant costs:
Cryogenic systems require large capital investment in refrigeration infrastructure
Operating costs scale directly with energy consumption for maintaining low temperatures
Distillation columns require continuous energy input to maintain separation efficiency across varying feed compositions
The process is difficult to scale down for smaller or intermittent production volumes
MOF gas separation offers a path to performing these separations at or near ambient temperature and pressure. The core requirement is finding MOF materials that exhibit high selectivity for the target component under conditions that are practical for industrial application.

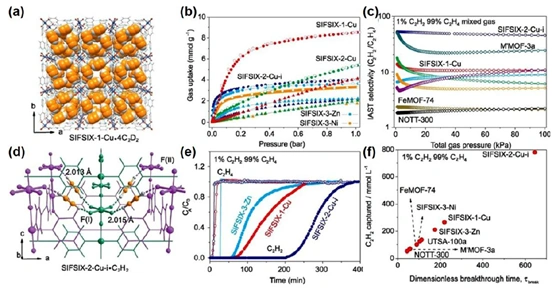

MOFs have several structural properties that make them strong candidates for selective adsorption in light hydrocarbon separation applications. Their pore size can be designed at the sub-nanometer level, creating environments where small differences in molecular geometry control which species can enter and adsorb. Their internal surfaces can be functionalized with chemical groups that interact preferentially with specific molecular features, such as triple bonds or pi electron systems. Published research has demonstrated the potential of specific MOF families for non-cryogenic separation. The SIFSIX series, for example, has shown strong selectivity in acetylene ethylene separation, attributed to pi-H interactions between the triple bond of acetylene and exposed SiF62- groups within the framework. Flexible frameworks such as sql-SIFSIX-bpe-Zn can undergo reversible structural transformations in the presence of C2H2, providing an additional mechanism for selective uptake. MIL-142A, a cross-linked iron MOF, has demonstrated capacity and selectivity for propane adsorption, making it useful for extracting methane from mixed C1/C2/C3 streams under ambient conditions. The results reported here extend this body of work by measuring the adsorption behavior of acetylene, ethylene, propane, and propylene on three MOF materials under controlled static conditions, providing direct experimental evidence of selectivity relevant to two important industrial separation targets.
The AMI Micro 300 is a high-precision static physisorption analyzer designed for collecting adsorption and desorption isotherms across a wide range of gases and pressures. Its three independently operating analysis ports allow simultaneous measurements on multiple samples, and its pressure resolution supports accurate isotherm collection at low uptake levels where selectivity discrimination is most critical. For this MOF gas separation study, static adsorption isotherms were collected on MOF-1, MOF-2, and MOF-3 at room temperature using pressures up to 100 kPa. The gases evaluated were C2H2, C2H4, C3H6, and C3H8. Room temperature measurement is significant because it confirms that the observed selectivity occurs under conditions that are practical for non-cryogenic separation process design. The AMI BTsorb 100 dynamic sorption analyzer, designed for breakthrough curve analysis, competitive adsorption, and kinetic studies, was identified as the appropriate next step for validating these findings under flow conditions that more closely simulate industrial gas separation. Dynamic breakthrough testing was not performed as part of this study.
Sample and Measurement Conditions
Three MOF materials, designated MOF-1, MOF-2, and MOF-3, were evaluated
Static adsorption isotherms were collected at room temperature
Pressure range: 0 to 100 kPa
Gases measured: acetylene (C2H2), ethylene (C2H4), propylene (C3H6), and propane (C3H8)
All isotherms were collected using the AMI Micro 300 static physisorption analyzer
Gas Pairs Evaluated
C2H2 versus C2H4 on MOF-1, targeting the acetylene ethylene separation application relevant to polymer-grade ethylene production
C3H6 versus C3H8 on MOF-2 and MOF-3, targeting propylene propane separation from LPG and refinery streams

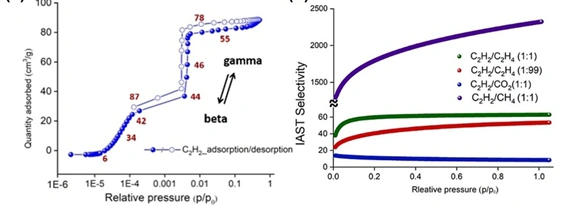

The static adsorption isotherms collected on MOF-1 showed a pronounced difference in uptake between acetylene and ethylene across the full pressure range tested. Acetylene displayed a steep increase in adsorption between 4 and 6 kPa, followed by saturation at higher pressures. The sharp uptake onset at low pressure is characteristic of strong adsorbent-adsorbate interactions and indicates that the MOF framework provides a highly favorable adsorption environment for C2H2 at conditions well below atmospheric pressure. Ethylene, by contrast, showed negligible adsorption across the entire 0 to 100 kPa pressure range. The near-zero uptake of C2H4 under conditions where C2H2 saturates the material confirms high selectivity for acetylene over ethylene in this MOF. This behavior is consistent with the known interaction mechanism in fluorinated MOFs, where pi-H interactions between the acetylene triple bond and exposed SiF62- groups within the framework provide a preferential binding site for C2H2 that ethylene cannot access to the same degree. Implications for Polymer-Grade Ethylene Production The adsorption profile of MOF-1 is well suited to the trace acetylene removal problem in ethylene processing. The steep uptake onset at low pressure means the material begins capturing acetylene effectively at partial pressures relevant to trace-level contamination scenarios. The negligible uptake of ethylene means that the product stream passing through an MOF-1 bed would retain its ethylene content without co-adsorption losses.
Both MOF-2 and MOF-3 showed strong and consistent selectivity for propylene over propane across the 0 to 100 kPa pressure range, confirming their potential for propylene propane separation in industrial streams. Propylene adsorption on both materials reached significant uptake levels with increasing pressure, following a gradual isotherm shape that indicates accessible pore volume is progressively filled as pressure increases. Propane showed no detectable adsorption on either material across the full pressure range tested. The complete absence of propane uptake while propylene adsorbs strongly suggests that the selectivity mechanism involves steric effects and kinetic diameter differences between the two molecules, rather than a purely energetic preference. Propylene (C3H6) and propane (C3H8) differ by the presence of a carbon-carbon double bond in propylene, which affects both molecular geometry and the electronic character of the molecule in ways that influence interaction with the MOF internal surface. The fact that both MOF-2 and MOF-3 showed this selectivity pattern suggests it is a reproducible characteristic of materials in this structural family, which strengthens confidence in the result as a material property rather than a measurement artifact. Implications for Propylene Recovery and Purification The propylene-selective behavior of MOF-2 and MOF-3 is directly relevant to propylene recovery from LPG streams and purification from propane-containing mixtures. An adsorbent that captures propylene with no co-adsorption of propane would allow high-purity propylene to be recovered from the adsorbed phase following regeneration, without requiring cryogenic conditions to achieve the separation.
The data reported here was collected under static equilibrium conditions, which is the appropriate starting point for MOF gas separation material screening. Static isotherms establish whether a material has the fundamental thermodynamic capacity and selectivity to be worth investigating further. The next stage in developing these materials for practical applications involves dynamic testing under flow conditions that simulate how an adsorption bed would operate in an industrial process. This includes measuring breakthrough curves, evaluating competitive adsorption in mixed gas feeds, and assessing cycle stability across adsorption and regeneration steps. The AMI BTsorb 100 is designed for this type of evaluation. It supports breakthrough curve analysis, competitive adsorption measurements, and kinetic analysis under controlled flow conditions, making it a natural complement to the Micro 300 for researchers moving from material screening to process development. Together, these two platforms support a full evaluation workflow from initial static adsorption isotherm characterization through dynamic performance testing.
For research groups and development teams working on MOF gas separation, the ability to efficiently screen candidate materials using static isotherms before committing resources to dynamic testing is a practical workflow advantage. The AMI Micro 300 supports this screening stage with the pressure resolution and multi-port capability needed to collect reliable isotherm data across multiple MOF samples and gas pairs within a manageable timeframe. The results reported here illustrate what this screening stage can reveal: clear differentiation between high-selectivity and low-selectivity gas-MOF pairs, identification of the pressure range where uptake occurs, and confirmation that selectivity is reproducible across materials with similar structural characteristics. These findings provide the data foundation needed to prioritize materials for dynamic testing and to estimate the operating conditions, such as adsorption pressure and temperature, that would be relevant for process design.
Static isotherm characterization of MOF materials for light hydrocarbon separation is appropriate when:
The goal is to screen a library of candidate materials and identify which have thermodynamic selectivity for a target separation
The target separation involves gas pairs with similar physical properties, such as in acetylene ethylene separation or propylene propane separation, where distillation-based methods are costly
Non-cryogenic separation is a design requirement and ambient-temperature viability needs to be established experimentally
Results from static adsorption isotherms will be used to design or prioritize subsequent dynamic breakthrough testing
Research teams need quantitative uptake data at defined pressure conditions to support selectivity calculations or process modeling
MOF gas separation offers a technically credible path toward energy-efficient light hydrocarbon separation at ambient conditions. The static adsorption isotherm data collected on MOF-1, MOF-2, and MOF-3 using the AMI Micro 300 demonstrates clear and reproducible selectivity: MOF-1 achieves effective acetylene ethylene separation by adsorbing acetylene strongly while showing negligible ethylene uptake, and both MOF-2 and MOF-3 accomplish propylene propane separation by capturing propylene with no detectable propane adsorption across the full 0 to 100 kPa pressure range tested. These results establish the thermodynamic basis for two industrially relevant non-cryogenic separations and identify specific materials worth advancing to dynamic testing. The BTsorb 100 from AMI instruments provides the analytical capability needed for that next stage, completing a platform that supports MOF evaluation from initial material screening through dynamic process validation. For research groups working at the intersection of materials chemistry and process development, this combination of static and dynamic characterization tools provides a complete and practical workflow for assessing whether MOF gas separation can replace or supplement conventional cryogenic approaches in light hydrocarbon processing.
(1) Nawaz, Z. Light alkane dehydrogenation to light olefin technologies: A comprehensive review. Rev. Chem Eng. 2015, 31, 413-436. (2) Banerjee, D.; Liu, J.; Thallapally, P. K. Separation of C2 hydrocarbons by porous materials: Metal organic frameworks as platform. Comments Inorg. Chem. 2015, 35, 18–38. (3) Cui, X.; Chen, K.; Xing, H.; Yang, Q.; Krishna, R.; Bao, Z.; Wu, H.; Dong, X.; Han, Y.; Li, B.; Ren, Q.; Zaworotko, M. J.; Chen, B. Pore chemistry and size control in hybrid porous materials for acetylene capture from ethylene. Science, 2016, 353, 141-144. (4) Shivanna, M.; Otake, K.; Song, B.-Q.; van Wyk, L. M.; Yang, Q.-Y.; Kumar, N.; Feldmann, W. K.; Pham, T.; Suepaul, S.; Space, B.; Barbour, L. J.; Kitagawa, S.; Zaworotko, M. J. Benchmark acetylene binding affinity and separation through induced fit in a flexible hybrid ultramicroporous material. Angew. Chem., Int. Ed. 2021, 60, 20383-20390. (5) Yua, Y.; Wu, H.; Xu, Y.; Lv, D.; Tu, S.; Wu, Y.; Li, Z.; Xia, Q. Selective extraction of methane from C1/C2/C3 on moisture-resistant MIL-142A with interpenetrated networks. Chem. Eng. J. 2020, 395, 125057. (6) Lin, Z.-T.; Liu, Q.-Y.; Yang, L.; He, C.-T.; Li, L.; Wang, Y.-L. Fluorinated biphenyldicarboxylatebased metal-organic framework exhibiting efficient propyne/propylene separation. Inorg. Chem. 2020, 59, 4030-4036. (7) Wen, H.-M.; Li, L.; Lin, R.-B.; Li, B.; Hu, B.; Zhou, W.; Hu, J.; Chen, B. Fine-tuning of nano-traps in a stable metal-organic framework for highly efficient removal of propyne from propylene. J. Mater. Chem. A, 2018, 6, 6931-6937.
MOF gas separation uses porous crystalline materials called metal-organic frameworks to selectively capture one component of a gas mixture. MOFs contain a network of pores and channels at the molecular scale. In gas separation, a specific component adsorbs within these pores based on size compatibility, surface chemistry interactions, or both, while other components pass through. This selectivity enables separation without the energy costs of cryogenic distillation.
A static adsorption isotherm is a graph of the amount of gas adsorbed by a material as a function of gas pressure at a fixed temperature. It is measured by equilibrating the material with gas at a series of pressure steps and recording the quantity adsorbed at each step. Isotherms show how much of a gas the material can hold at different pressures and indicate whether adsorption is strong or weak at pressures relevant to the intended application.
Ethylene used as a monomer for polymer production must meet very low acetylene specifications because acetylene poisons the catalysts used in polymerization reactions. Even at trace levels, acetylene contamination reduces catalyst efficiency and product quality. Removing acetylene selectively from ethylene streams is a critical step in producing polymer-grade ethylene, and MOF materials that can accomplish this at ambient temperature without co-adsorbing ethylene are valuable for this application.
Static testing measures equilibrium adsorption isotherms under fixed temperature and pressure conditions. It provides fundamental thermodynamic data including uptake capacity, selectivity, and adsorption onset pressure. Dynamic testing passes a gas stream through a packed bed of the material and measures how long it takes for each component to break through the bed. Dynamic testing better simulates industrial process conditions and provides information on kinetics, column efficiency, and cycle performance that static isotherms alone cannot capture.

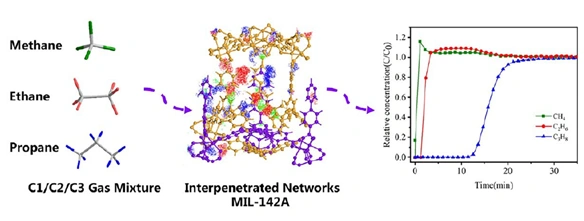

Breakthrough curve analysis is a dynamic measurement in which a mixed gas feed is passed through a column packed with an adsorbent material. The concentration of each component in the outlet gas is monitored over time. A component that adsorbs strongly takes longer to appear in the outlet and shows a delayed breakthrough curve. The shape and timing of these curves provide information on separation efficiency, adsorption kinetics, and the practical capacity of the material under flow conditions.
