Chemisorption analysis is more sensitive to experimental protocol than almost any other technique in catalyst characterization. The adsorbate gas, the adsorption temperature, the contact time, and the stoichiometric factor used to convert uptake into surface area or dispersion: each of these variables can shift the calculated result substantially, independently of what is actually happening on the catalyst surface.
Chemisorption analysis is the measurement of adsorbate uptake on the active surface of a supported metal catalyst to determine metal dispersion, active surface area, or site density. Unlike physisorption, which measures total accessible surface through weak van der Waals interactions, chemisorption involves the formation of chemical bonds between the probe gas and the metal surface. Only surface-exposed metal atoms participate in this process, making chemisorption the technique most directly relevant to catalytic behavior. The challenge is that the chemical bond between adsorbate and metal depends on the specific metal identity, the crystal face exposed, the crystallite size, and the nature of the support interaction. These factors affect not only how much gas adsorbs, but also how quickly it adsorbs, at what temperature it desorbs, and what fraction of the uptake is irreversible. Selecting a protocol that is appropriate for the specific metal-support-adsorbate system is therefore not a generic best-practice decision. It requires understanding the adsorption energetics of the specific system and choosing conditions that allow genuine surface coverage to be achieved and quantified without introducing artifacts from side reactions, spillover, or incomplete equilibration.

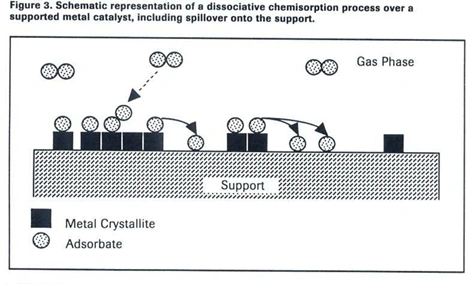

Common Adsorbates and Their Applications The choice of probe gas determines which surface sites are measured and what side reactions may interfere. Table 1 of the source document lists the most common adsorbates along with their appropriate metal systems and safety considerations. The key characteristics of each gas are: H2: Used to study metal reduction behavior on Ni, Rh, Re, V, Co, Pd, Pt, Fe, Cu, Ag, and Au. H2 adsorption is dissociative, meaning each molecule splits into two hydrogen atoms that each occupy one metal surface site, giving a stoichiometric factor of 0.5. For catalysts containing Ag, Cu, or Au, significant heat is released during H2 reduction, requiring slower heating rates to avoid thermal damage. H2 is also subject to spillover on metal oxide supports, which can produce artificially high apparent uptake values. CO: Used on Ni, Pd, Pt, and Fe as a milder reducing agent compared to H2, with the additional benefit of being IR-active for spectroscopic speciation. CO can also serve as an FTIR spectroscopic label for surface site identification. On Ni, Fe, Ru, and Co, CO can form toxic, volatile metal carbonyl complexes at elevated temperatures, which must be avoided through careful temperature control. CO2: Used to study basic surface sites on V, Y, Mg, Fe, Al2O3, ZrO2, and TiO2. Samples must be pre-oxidized before CO2 chemisorption, and some metals including Mg, Al, Ti, and Zr may react with CO2 directly. O2: Used to study coke content by oxidizing coke deposits to CO2, and also to identify oxidation-active species on catalysts containing coke, Ag, and Au. Ru, Re, and V can form toxic, volatile oxides with O2, requiring controlled conditions. NH3: Used to study total acid sites on Al2O3, SiO2, ZrO2, TiO2, and zeolites. NH3 can reach into small pores and is sensitive to a wide range of site strengths, but samples containing Ag must be fully reduced before NH3 exposure to prevent Ag3N formation. Pyridine: Used to study acid sites in more detail on Al2O3, SiO2, ZrO2, TiO2, and zeolites, particularly for distinguishing Lewis versus Bronsted acid sites when paired with IR spectroscopy. Catalysts must be free of trace oxidizing agents and strong acids before pyridine exposure. The Activated Chemisorption Problem Not all metal-gas interactions reach equilibrium at room temperature. When the activation energy for chemisorption is high, the process is classified as activated chemisorption. Adsorption proceeds slowly and may require higher temperatures or longer contact times to achieve full surface coverage. Hydrogen chemisorption on supported cobalt is a well-documented example. At room temperature, H2 adsorption on Co/Al2O3 yields minimal uptake because the activation barrier prevents rapid dissociation and binding of hydrogen at the cobalt surface. The resulting TPD signal after room-temperature adsorption is correspondingly small. When adsorption is instead performed at 100 degrees C followed by cooling in hydrogen before the TPD experiment, full surface coverage is achieved and the TPD signal is substantially larger, reflecting the true site density of the cobalt surface. This result, shown directly in Figure 2 of the source document comparing TPD profiles from room-temperature and 100-degree-C adsorption on Co/Al2O3, illustrates that adsorption temperature is not a secondary experimental variable. For activated chemisorption systems, the measured uptake is dominated by kinetics rather than thermodynamics at ambient temperature, and results from room-temperature experiments cannot be interpreted as equilibrium values.

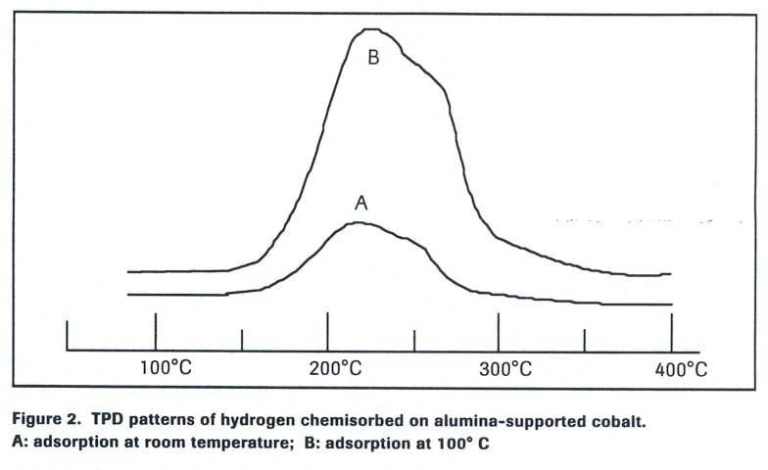

Three parameters control adsorption conditions in chemisorption analysis: temperature, time, and gas concentration. Temperature must be high enough to provide the activation energy needed for chemisorption, but low enough to avoid promoting side reactions. CO disproportionation via the Boudouard reaction (2CO to C + CO2) occurs at elevated temperatures and deposits carbon on the catalyst surface, distorting uptake measurements. Metal carbonyl formation by CO on Ni, Fe, Ru, or Co at inappropriate temperatures creates a similar problem. Temperature must be selected specifically for the metal-adsorbate pair being studied. Time must be sufficient for the adsorption process to reach equilibrium. For non-activated systems this is straightforward, but for activated chemisorption systems like H2 on Co, extended contact time at elevated temperature is required to achieve full surface saturation. Underprescribed adsorption time systematically underestimates true site density. Concentration should be set so that excess adsorbate is present relative to available surface sites, ensuring that surface coverage is not limited by gas-phase availability. The practical starting point recommended in the source document is to begin chemisorption at temperatures between 100 and 200 degrees C for 30 to 90 minutes, followed by an inert gas flush at lower temperature to remove weakly held species before TPD. The Spillover Risk Regardless of which conditions are selected, the risk of spillover must be managed. Spillover occurs when adsorbate molecules, typically dissociated hydrogen atoms, migrate from metal crystallites onto the support material. This is a kinetically slow process, but at high adsorption temperatures or with long contact times, it can contribute meaningfully to the total uptake signal. The TCD detector cannot distinguish between hydrogen desorbing from the metal surface and hydrogen desorbing from the support after spillover migration. The result is an overestimated apparent uptake that does not correspond to the actual metal surface area. For this reason, adsorption conditions must balance completeness of metal site coverage against the onset of significant spillover.
Why Stoichiometry Is Not Fixed Stoichiometry in chemisorption analysis refers to the number of adsorbate molecules that bind per surface metal atom. This ratio is required to convert the measured uptake in micromol/g into surface site density or metal dispersion. The problem is that stoichiometry is not a fixed physical constant for most metal-adsorbate combinations. General rules apply for dissociative adsorbates: H2 and O2 both adsorb dissociatively, meaning one molecule binds two surface atoms, giving a stoichiometry of 0.5 (or equivalently, an adsorption stoichiometric factor of 2 metal atoms per molecule). For CO, the situation is more complex. CO stoichiometry varies between 0.5 and 2 depending on the metal, the crystallite size, and the temperature. CO can bind in a linear geometry on atop sites with a stoichiometry of 1, in a bridged geometry spanning two metal atoms with a stoichiometry of 0.5, or in more complex multidentate configurations on oxide surfaces with stoichiometries of 1 to n. Estimating Stoichiometry Without IR Spectroscopy In standard TPD experiments without spectroscopic detection, stoichiometry cannot be measured directly. It must be estimated through indirect comparisons:
Comparing the chemisorption-derived surface area to the BET surface area from nitrogen physisorption
Measuring crystallite size independently by TEM or XRD and using geometric models to estimate what fraction of metal atoms should be surface-exposed
Applying published stoichiometry values for closely related metal-adsorbate systems and checking internal consistency
Each of these approaches involves assumptions that introduce uncertainty into the dispersion calculation. When CO stoichiometry is ambiguous on a new or complex catalyst, the calculated dispersion value carries that ambiguity through to every downstream decision that depends on it.
For IR-active adsorbates, including CO, NO, and selected hydrocarbons, the stoichiometry question can be resolved directly by spectroscopic identification of adsorption geometry. The AMI 300IR integrates a built-in FTIR spectrometer with the chemisorption and TPD workflow, allowing real-time identification of adsorbed species during pulse injection and desorption. During CO pulse chemisorption on a Pt catalyst, the AMI 300IR distinguishes linear CO on atop sites (characterized by a stretching frequency near 2100 to 2000 cm-1) from bridged CO species spanning two Pt atoms (appearing near 1900 to 1750 cm-1). The IR spectrum evolves with each successive pulse as the surface fills, providing a direct record of how adsorption site occupancy changes with coverage. This speciation capability resolves the CO stoichiometry problem directly. Rather than assuming a stoichiometry and accepting the uncertainty that comes with it, the IR data identifies what fraction of adsorbed CO is in linear versus bridged geometry. Combined with the quantitative uptake measurement from the TCD, this allows the stoichiometric factor to be calculated from the actual adsorption geometry rather than assumed from literature precedent. The AMI 300IR is particularly valuable in three scenarios:
Validating adsorption models for complex or bimetallic catalysts where literature stoichiometries for simpler single-metal systems may not apply
Confirming stoichiometries when a catalyst shows anomalous dispersion values that do not align with crystallite size measurements from TEM or XRD
Enhancing TPD interpretation by confirming what surface species are present before the desorption ramp begins, removing ambiguity about whether a desorption peak reflects true chemisorption or a surface reaction product
Eliminating Invalid Dispersion Values The most direct operational benefit of correct adsorbate selection and condition optimization is the elimination of physically invalid results. Dispersion values exceeding 100 percent, which arise from hydrogen spillover when H2 is used on Pt or Pd without appropriate controls, are immediately identifiable as artifacts. However, values below 100 percent that are nonetheless inflated by 20 to 40 percent due to partial spillover are not obviously wrong and will propagate as apparently credible data through formulation decisions and quality control records. Selecting CO over H2 for platinum group metals on metal oxide supports eliminates spillover as a source of error. Setting adsorption temperature within the 100 to 200 degree C window recommended in this document, with an appropriate inert gas flush before TPD, removes weakly held species that would otherwise inflate the irreversible uptake count. Shortening Method Development Time The systematic approach to adsorbate and condition selection presented here reduces the trial-and-error component of method development for new catalyst systems. For a new metal-support combination, starting with the adsorbate appropriate for the metal (from Table 1), setting initial conditions at 150 degrees C for 60 minutes, flushing with inert gas, and running a diagnostic TPD provides a baseline result that can be iteratively refined. Without this structured starting point, method development for activated chemisorption systems in particular can require many experiments to identify the conditions that produce reliable saturation. Resolving Stoichiometry for New or Complex Systems For research programs developing new catalyst formulations where published stoichiometry data does not exist or may not apply, the AMI 300IR eliminates the need to assume a stoichiometric factor. Direct IR identification of CO adsorption geometry on the first set of samples establishes the stoichiometry for that specific metal-support combination. Subsequent measurements can then be made on the standard AMI 300 with the confirmed stoichiometric factor, without the per-sample overhead of in-situ IR detection.
For laboratories where stoichiometry determination is a recurring challenge, or where complex catalyst systems require direct spectroscopic confirmation of adsorption geometry, the AMI 300IR provides the integration of TPD and in-situ FTIR spectroscopy in a single instrument. Its built-in FTIR spectrometer is paired with a proprietary catalyst holder and several heated IR transmission cells, supporting measurements at temperatures relevant to real adsorption conditions rather than at room temperature after sample transfer. Real-time monitoring of adsorbate behavior during adsorption and desorption cycles provides the dynamic IR data needed for speciation. Peak areas in the IR spectrum correlate directly to adsorbed species concentrations, enabling quantitative analysis alongside the TCD-based uptake measurement. For laboratories that need rigorous stoichiometry validation on new catalyst systems before committing to a standard pulse chemisorption protocol, the AMI 300IR provides a direct measurement path that standard chemisorption instruments cannot offer. For routine measurements on well-characterized systems, the AMI 300 delivers the same automated gas handling, precision temperature control, and TCD detection without the in-situ IR capability, at an appropriate specification level for systems where stoichiometry is already established. Both platforms support the full range of adsorbates described in this article, with the gas handling precision and thermal control needed to implement the condition recommendations documented here.
Chemisorption analysis produces reliable data only when the adsorbate, adsorption conditions, and stoichiometric factor are all matched to the specific catalyst system being characterized. The choice of probe gas determines which surface sites are measured and what side reactions may interfere. Adsorption temperature, time, and concentration control whether the surface reaches true saturation or whether the result reflects kinetic limitations or spillover artifacts. The stoichiometric factor used to convert uptake into surface area or dispersion must reflect the actual adsorption geometry rather than a generic literature assumption. For CO on metal catalysts, stoichiometry varies between 0.5 and 2 depending on metal identity, crystallite size, and site geometry. The AMI 300IR resolves this variability directly through in-situ IR spectroscopy that distinguishes linear from bridged CO species at each stage of surface filling, eliminating the need to assume a stoichiometric factor for complex or novel catalyst systems. Properly designed chemisorption analysis protocols that account for all three of these variables produce dispersion, surface area, and site density data that supports formulation decisions, quality control specifications, and mechanistic studies with confidence.
It measures how probe gases bind to metal surfaces to determine dispersion, active surface area, and site density of supported metal catalysts.
The adsorbate must match the metal system (e.g., H₂ for Ni/Pt, CO for Pt/Fe). Wrong selection can cause spillover or incorrect uptake values.
Temperature controls whether full surface coverage is achieved. Too low gives incomplete adsorption; too high can cause side reactions like CO disproportionation or carbonyl formation.
It is the ratio between adsorbed molecules and surface metal atoms. It is needed to convert uptake data into dispersion or surface area.
Because CO can bind in different geometries (linear, bridged, multidentate), depending on metal type, particle size, and surface structure.
