Understanding Temperature-Programmed Reduction (TPR): Parameters and Profiles

Download PDF

Temperature-programmed reduction (TPR) is a powerful technique for obtaining direct information on the reducibility of catalysts and catalyst precursors. It is widely used to characterize a variety of catalyst materials. In a typical TPR experiment, the sample is exposed to a flowing mixture of a reducing agent—such as hydrogen diluted in an inert gas—while the temperature is increased linearly. The consumption rate of the reducing agent is continuously monitored and correlated to the reduction behavior of the sample.

Figure 1 presents a representative TPR profile for a 10% NiO/SiO₂ catalyst using a 10% H₂/Ar gas mixture at a flow rate of 30 mL/min and a linear heating rate of 20 K/min. The resulting profile provides insights into both the ease of reducibility (indicated by the temperature at the reduction peak maximum) and the extent of reducibility (reflected by the signal area).

A comprehensive description of TPR methodology can be found in Temperature-Programmed Reduction for Solid Materials Characterization by A. Jones and B.D. McNicol (Marcel Dekker, Inc., 1986).

However, comparing TPR results across different laboratories or literature reports can be challenging. No universally accepted experimental parameters exist for TPR experiments. Variables such as heating rate, reducing gas composition, flow rate, and particle size can all significantly influence the reduction profile.

This Altamira Note explores the impact of key experimental parameters on TPR results.

Monti and Baiker [1] developed an equation that relates the peak temperature (Tm) to the linear heating rate and hydrogen concentration for a first-order reduction process, as follows:

where:
Tm is the temperature at maximum signal;
[H₂] is the average hydrogen concentration;
rT is the linear heating rate;
Ea is the activation energy of reduction;
R is the gas constant; and
A is a pre-exponential factor.

This equation predicts a decrease in Tm with increasing hydrogen concentration and with decreasing heating rate. It also predicts that the observed temperature maximum is independent of flow rate—a prediction that is not supported by experimental observations.

The primary value of this equation lies in its ability to compare data obtained under different conditions. For example, Gentry and coworkers [2], in a study of CuO, determined Ea to be approximately 67 kJ/mol. Using a flow rate of 20 mL/min, a heating rate of 6.5 K/min, and an H₂ partial pressure of 0.1, they observed Tm = 280ºC. Applying their results to equation (1), it becomes possible to predict Tm for other experimental conditions. Figure 2 illustrates how the predicted Tm for CuO would vary with different hydrogen concentrations and linear heating rates according to equation (1).

The effects of flow rate are more complex and less easily predicted. Intuitively, one would expect Tm to decrease with increasing flow rate, and this trend is confirmed in the literature. Monti and Baiker [1] observed a decrease in Tm of 15°C for supported NiO when the total flow rate was increased from 30 mL/min to 60 mL/min. Similarly, in TPR studies of CuO using 5% H₂ and a heating rate of 20 K/min, increasing the flow rate from 30 mL/min to 80 mL/min resulted in a Tm decrease of 15°C. As a general guideline, a doubling of the flow rate typically results in a Tm decrease of approximately 10–20°C.

Because TPR is a bulk process, not all particles are exposed to the reducing gas simultaneously, making Tm dependent on particle size. However, predicting this dependence is complicated by the specific reduction mechanism involved. Lemaitre [3] examined this dependence across different reduction mechanisms, highlighting two that are especially relevant for catalysis:

• Phase-boundary-controlled reduction, typical of bulk oxides, and
• Nucleation-controlled reduction, typical of supported metals.

Interestingly, the predicted relationship between Tm and particle size varies with the reduction mechanism. For bulk oxides, Tm increases with particle size, whereas for supported metals, Tm decreases as particle size increases.

These various factors—and their combined effects on the TPR profile—are summarized in Figure 3. All should be carefully considered when comparing data from different laboratories or experimental setups.

References

• A.M. Monti and A. Baiker, J. Catal.83, 323 (1983).
• J. Gentry, N.S. Hurst, and A. Jones, J. Chem. Soc., Faraday Trans. I75, 1688 (1979).
• L. Lemaitre, in Characterization of Heterogeneous Catalysts, F. Delannay (Ed.), Marcel Dekker, Inc.

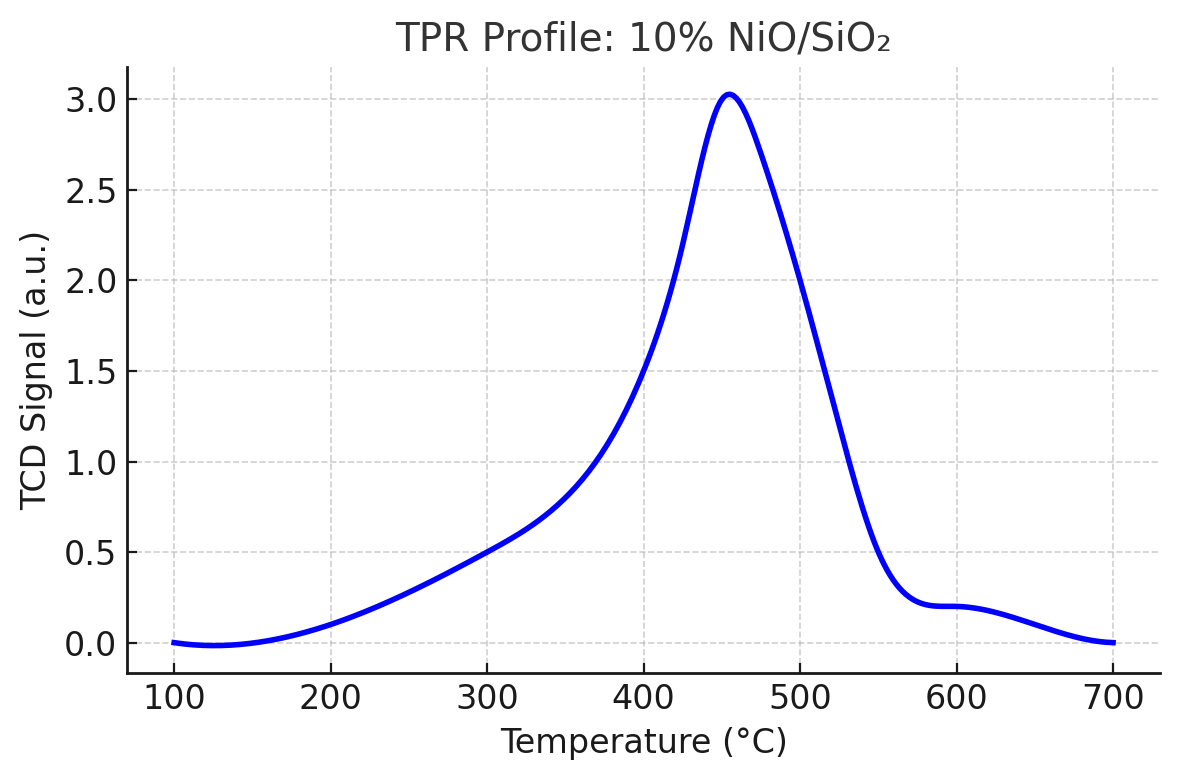

Figure 1. Temperature-programmed reduction (TPR) profile of a 10% NiO/SiO₂ catalyst (10% H₂/Ar, 30 mL/min, heating rate 20 K/min).

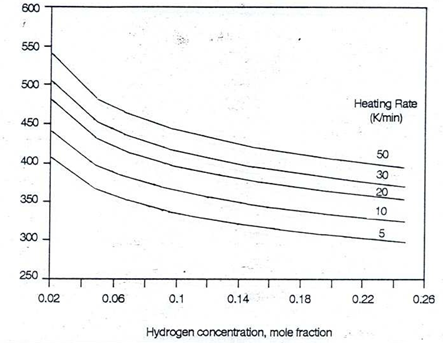

Figure 2. Effect of hydrogen concentration and heating rate on predicted Tm for CuO

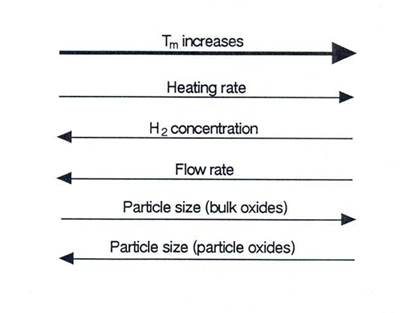

Figure 3. Relationship between experimental parameters and the observed Tm in TPR experiments.
