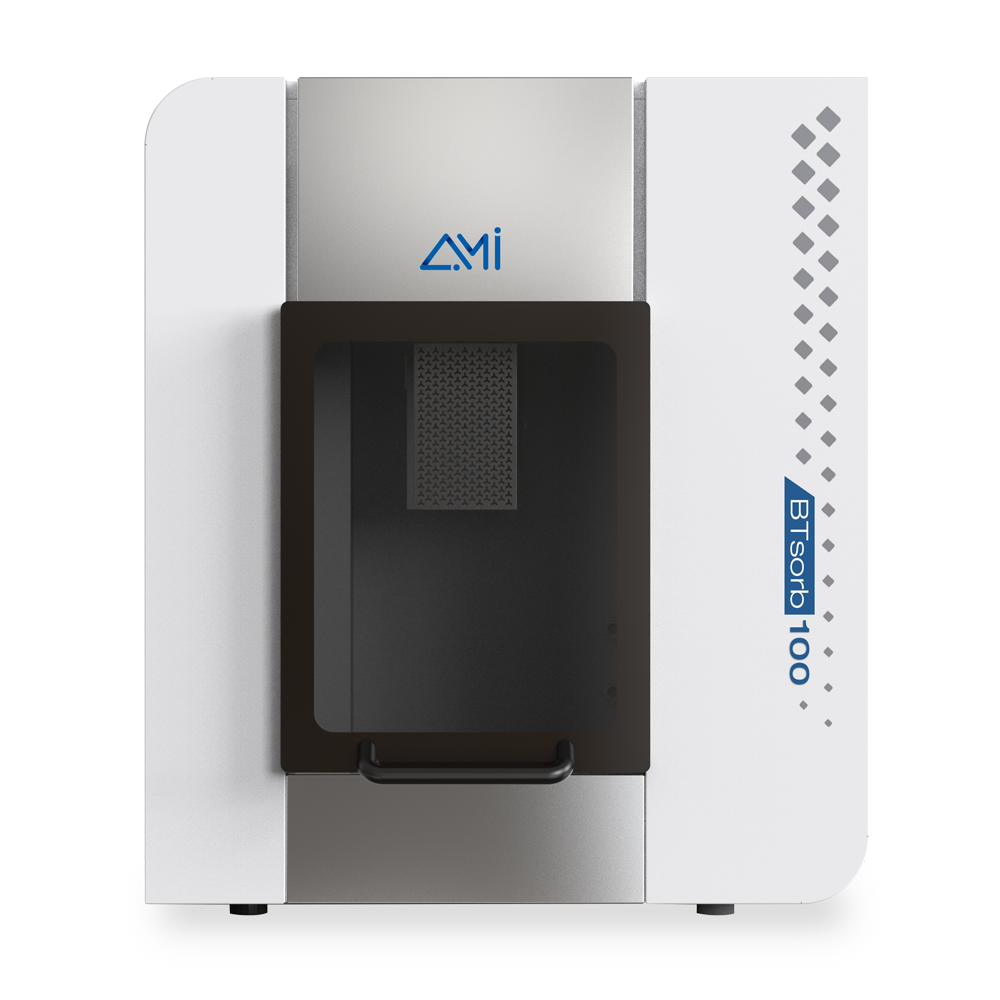

BTsorb 100 Series

INTRODUCTION

The BTsorb 100 series is a new line of cost-effective material characterization instruments designed for breakthrough curve testing, competitive adsorption, and mass transfer kinetics analysis. It is a comprehensive, versatile, and precise dynamic sorption analyzer.
• Accurate: Trusted results you can rely on.
• Accessible: Cost-effective without compromise.
• Advanced: Engineered for high-performance.

Brochure

Get in touch

BTsorb 100 series

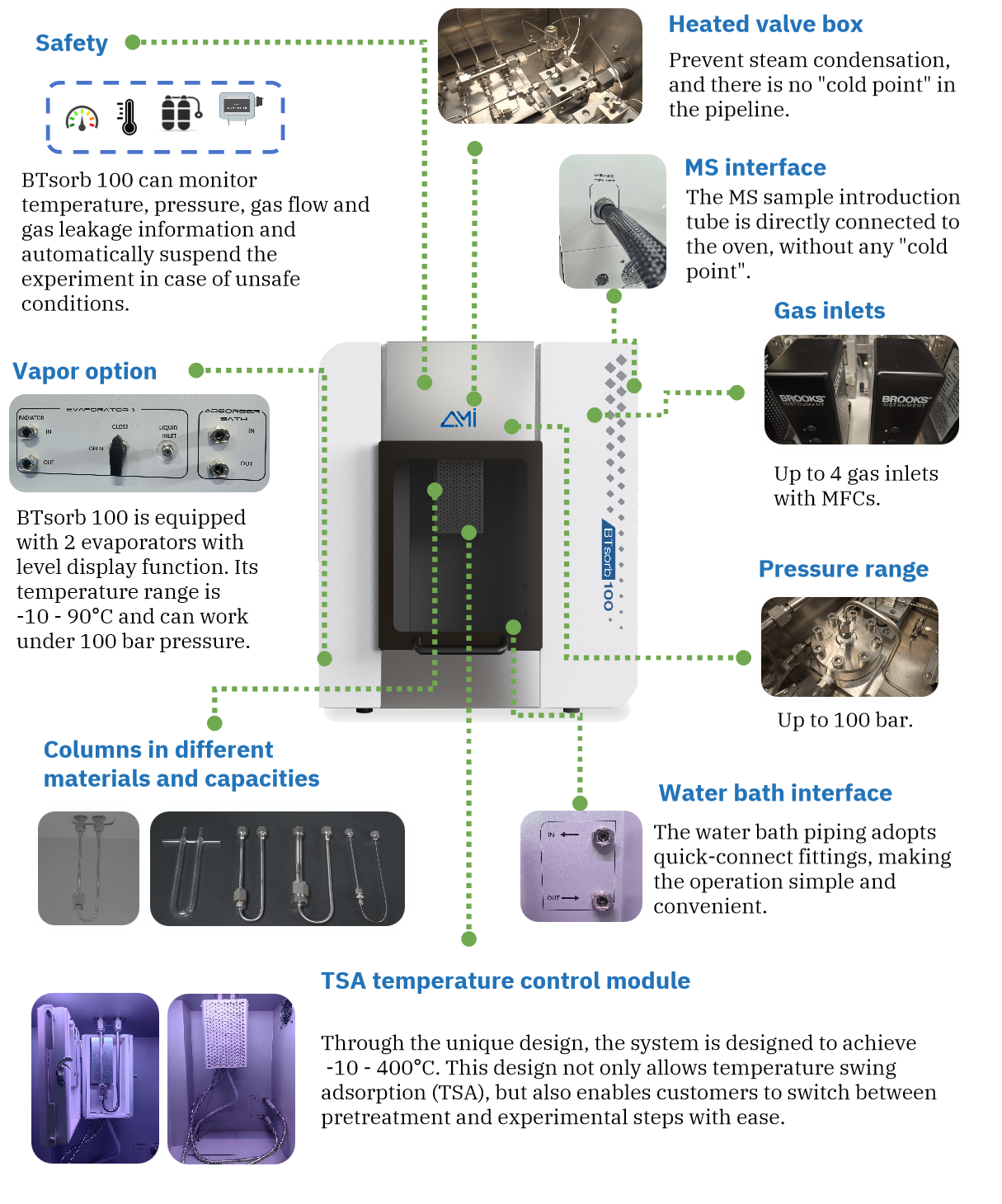

FEATURE

CAPABILITIES

The BTsorb 100 offers 5 modes for breakthrough curve and competitive adsorption analysis, enabling dynamic evaluation of gas or gas/vapor mixture separation. It also includes 2 dedicated modes for diffusion studies using chromatography and the zero-length column method.

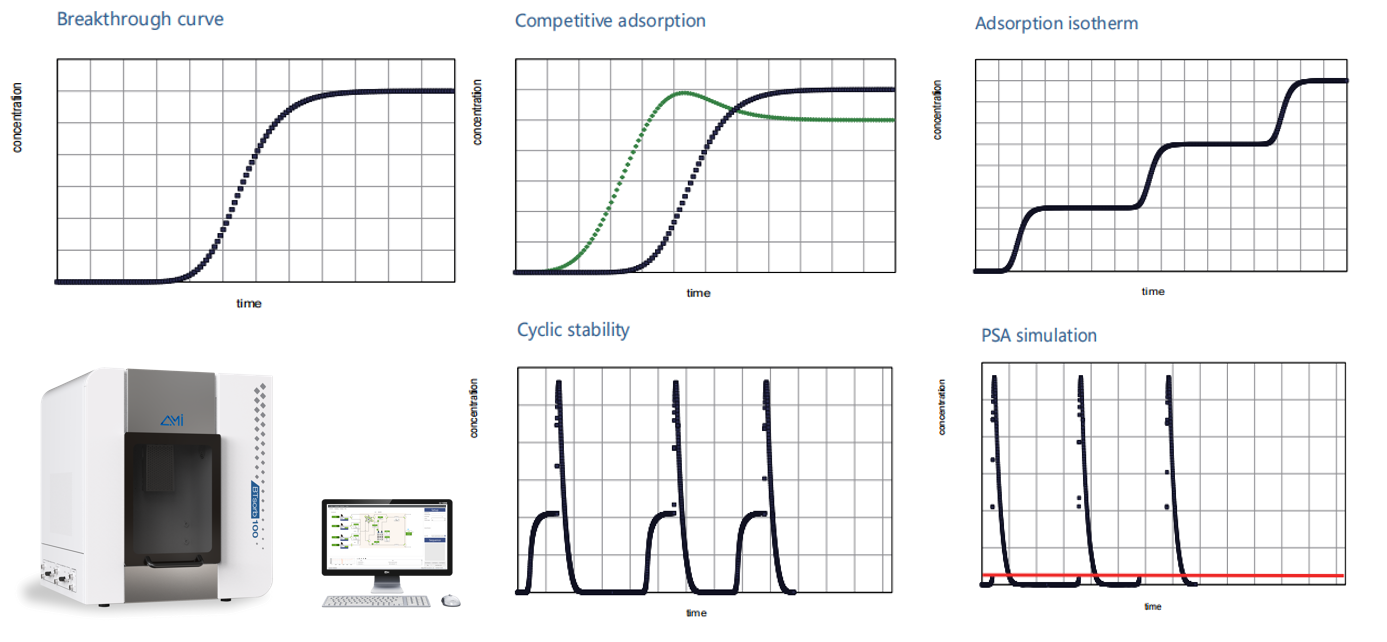

5 Modes for Breakthrough Curve & Competitive Adsorption:

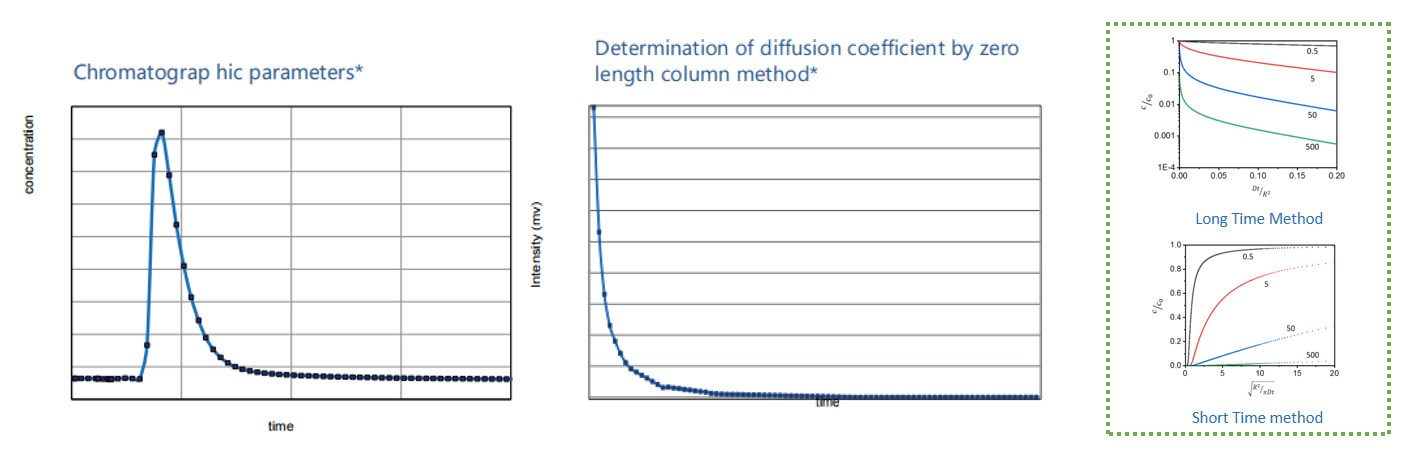

2 Modes for Diffusion Coefficients:

SOFTWARE

BTManager is a user-friendly software platform that enables precise control of all experimental processes, while automatically recording data and calculating test results. It offers a range of features designed to simplify and support user operation.
√ In addition to standard procedures, the software allows full customization of experimental steps to meet specific testing requirements.
√ All experimental steps and data are automatically recorded, making it easy for users to review and analyze results.
√ As part of a fully automated system, BTManager enables conditional controls based on time, temperature, pressure, and detector signals—ensuring precise execution, repeatability, and accuracy.
√ Includes advanced features such as blank adsorption correction, true flow calibration, abnormal data detection, and TCD signal calibration—minimizing environmental and system influences for highly reliable results.

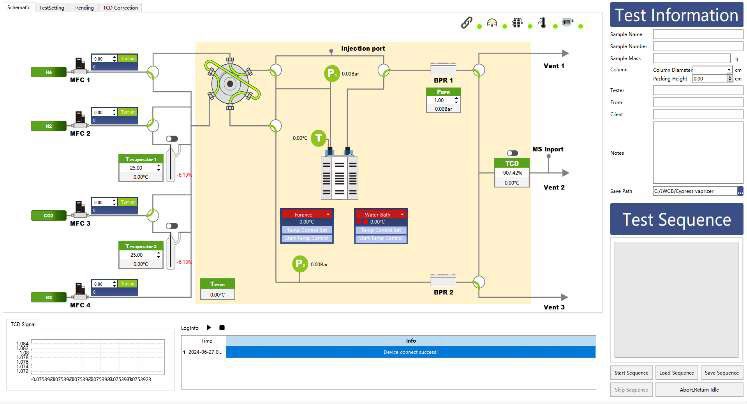

Control interface

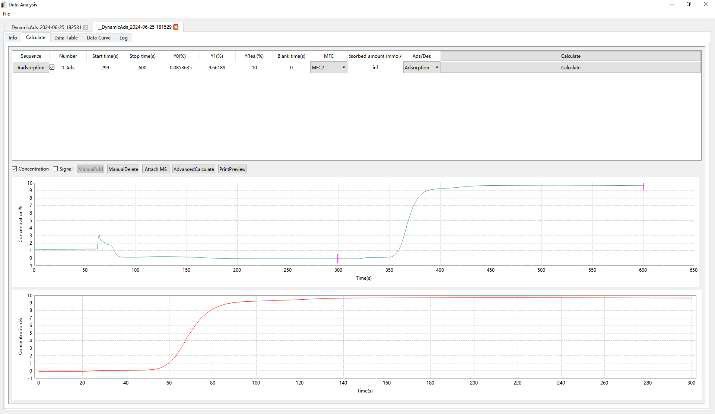

Data analysis interface

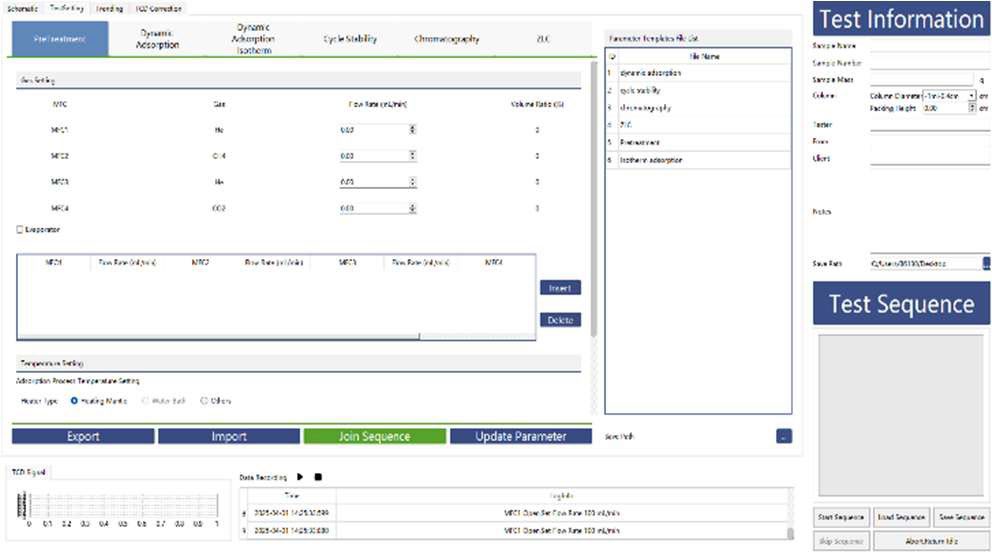

Experimental parameter setting interface

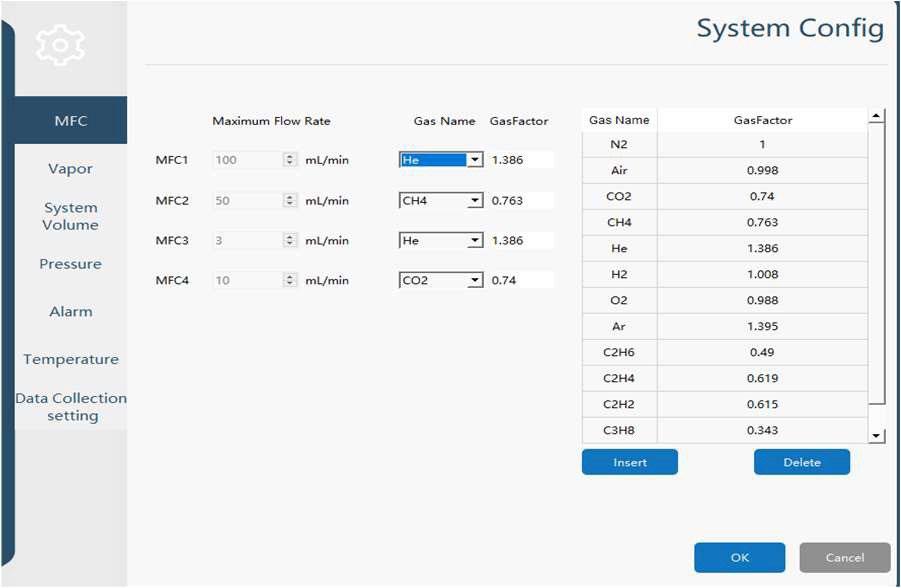

System configuration interface

APPLICATION

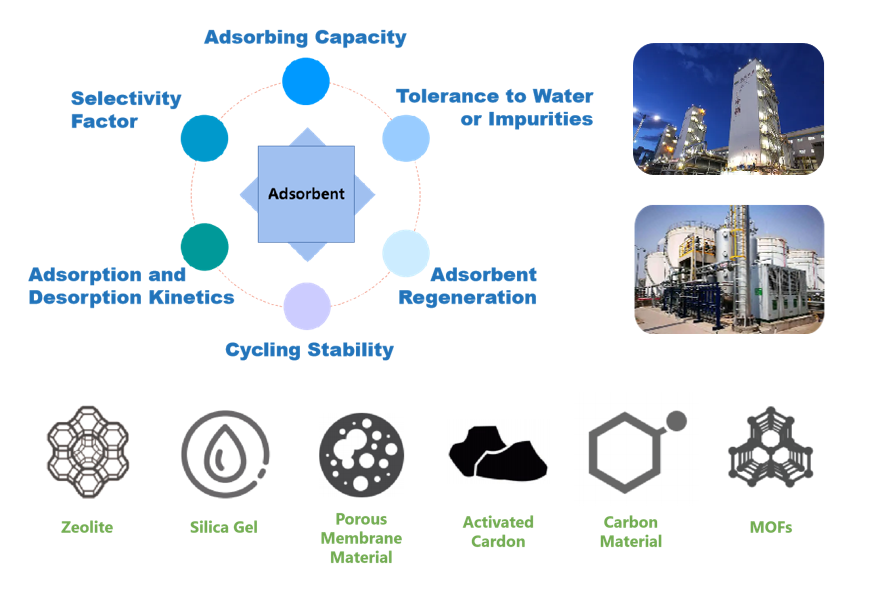

The BTsorb 100 series is primarily used to evaluate the adsorption and separation properties of porous materials. Common samples include MOFs, zeolites, silica gels, activated carbons, and other functional adsorbents. These materials are widely applied in processes such as gas separation purification, and CO₂ capture, The BTsorb 100 meets the broad range of dynamic sorption analysis needs for these applications.

SPECIFICATIONS

BTSorb 100 Series	Breakthrough Curve and Mass Transfer Analyzer			Breakthrough Curve Analyzer
Model	100S Pro	100SLP Pro	100SMP Pro	100S	100SLP	100SMP	100SHP
Breakthrough Curve	√	√	√	√	√	√	√
Competitive Adsorption	√	√	√	√	√	√	√
Adsorption Isotherm	√	√	√	√	√	√	√
Cyclic Stability	V	V	V	V	V	V	V
Temperature Swing Adsorption	√	√	√	√	√	√	√
Pressure Swing Adsorption	/	√	√	/	√	√	√
Diffusion Coefficient	√	√	√	/	/	/	/
Pressure Range	Atmospheric	Atm -10 bar	Atm -40 bar	Atmospheric	Atm -10 bar	Atm -40 bar	Atm -100 bar
MFCs	4 MFCs (1 carrier + 3 adsorbate)
Gas Inlets	Standard 4 ports(expandable with MGC-option)
Vapor Dosing	Up to 2 vapor generators(temperature control -10°C to 90°C)
Temperature Control	Standard: Heating module: Ambient - 400 °C; Circulating water bath: -10 - 90°C; Option: Heating furnace: Ambient -1000°C; (Continuous temperature control from -10°C to 400°C can be achieved through the combined use of heating module and circulating water bath)			Standard: Heating module: Ambient - 400 °C; Option: Circulating water bath: -10 - 90°C; Heating furnace: Ambient - 1000°C; (Continuous temperature control from -10°C to 400°C can be achieved through the combined use of heating module and circulating water bath)
Detector	Standard: High precision Thermal Conductivity Detector (TCD) Option: Mass spectrometer (100amu - 200/300 amu optional)
Column	Standard: 1 ml and 4 ml 316SS Option:1ml and 4ml quartz; column for ZLC
Corrosion Resistance	Standard: Corrosion-resistant TCD Option: Sulfur-resistant corrosion protection gas path upgrade, passivation treatment of fittings and tubing is mainly used for sulfur - containing gases (such as H₂S) and scenarios with high - concentration of corrosive gases.
Air Compressor	Used to drive pneumatic valves (option)
Appearance Parameters	L 31.9 in (810 mm) × W 31.1 in (790 mm) × H 34.6 in (880 mm), 330 lbs (150 kg)
