Matrix 1000 Series

● Configure mesopore, micropore, or mixed-mode stations in a single unit.
● Run simultaneous, independent analyses without cross-interference.
● Expand modularly to a total of up to 3 connected units (12 stations).

BROCHURE
GET IN TOUCH
BUILD YOUR MATRIX

Product Overview

Introduction

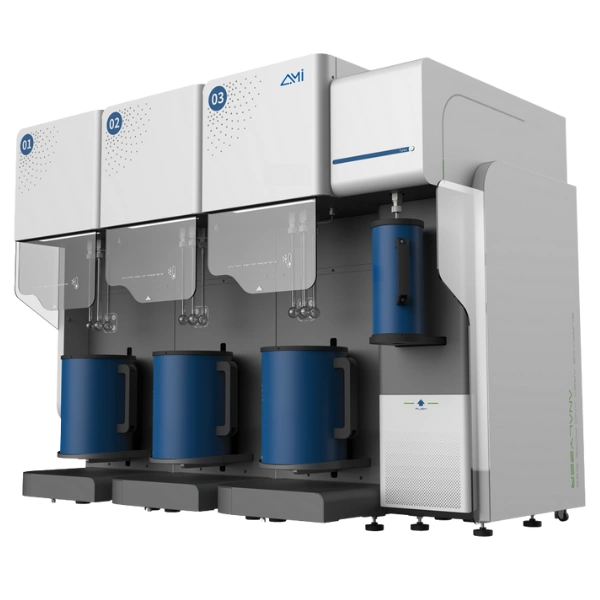

The Matrix 1000 is a next-generation gas sorption analyzer platform engineered for laboratories demanding flexible configuration, high throughput, and precision micropore resolution. Each unit supports up to four independently operated analysis stations, giving users the freedom to design the system around their specific applications.

The system is ideal for research centers, QC labs, and advanced materials teams who require reliable, scalable, and highresolution data for gas adsorption and pore characterization.

Key measurement capabilities include BET, Langmuir, BJH, DFT, HK, SF, MP, DR, T-Plot, isotherms, and heat of adsorption. Surface area can be measured down to 0.05 m2/g (mesopore) and 0.0005 m2/g (micropore), with pore sizes from 0.35 to 500 nm resolved with high precision.

The Matrix 1000 empowers users to:

• Configure mesopore, micropore, or mixed-mode stations in a single unit
• Run simultaneous, independent analyses without cross-interference
• Scale up or specialize based on research demands
• Customize precision sensor packages to match experimental needs
• Expand modularly to a total of up to 3 connected units (12 stations) for maximum throughput and flexibility

Key measurement capabilities include BET, Langmuir, BJH, DFT, HK, SF, MP, DR, T-Plot, isotherms, and heat of adsorption.

Surface area can be measured down to 0.05 m2/g (mesopore) and 0.0005 m2/g (micropore), with repeatability ≤1.0% RSD. Pore sizes from 0.35 to 500 nm are resolved with repeatability as fine as 0.02 nm (high-res micropore).

Features

Software

Specifications

Station Configuration Options

Features

Multi-Station Architecture

Run up to four fully independent analysis stations per unit—each with dedicated dosing, pressure control, and data acquisition. Scale up to 12 stations by connecting three Matrix 1000 units. Ideal for high-throughput labs and multi-user environments.

Micropore & Mesopore Flexibility

Configure any combination of micropore or mesopore analysis stations based on your application needs. High-resolution pressure sensors—down to 0.1 Torr—enable accurate characterization of ultrafine pores, while broader pressure ranges allow robust mesopore and macropore analysis.

Smart Safety & Status System

The Matrix 1000 is built for safe, intuitive operation. Each work unit includes multicolor LED indicators for quick visualization of instrument status:
• White – Standby
• Orange – Heating
• Green – Test in Progress
• Red – Alarm Condition
Real-time monitoring of pressure and temperature ensures that any anomaly automatically triggers an alarm, switches the unit to red warning status, and halts the experiment for safety. A retractable front safety shield protects users from cryogenic splashes during operation.

Smart Degassing with Pressure Feedback

The Matrix 1000 system continuously monitors vacuum pressure during degassing and compares it to user-defined stabilization thresholds. This intelligent feedback mechanism automatically detects when activation is complete, improving reproducibility and avoiding over- or undertreatment of samples.

Advanced Gas Dosing

Each analysis station features dedicated dosing and evacuation control for independent test execution. The system supports both pressure-based and volumebased dosing, with user-selectable options for quantitative or constant-pressure dosing. Smart sequencing ensures efficient dosing across multiple stations while avoiding gas cross-talk so that each station can run a different test (i.e. BET, isotherm), but with the same adsorbate.

Integrated Degassing Furnace

Every Matrix 1000 unit includes one built-in, high-temperature degassing furnace with programmable ramp/soak control and realtime pressure feedback—no external systems required. For high-volume workflows, pair with an external Prep Series degasser for bulk pre-treatment, using the built-in unit for final polishing prior to analysis.

Harsh Chemistry Option

Equipped with a passivation coating and seals upgraded to FFKM for aggressive or corrosive chemistries.

Software

The Matrix 1000 system is powered by the intuitive APAS software platform, designed to streamline multi-station control and deliver high-quality sorption results across a single unit or a full 12-station network.

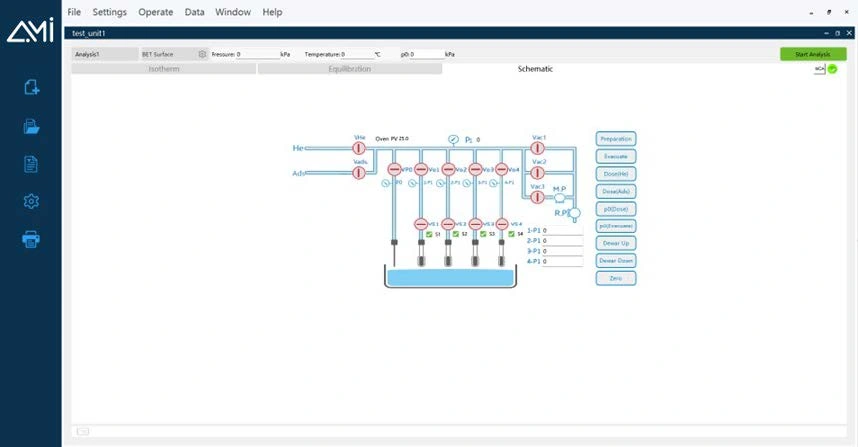

Matrix 1000 Main Dashboard

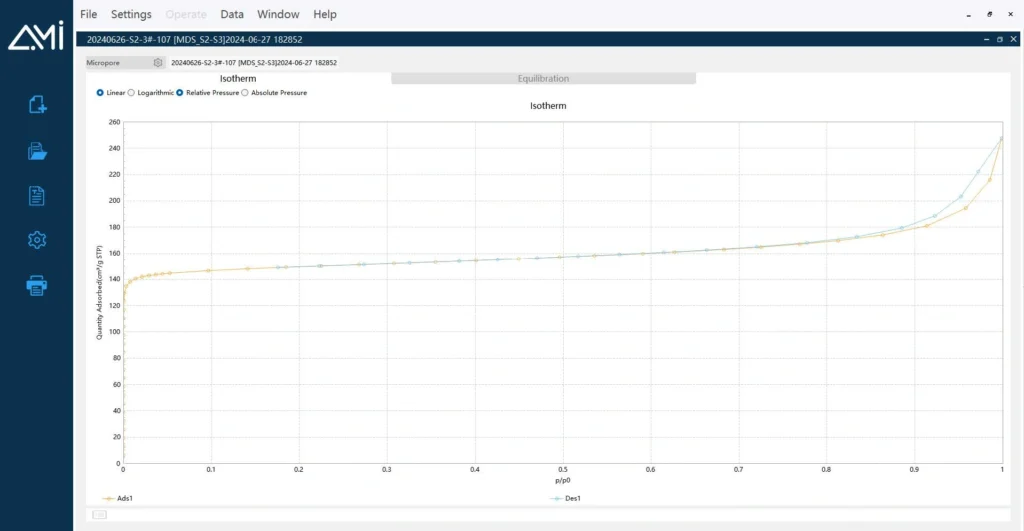

Nitrogen adsorption–desorption isotherm of a BAM-certified zeolite

Flexible Multi-Station Workflow – Configure, launch, and monitor multiple experiments independently from a unified interface, with real-time status indicators for full test visibility.

Intelligent Sample Preparation – Built-in pressure monitoring during degassing ensures consistent activation, with automatic detection of stabilization based on user-defined thresholds.

Comprehensive Data Modeling – Supports BET, Langmuir, BJH, t-Plot, HK, DFT, NLDFT, and other models for accurate surface area and pore size analysis of micro- and mesoporous materials.

Visualization & Reporting Tools – Overlay isotherms, track kinetics, and generate Excel or PDF reports with curves, metadata, and calculation results for easy comparison and documentation.

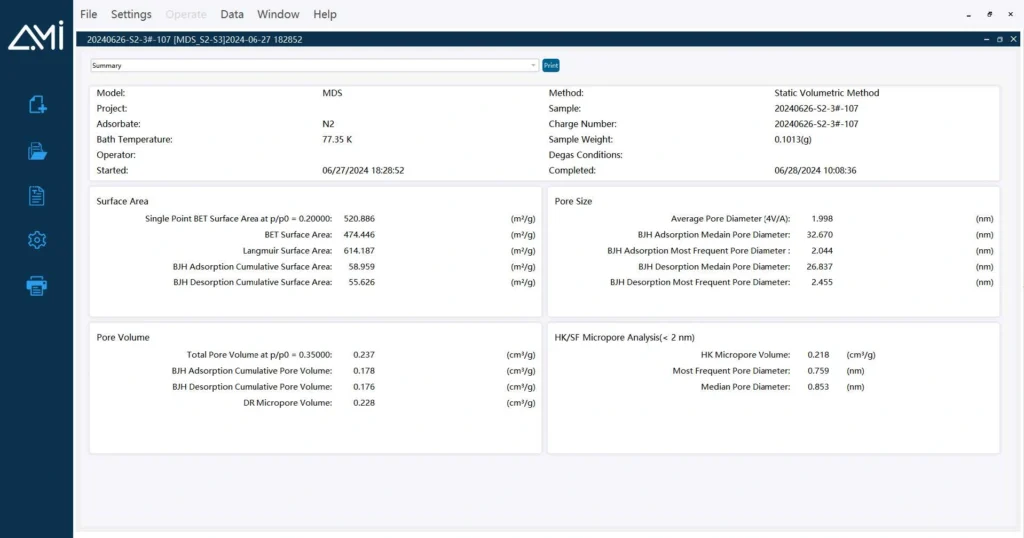

Summary Data Reduction Screen of a BAM-certified Zeolite

Specifications

CategorySpecification
Model Options1, 2, or 3 analysis units (up to 12 ports total)
Analysis Ports per UnitUp to 4
Measurement CapabilitiesBET (single and multi-point), Langmuir, BJH, STSA, t-plot, DFT, NLDFT, HK, SF, MP, DR, DA, Isotherms, Heat of Adsorption, Total Pore Volume, Adsorption Kinetics
Pore Volume Resolution≥ 0.0001 cm³/g
Pressure Range (P/P0)10⁻⁴ to 0.998 (meso); 10⁻⁸ to 0.998 (High Res micropore)
P0 Transducers1 per unit, 1000 Torr, 0.25% FS
Degassing PortsIn-situ – 4 / 8 / 12 (based on configuration)
Degassing Temp (Max)400°C ±1°C (active cooling included)
Degassing Ramp ControlYes – programmable ramp and soak
Degas Pressure MonitoringYes – user-defined thresholds
Vacuum SystemMechanical: 10⁻¹ Pa; Optional Turbo: 10⁻⁸ Pa
Temperature ControlAir bath + valve box; Max 45°C ±0.1°C
Gas CompatibilityN₂, CO₂, Ar, Kr, H₂, O₂, CO, CH₄ (non-corrosive gases); Optional: Harsh Chemistry model with passivation coating and FFKM seals
Vapor Sorption OptionAvailable
Dewar Capacity3L
BET Throughput4 samples / 5-point BET <~40 min fully optimized
Dosing & Equilibrium ControlSupports user-defined pressure tables and quick-start templates. Gas is introduced stepwise to target relative pressures, with adsorption equilibrium determined by pressure stability over a fixed time window.
Cold Space CalibrationAutomatic
Station IndependenceFour workstations per unit; independent test types with same adsorbate. Synchronized start/finish with alternating gas dosing. Independent dosing, vacuum, and control per station.
SoftwareAPAS software with analysis models, leak detection, and vacuum diagnostics
Data ExportExcel, TXT, RAW, PDF; full reprocessing supported
Gas Inlet Ports2 per unit (Helium and Adsorption Gas); expandable to 18
Power Requirements220 VAC, 16 A
Dimensions (L × W × H)27.6 × 27.6 × 41.3 in (70 × 70 × 105 cm)
Weight242 lbs (110 kg)
ComplianceCE, EMC, RoHS

Station Configuration Options

Each Matrix 1000 unit includes one dedicated degas furnace and offers flexible station-level sensor configurations. Total sensors listed include Ps, P0, and degas pressure monitoring sensors.

ConfigurationAnalysis TransducersTotal Transducers
4x Mesopore1000 Torr on each station6
1x Micropore1000, 10, 1 Torr5
1x Micropore (High Res)1000, 10, 0.1 Torr5
2x Micropore1000, 10, 1 Torr on each8
2x Micropore (High Res)1000, 10, 0.1 Torr on each8
3x Micropore1000, 10, 1 Torr on each11
3x Micropore (High Res)1000, 10, 0.1 Torr on each11
4x Micropore1000, 10, 1 Torr on each14
4x Micropore (High Res)1000, 10, 0.1 Torr on each14
1x Mesopore + 3x MicroporeMeso: 1000 Torr; Micro: 1000, 10, 0.1 Torr12
2x Mesopore + 2x MicroporeMeso: 1000 Torr; Micro: 1000, 10, 0.1 Torr10
3x Mesopore + 1x MicroporeMeso: 1000 Torr; Micro: 1000, 10, 0.1 Torr8

MATRIX 1000 MESO -VS- MICRO

CategoryMesoporeMicropore
Surface Area Range≥ 0.05 m²/g (RSD ≤ 1.0%)≥ 0.0005 m²/g (RSD ≤ 1.0%) with Krypton
Pore Size Range2–500 nm
Repeatability ≤ 0.2 nm		0.35–500 nm
Repeatability ≤ 0.02 nm
Cold TrapOptionIncluded
Analysis Pressure Sensors1000 Torr (0.05% FS)1000, 10, 1, 0.1 Torr (optional)
1000 Torr: 0.05% FS
10 Torr: 0.2% RDG
1 Torr: 0.2% RDG
0.1 Torr: 0.5% RDG
