Research on the Application of Breakthrough Curve Analyzers in Liquid Adsorbents for CO2 Capture

. Introduction

Reducing atmospheric CO₂ concentrations remains one of the most pressing challenges in climate science and industrial decarbonization. Carbon Capture and Storage (CCS) has emerged as one of the most effective approaches for mitigating CO₂ emissions, with several core technologies under active development: membrane separation, solid adsorption, and liquid absorption.

Membrane separation relies on the selective permeation of gas molecules through materials such as inorganic or organic polymer membranes. Inorganic membranes (e.g., molecular sieves, porous ceramics) offer excellent chemical and thermal stability, but tend to have higher material and processing costs. Organic polymer membranes, while more economical, are limited by thermal

sensitivity, which restricts their use in high-temperature CO₂ capture scenarios.

Solid adsorption captures CO₂ through interactions between gas molecules and the surface of porous materials. Two mechanisms are possible:

• Physical adsorption, driven by van der Waals forces, typically results in lower heat of adsorption and capacity but offers easier regeneration. Common adsorbents include activated carbon, zeolites, mesoporous silica, and metal-organic frameworks (MOFs).
• Chemical adsorption involves stronger interactions through electron transfer or bonding at basic surface sites, offering higher selectivity and greater adsorption heat. Materials such as lithium salts, metal oxides, and chemically modified porous solids are frequently used.

Liquid absorption can also be divided into physical and chemical categories.

• Physical solvents like Selexol (polyethylene glycol dimethyl ether) and Rectisol (methanol) dissolve CO₂ without chemical reaction, providing good performance at low temperatures with relatively low energy consumption.
• Chemical solvents, typically alkaline solutions such as ammonia, NaOH, KOH, or amine-based compounds, react with CO₂ to form carbonates, bicarbonates, or carbamates. These reactions are reversible under specific conditions, enabling CO₂ capture and release.

While chemical solvents offer high capacity and fast absorption rates, several legacy solutions (e.g., KOH and ammonia) face challenges related to equipment corrosion, volatility, and handling safety. Today, amine-based absorbents are the most widely used due to their favorable balance of reactivity, efficiency, and scalability in industrial CO₂ capture.

2. Reaction Mechanism

Organic amines, commonly used in chemical CO₂ absorption systems, contain hydroxyl (–OH) and amino (–NH₂, –NHR, –NR₂) functional groups. The hydroxyl group improves water solubility, while the amino group increases the solution’s pH, enhancing alkalinity and CO₂ absorption potential.

The fundamental mechanism is an acid-base neutralization reaction, in which the weakly acidic CO₂ reacts with basic amines to form a water-soluble salt. This reaction is temperature-dependent and reversible:

• CO₂ absorption occurs at lower temperatures (30–60 °C)
• Desorption (release of CO₂) occurs at higher temperatures (90–120 °C)

Amine Classification and Reactivity

Organic amines are classified by the number of hydrogen atoms substituted on the nitrogen:

• Primary amines (–NH₂): e.g., monoethanolamine (MEA)
• Secondary amines (–NHR): e.g., diethanolamine (DEA), diisopropanolamine (DIPA)
• Tertiary amines (–NR₂): e.g., N-methyldiethanolamine (MDEA)

The binding strength of CO₂ with these amines generally follows the order:

Primary > Secondary > Tertiary

Primary and Secondary Amines: Carbamate Formation

The widely accepted zwitterion mechanism (Caplow, Danckwerts) describes a two-step reaction:

1. Formation of Zwitterion Intermediate
   CO₂ + R₁R₂NH ⇌ R₁R₂NH⁺–COO⁻
2. Deprotonation by a Base (B)
   R₁R₂NH⁺–COO⁻ + B ⇌ BH⁺ + R₁R₂NCOO⁻

Here, the zwitterion reacts with a base (e.g., amine, OH⁻, or H₂O) to form a carbamate. The strong C–N bond in the carbamate makes the product highly stable, but also leads to:

• Reduced CO₂ loading capacity
• Higher regeneration energy requirements
• Slower desorption rates

Maximum loading for primary/secondary amines is typically 0.5 mol CO₂ per 1 mol amine.

Tertiary Amines: Bicarbonate Formation

Unlike primary and secondary amines, tertiary amines lack reactive hydrogen atoms and do not form carbamates. Instead, they enhance CO₂ hydration and facilitate bicarbonate formation:

1. CO₂ + H₂O ⇌ H⁺ + HCO₃⁻
2. H⁺ + R₁R₂R₃N ⇌ R₁R₂R₃NH⁺

This route results in:

• Slower absorption rates
• Lower capacity

2.1 Mass Transfer Mechanism of CO₂ Absorption

The mass transfer process involved in CO₂ absorption is commonly described using the two-film theory, first proposed by Whitman and Lewis. This model divides the gas–liquid interface into five distinct regions (see Figure 1):

The mass transfer process involved in CO₂ absorption is commonly described using the two-film theory, first proposed by Whitman and Lewis. This model divides the gas–liquid interface into five distinct regions (see Figure 1):

1. Bulk gas phase
2. Gas film (a stagnant boundary layer near the gas side)
3. Gas–liquid interface
4. Liquid film (a stagnant boundary layer near the liquid side)
5. Bulk liquid phase

In the bulk gas and liquid phases, turbulence is typically high, ensuring uniform composition. However, as the gas and liquid phases approach the interface, they pass through their respective stagnant film layers, where molecular diffusion becomes the dominant transport mechanism.

The CO₂ absorption sequence follows these steps:

• CO₂ diffuses from the bulk gas phase to the gas film surface
• It then moves across the gas film by molecular diffusion
• At the gas–liquid interface, CO₂ dissolves into the liquid
• The dissolved CO₂ diffuses through the liquid film
• Finally, it enters the bulk liquid phase, where the chemical reaction with the solvent (e.g., amine) occurs

While the two-film theory is widely used and provides a useful conceptual framework, it does have limitations. In systems with free interfaces or high turbulence, the interface becomes unstable and continuously disrupted. Under these conditions, the assumption of two steady, well-defined stagnant films on either side of the interface becomes less accurate. In such cases, convective mixing and interfacial renewal models may offer better descriptions of the actual transport dynamics.

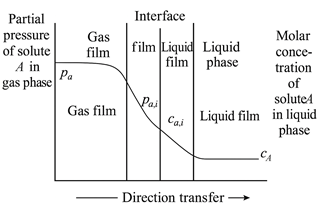

Figure 1 Schematic Diagram of the Two-Film Theory

2.2 Performance and Limitations of MEA-Based CO₂ Absorption

Monoethanolamine (MEA) is one of the most widely used absorbents for CO₂ capture. As a primary amine, MEA exhibits strong basicity and a low molecular weight, resulting in:

• High reactivity
• Rapid absorption kinetics
• High CO₂ capacity per unit mass
• Relatively low solvent cost

Due to these advantages, MEA-based absorption systems are commercially established and extensively deployed in both industrial and pilot-scale applications.

However, MEA is not without drawbacks. It has a high heat of reaction with CO₂, which translates to greater energy consumption during regeneration. MEA also tends to form stable amine carbonates and is prone to degradation when exposed to CO, sulfur compounds, or oxygen-containing gases, contributing to solvent loss and reduced operational efficiency.

Studies have shown that increasing MEA concentration improves CO₂ removal efficiency:

• At 18 wt%, CO₂ removal is ~91%
• At 30 wt%, it reaches ~96%
• At 54 wt%, removal can exceed 98%

The improved performance is attributed to both increased vapor pressure and reaction enthalpy, which raise the temperature of the absorption solution. However, higher concentrations come with trade-offs:

• Greater vaporization losses
• Higher corrosion risk
• Increased thermal degradation

For these reasons, MEA is most commonly used at ~30 wt% concentration, where performance and system stability are reasonably balanced. At higher concentrations, corrosion inhibitors are typically required.

Current research efforts are focused on:

• Enhancing thermal and oxidative stability
• Reducing energy consumption during regeneration
• Developing modified or blended amine formulations to optimize performance and minimize drawbacks

2.3 Enhancing CO₂ Capture with Mixed Amine Solutions

To further improve CO₂ absorption efficiency and reduce energy consumption, blended alkanolamine solutions have become a key focus in solvent development. This strategy combines amines with high absorption capacity but slower kinetics with those offering faster reaction rates but lower capacity, aiming to strike an optimal balance between performance and regeneration efficiency.

By carefully selecting and mixing complementary amines, it is possible to enhance both the absorption and desorption characteristics of the solvent system. One promising approach involves blending monoethanolamine (MEA) with piperazine (PZ).

Research by Zhang Yaping [10] demonstrated that adding PZ to MEA significantly improves overall performance:

• Absorption capacity increases with higher PZ content
• Regeneration energy requirements decrease due to enhanced desorption kinetics

At a total amine concentration of 2 mol/L, the MEA–PZ blend achieved a saturated CO₂ absorption capacity of 206.1 mL/L, with a desorption efficiency of 86.38%. These findings highlight the potential of mixed amine systems to outperform single-component solvents in industrial carbon capture applications.

To further optimize CO₂ capture performance, recent research has focused on composite alkanolamine systems—blends that combine the strengths of individual amines to improve overall absorption capacity, regeneration efficiency, and cycling performance. These mixed-solvent systems aim to balance fast kinetics, high capacity, and low energy consumption.

Key Findings from Recent Studies

• MEA–MDEA–PZ Blends
  Zhang et al. [11] evaluated the energy efficiency of a mixed amine system consisting of MEA, MDEA, and PZ. Their results showed a 15.22% to 49.92% reduction in energy consumption for CO₂ capture compared to MEA alone.
• MEA with Secondary and Tertiary Amines
  Zhang Yu et al. [12] compared the performance of MEA blended with DEA, TEA, and AMP under controlled conditions (99.5% CO₂, 40 °C water bath). Among the mixtures, MEA + AMP exhibited the best absorption performance, while MEA + TEA showed the weakest.
• MEA + DETA Mixtures
  Wen Juan et al. [13] found that increasing temperature, pressure, and DETA concentration improved both the CO₂ absorption capacity and rate of the MEA + DETA system.
• AMP, PZ, and MEA Blends
  NWAOHA et al. [14] observed that mixed systems containing AMP, PZ, and MEA demonstrated higher cycling capacity and initial desorption rates than MEA alone.
• Amine + Activator Systems
  Zhang Xinjun et al. [15] tested six combinations of alkanolamines (MEA, DEA, TEA) and activators (PZ, N-methylpiperazine [N-MPP], and aminoethylpiperazine [AEP]). The best performance was achieved using MEA as the main absorbent and AEP as the activator.
• AMP-Based Blends with MEA and AEP
  Xiao Kunru et al. [16] studied the impact of mixing AMP with MEA or AEP. Under conditions of 25 °C and 101 kPa:
  • A 5:5 AMP:MEA ratio yielded the best absorption results
  • A 7:3 AMP:AEP ratio showed faster desorption
  • While the AMP:MEA blend had a 2.558% higher absorption capacity and 1.587% faster absorption rate, its desorption rate was 18.52% lower than AMP:AEP

These studies demonstrate that composite amine systems can significantly improve CO₂ capture by combining complementary properties—such as fast kinetics, high loading capacity, and reduced regeneration energy. Mixed alkanolamine formulations represent a promising path forward in the design of next-generation absorbents for industrial-scale carbon capture.

In addition to modifying amine formulations through blending, recent research has explored the use of catalysts and nanoparticles to further enhance CO₂ absorption performance, improve regeneration efficiency, and reduce overall energy consumption.

Catalyst-Enhanced Amine Systems

Ali Saleh Bairq et al. [17] reported that incorporating SO₄²⁻/ZrO₂/SiO₂ into monoethanolamine (MEA) resulted in significant improvements:

• 36.48% reduction in regeneration energy consumption
• 35.1% increase in desorption rate

These results highlight the potential of heterogeneous acid-base catalysts to promote the reversibility of CO₂ absorption reactions in amine systems.

Nanoparticle-Modified Absorbents

Nanoparticles have also emerged as effective additives, enhancing mass transfer, absorption rate, and desorption efficiency. Li Wenya et al. [18] studied the impact of TiO₂ and graphene oxide (GO) nanoparticles on diethylaminoethanol (DEEA) and N-methyldiethanolamine (MDEA) systems.

Key results compared to MEA without nanoparticles include:

These nano-enhanced solvents demonstrated significant improvements in both absorption and regeneration metrics, offering a path to more efficient CO₂ capture processes.

Effect of Nanoparticle Size

Jiang et al. [19] compared the performance of 10 nm and 20 nm TiO₂ nanoparticles in MEA systems. While smaller particles offer higher surface activity, they are more prone to agglomeration, which can reduce effectiveness. In contrast, larger particles (20 nm) were found to more effectively disturb the mass transfer boundary layer, enhancing local mixing, concentration gradients, and overall mass transfer performance.

Incorporating catalysts or engineered nanoparticles into alkanolamine solutions is a promising direction for improving the kinetics, capacity, and energy efficiency of CO₂ capture systems. These additive-based approaches represent a valuable area of future research for next-generation absorbents.

3.0 Experimental Method

To study the CO₂ adsorption behavior of monoethanolamine (MEA), we conducted a series of experiments using the BTSorb 100 (formally MIX100) breakthrough curve and mass transfer analyzer on a commercially available MEA solution.

Test Procedure

1. Sample Preparation:
   10 mL of MEA solution was measured for testing. Repeatability was verified through multiple runs.
2. Gas Flow Setup:
   • Adsorbate gas: CO₂ at a flow rate of 15 mL/min
   • Carrier gas: N₂ at a flow rate of 185 mL/min
3. Temperature Control:
   The test was performed at a constant temperature of 40 °C. To eliminate interference from MEA vapor during measurement:
   • A condenser was installed at the outlet of the sample cell and maintained at 0 °C
   • A desiccant was placed in the cold trap to remove residual moisture from the gas stream

Experimental Conditions - Details of the test setup are summarized in Table 1 below.

Table 1 Experimental Conditions for Ethanolamine

• 10-1 (Re-adsorption):
  This test refers to a repeated CO₂ adsorption experiment performed after desorption. Regeneration was carried out by heating the sample cell to 120 °C. Once the CO₂ concentration at the outlet dropped below 0.5%, the adsorption process was repeated under the same conditions.
• 10-2 (Re-sampling):
  Represents an additional test performed by sampling fresh MEA solution under the same test conditions to assess repeatability.
• System Preparation:
  Prior to each experiment, the system was purged with nitrogen (N₂) at 185 mL/min to ensure complete removal of residual CO₂ from the setup.

As shown in Figure 2, the breakthrough curves from the 10-1 and 10-2 tests are nearly identical, demonstrating excellent repeatability of the experimental setup. However, the 10-1 (re-adsorption) curve exhibits a slightly shorter breakthrough time, indicating a marginal decrease in adsorption capacity following the regeneration cycle.

This result suggests that while MEA retains good performance after regeneration, some loss of adsorption efficiency may occur, likely due to incomplete solvent recovery or minor thermal degradation during the desorption process.

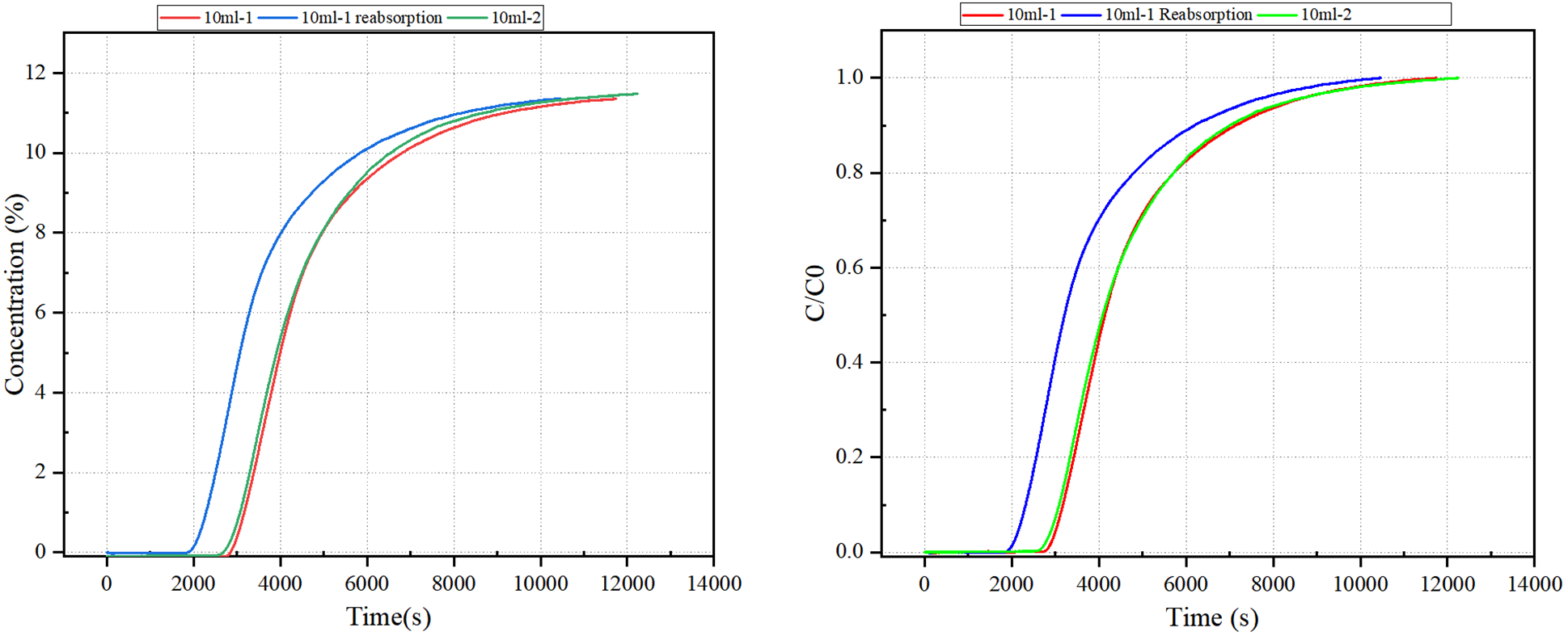

Figure 2 Breakthrough Curve of Ethanolamine MEA

Based on the calculated results presented in Table 2, the measured CO₂ adsorption capacities for the two 10 mL monoethanolamine (MEA) samples were 0.4875 mol/mol and 0.4822 mol/mol, respectively. These values are consistent with the commonly reported commercial MEA capacity of approximately 0.5 mol CO₂ per mol amine, validating the reliability of the test conditions and measurement approach.

Following desorption and re-adsorption (Test 10-1), the measured adsorption capacity decreased to 0.3875 mol/mol, indicating a notable decline in performance after regeneration. This reduction may be attributed to partial thermal degradation of MEA or incomplete recovery of active absorption sites during the desorption cycle.

Table 2 Calculated Adsorption Capacity Results for Ethanolamine MEA

4.0 Conclusions

This study demonstrates the viability of using monoethanolamine (MEA) as a chemical absorbent for CO₂ capture under ambient conditions. Through a combination of theoretical review and experimental validation using the BTSorb 100 (formally MIX100) breakthrough analyzer, MEA was shown to achieve CO₂ adsorption capacities consistent with commercial expectations (~0.5 mol/mol). While regeneration was successful, a decline in adsorption performance after the desorption cycle suggests some loss in efficiency, likely due to thermal degradation or incomplete solvent recovery.

The data confirms that MEA remains a strong candidate for CO₂ absorption systems, especially when optimized with temperature control and proper regeneration protocols. Future improvements may be achieved through blending with secondary or tertiary amines, use of corrosion inhibitors, or incorporation of nanomaterials and catalysts to reduce energy consumption and enhance cycling performance. These directions represent promising opportunities for scaling liquid-phase CO₂ capture in industrial applications.
